Working with 3DInspect

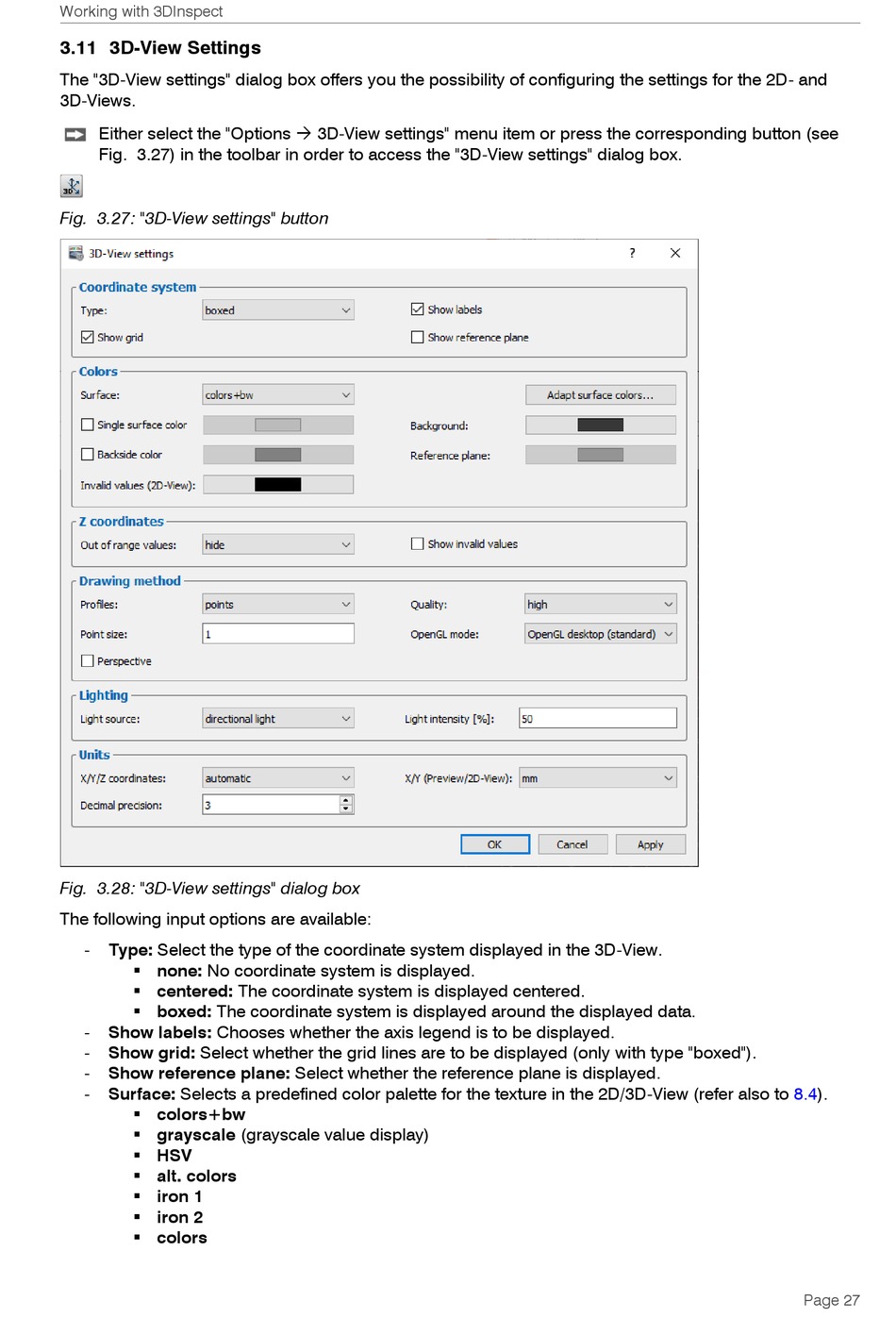

3.11 3D-View Settings
The "3D-View settings" dialog box offers you the possibility of configuring the settings for the 2D- and
3D-Views.
Either select the "Options  3D-View settings" menu item or press the corresponding button (see
Fig. 3.27) in the toolbar in order to access the "3D-View settings" dialog box.
Fig. 3.27: "3D-View settings" button
Fig. 3.28: "3D-View settings" dialog box
The following input options are available:
- Type: Select the type of the coordinate system displayed in the 3D-View.
 none: No coordinate system is displayed.
 centered: The coordinate system is displayed centered.
 boxed: The coordinate system is displayed around the displayed data.
- Show labels: Chooses whether the axis legend is to be displayed.
- Show grid: Select whether the grid lines are to be displayed (only with type "boxed").
- Show reference plane: Select whether the reference plane is displayed.
- Surface: Selects a predefined color palette for the texture in the 2D/3D-View (refer also to 8.4).
 colors+bw
 grayscale (grayscale value display)
 HSV
 alt. colors
 iron 1
 iron 2
 colors
