Description of the "Evaluation" View
6.2

Description of the Measuring Programs in the "Combine Objects" Group

In this group, you will find programs for relating previously found objects to one another.

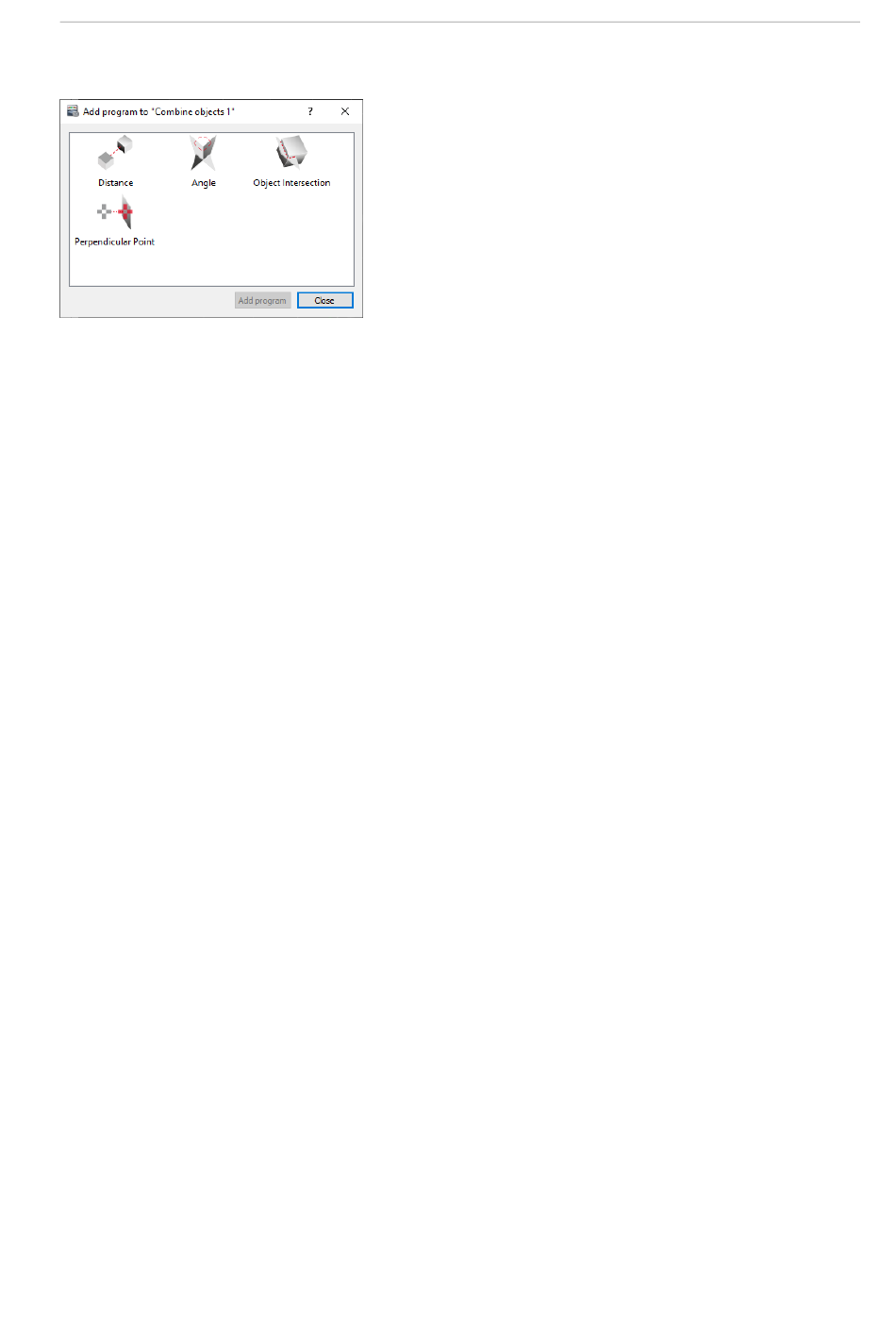

Fig. 6.12: "Combine objects" group
Measuring Programs in the "Combine Objects" Group:
-
Distance: Calculate the distance between two objects (see Chapter 6.2.1).
-
Angle: Calculate the angle difference between two objects (see Chapter 6.2.2).
-
Object Intersection: Calculate a new geometric object by intersection of two objects (see Chap-
ter 6.2.3).
-
Perpendicular Point: Calculate a point by an orthogonal projection from a point to a plane or a line
(see Chapter 6.2.4).
Page 107
