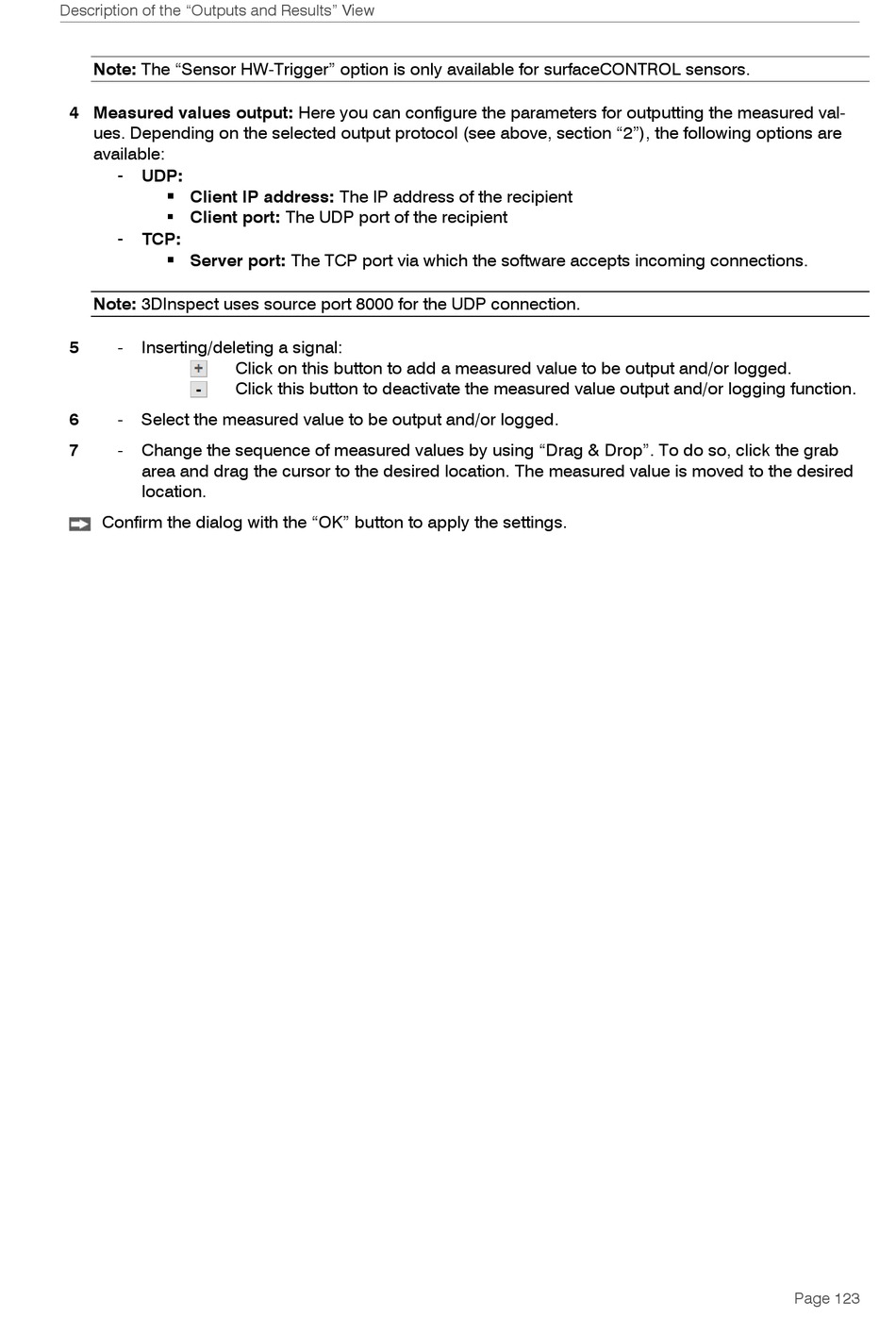

Description of the "Outputs and Results" View
Note: The "Sensor HW-Trigger" option is only available for surfaceCONTROL sensors.
4 Measured values output: Here you can configure the parameters for outputting the measured val-
ues. Depending on the selected output protocol (see above, section "2"), the following options are
available:
-
UDP:
 Client IP address: The IP address of the recipient
 Client port: The UDP port of the recipient
-
TCP:

Server port: The TCP port via which the software accepts incoming connections.
Note: 3DInspect uses source port 8000 for the UDP connection.
5 - Inserting/deleting a signal:
6 - Select the measured value to be output and/or logged.
7 - Change the sequence of measured values by using "Drag & Drop". To do so, click the grab
area and drag the cursor to the desired location. The measured value is moved to the desired
location.
Confirm the dialog with the "OK" button to apply the settings.
Click on this button to add a measured value to be output and/or logged.
Click this button to deactivate the measured value output and/or logging function.
