Description of the "Evaluation" View

6.1.1 "Center of Gravity" Measuring Program

Use the "Center of Gravity" program to calculate the center of gravity of 3D points. Proceed as follows:
-
If applicable, select the input data for the program (see below, section "1" and Chap. 3.16.3).
-
If necessary, limit the range for the center of gravity calculation in order to eliminate interfering
points (see section "E" and Chap. 3.16.4,
-
If applicable, select measured values that are to be used later for calculation, OK/nOK assessment,
logging and output (see below, section "H" and Chap. 3.16.8).
The measuring program outputs the following measured values:
-
Center of gravity x: The X coordinate of the calculated center of gravity of the current point cloud.
-
Center of gravity y: The Y coordinate of the calculated center of gravity of the current point cloud.
-
Center of gravity z: The Z coordinate of the calculated center of gravity of the current point cloud.
-
Number of points: The number of selected points in the current point cloud that were used to cal-
culate the center of gravity.
-
Sigma: The standard deviation of the distances of the points to the center of gravity.
A
C B
1
G

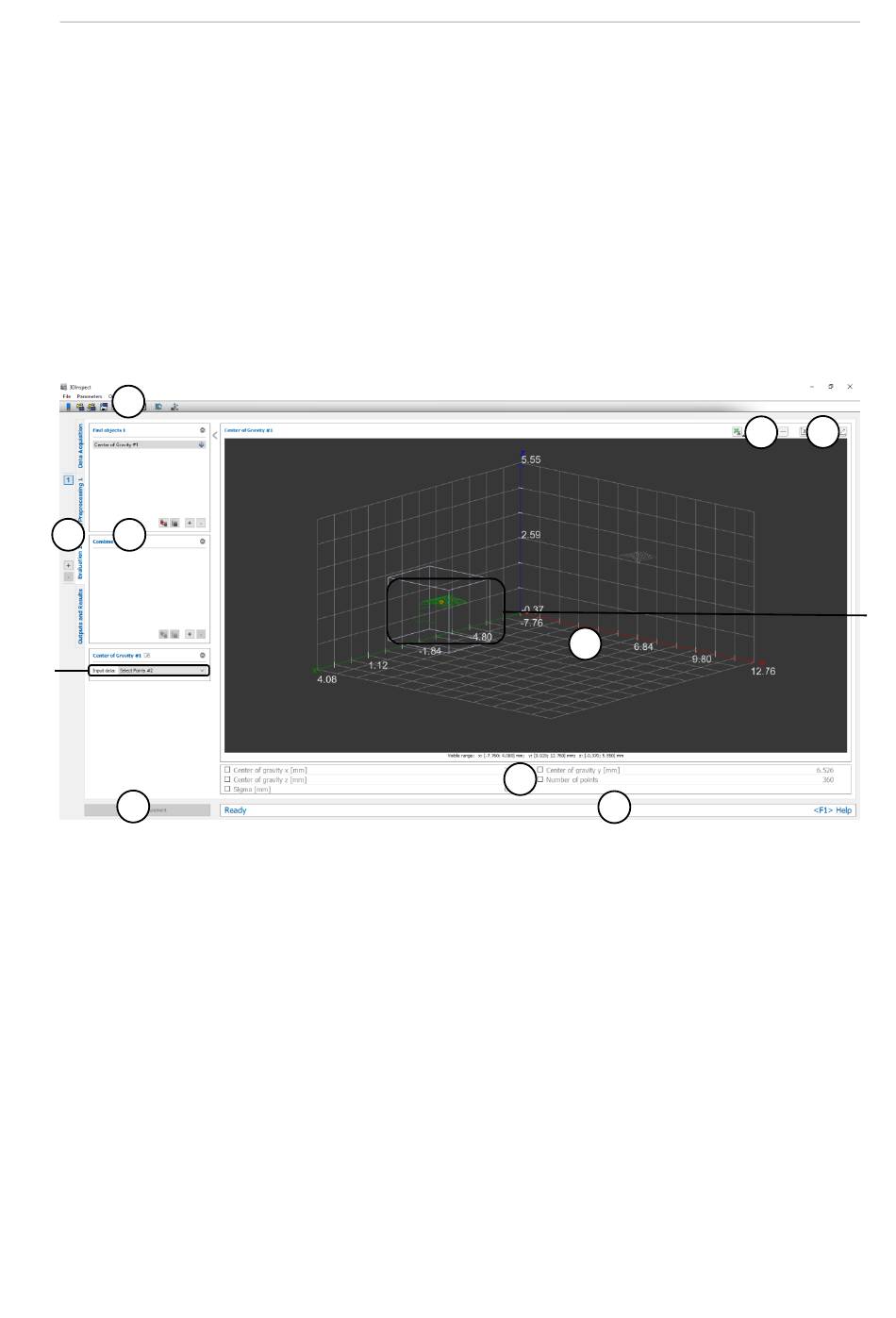

Fig. 6.3: "Center of Gravity" Measuring Program
Display Elements and Parameters in the "Center of Gravity" Program:
A "General" toolbar: Using this toolbar, you can select the data source (see Chapter
save and load parameters and reset selected parameters to default settings (see Chapter 3.17).
B List of active measuring programs: This section displays the active measuring programs from
the "Find objects" and "Combine objects" groups. You can add and remove measuring pro-
grams/measuring program groups (see Chap.
Chap. 3.14) and select an active measuring program for parameterizing and displaying the
measured values.
C Measuring program groups / Tab bar for switching between views: This tab bar allows you
to switch between the four main views (see Chap. 3.2). To the left of the tab bar you find the sec-
tion for adding, removing and selecting measuring program groups (see Chap. 3.15).
D 3D-View: The 3D-View visualizes the 3D data (see Chap. 3.10).
E Measuring toolbar: Use this toolbar to set various ROIs for the measurement (see Chap. 3.16.4,
3.16.5 and 3.16.6).
F 3D-View toolbar: Use this toolbar to configure the orientation of the coordinate system in the
3D-View (see Chap. 3.10).
3.16.5 and 3.16.6).
D
H
3.13 and 3.15), move measuring programs (see
E
I
3.4
F
2
und 3.5),
