Description of the "Evaluation" View

6.1.3 "Plane Fit" Measuring Program

Use the "Plane Fit" program to calculate a plane at 3D points. Proceed as follows:
-
If applicable, select the input data for the program (see below, section "1" and Chap. 3.16.3).
-
If necessary, limit the range for the plane calculation in order to eliminate interfering points (see
section "E" and Chap. 3.16.4,
-
If required, activate the optimized fit and enter a suitable threshold for the optimized fit (see below,
section "2").
-
If applicable, select measured values that are to be used later for calculation, OK/nOK assessment,
logging and output (see below, section "H" and Chap. 3.16.8).
The measuring program outputs the following measured values:
-
Angle to x axis: The angle of the calculated plane with respect to the X axis.
-
Angle to y axis: The angle of the calculated plane with respect to the Y axis.
-
Angle to z axis: The angle of the calculated plane with respect to the Z axis.
-
Distance to origin: The distance between the plane and the origin of the coordinate system.
-
Center of gravity x: The X coordinate of the center of gravity of the points that were used to calcu-
late the plane.
-
Center of gravity y: The Y coordinate of the center of gravity of the points that were used to calcu-
late the plane.
-
Center of gravity z: The Z coordinate of the center of gravity of the points that were used to calcu-
late the plane.
-
Number of points: The number of points in the point cloud that were used to calculate the plane.
-
Sigma: The standard deviation of the distances between the points that were used to calculate the
plane and the calculated plane.
-
Peak to Valley (PV): The distance between the highest and lowest point relative to the calculated
plane. The highest and lowest point is determined from the points that were used to calculate the
plane.
A
C
B
1
2
G

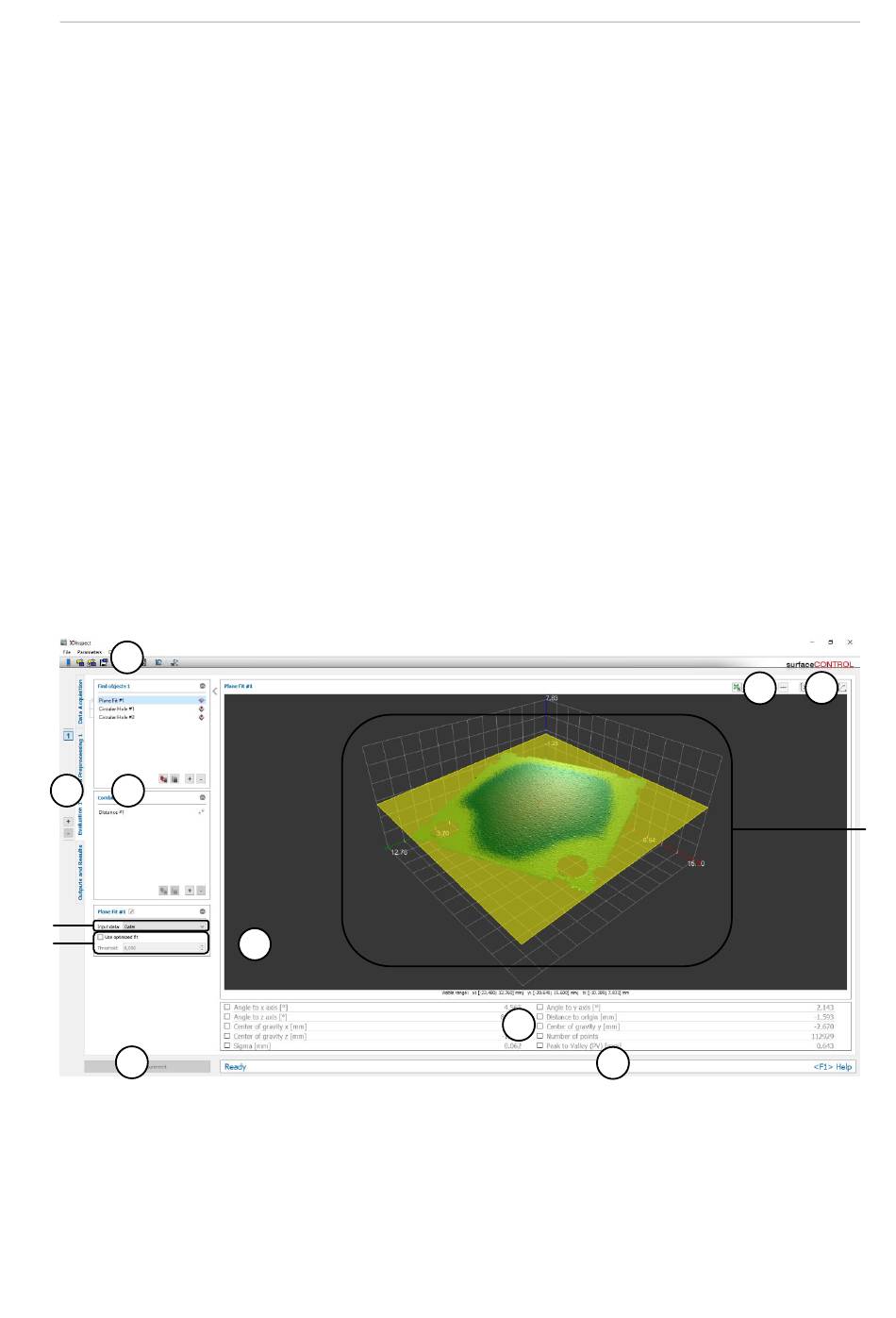

Fig. 6.5: "Plane Fit" Measuring Program
Display Elements and Parameters in the "Plane Fit" Program:
A
"General" toolbar: Using this toolbar, you can select the data source (see Chapter
save and load parameters and reset selected parameters to default settings (see Chapter 3.17).
B
List of active measuring programs: This section displays the active measuring programs from
the "Find objects" and "Combine objects" groups. You can add and remove measuring pro-
grams/measuring program groups (see Chap.
3.16.5
and 3.16.6).
D
H
I
3.13
and 3.15), move measuring programs (see
E
F
3
3.4
und 3.5),
