Description of the "Evaluation" View

6.2.1 "Distance" Measuring Program

Use the "Distance" program to calculate the distance between two objects. Proceed as follows:
- Select the type of distance to be calculated (see below, section "1" and Chap. 3.16.2)
-
If applicable, select the input data for the program (see below, section "2" and Chap. 3.16.3). The
available input data vary depending on the type of distance.
-
If applicable, configure further measuring program parameters depending on the type of distance
and the input data (see below, section "3").
-
If applicable, select measured values that are to be used later for calculation, OK/nOK assessment,
logging and output (see below, section "G" and Chap. 3.16.8).
The measuring program outputs the following measured values:
-
Euclidean distance: The Euclidean distance between the selected objects.
-
Distance x: The distance between the selected objects in the x direction.
-
Distance y: The distance between the selected objects in the y direction.
-
Distance z: The distance between the selected objects in the z direction.
A
C
B
2
1
3
F

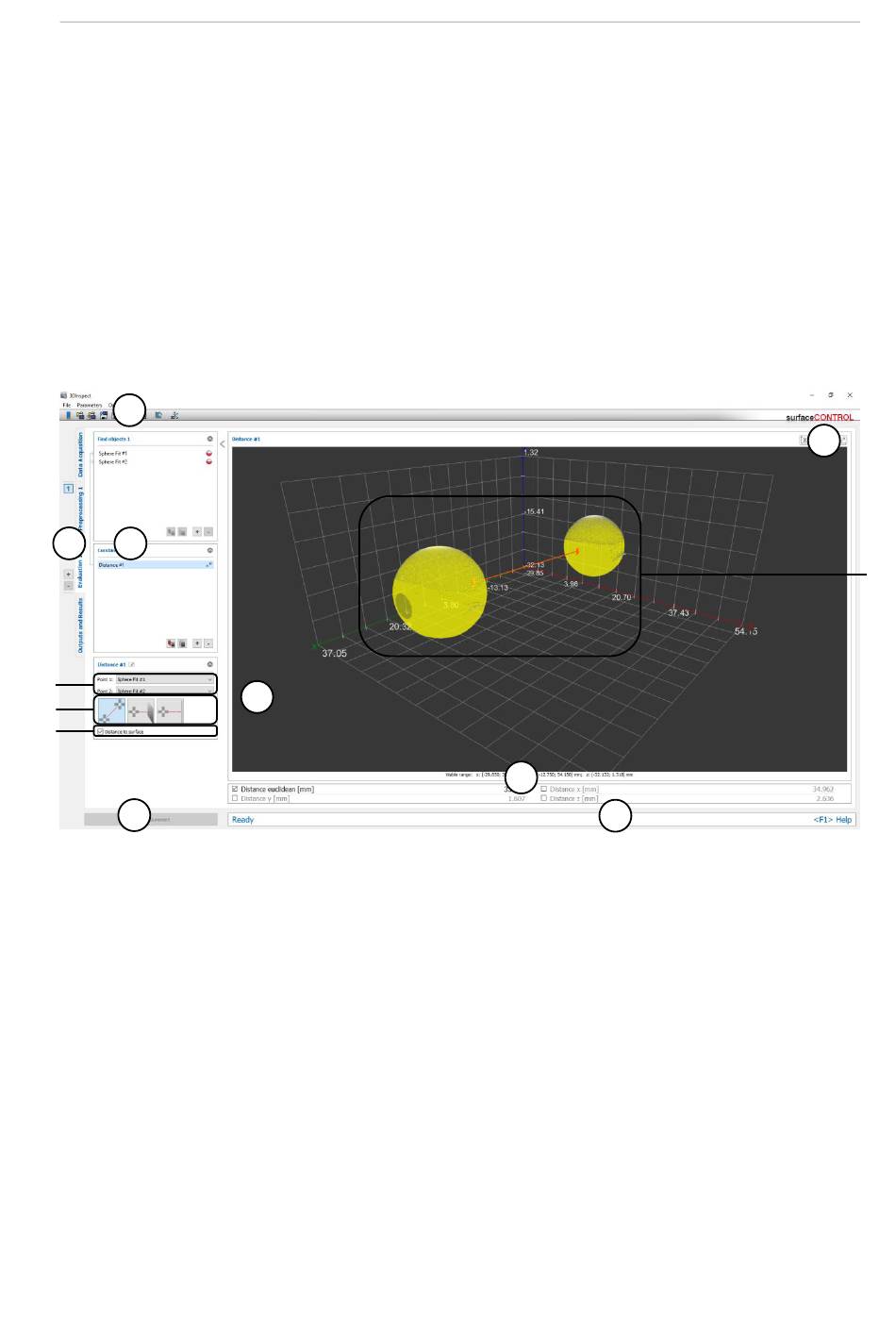

Fig. 6.13: "Distance" Measuring Program
Display Elements and Parameters in the "Distance" Program:
A "General" toolbar: Using this toolbar, you can select the data source (see Chapter
save and load parameters and reset selected parameters to default settings (see Chapter 3.17).
B List of active measuring programs: This section displays the active measuring programs from
the "Find objects" and "Combine objects" groups. You can add and remove measuring pro-
grams/measuring program groups (see Chap.
Chap. 3.14) and select an active measuring program for parameterizing and displaying the
measured values.
C Measuring program groups / Tab bar for switching between views: This tab bar allows you
to switch between the four main views (see Chap. 3.2). To the left of the tab bar you find the sec-
tion for adding, removing and selecting measuring program groups (see Chap. 3.15).
D 3D-View: The 3D-View visualizes the 3D data (see Chap. 3.10).
E 3D-View toolbar: Use this toolbar to configure the orientation of the coordinate system in the
3D-View (see Chap. 3.10).
D
G
H
3.13 and 3.15), move measuring programs (see
E
4
3.4 und 3.5),
