Description of the "Data Acquisition" View
4.2

Description of the "Measurement" Tab

The "Measurement" view shows result images of the 2D measurement. You may execute a measurement
by pressing the "Start measurement" button.
A
B
C
3
4
D

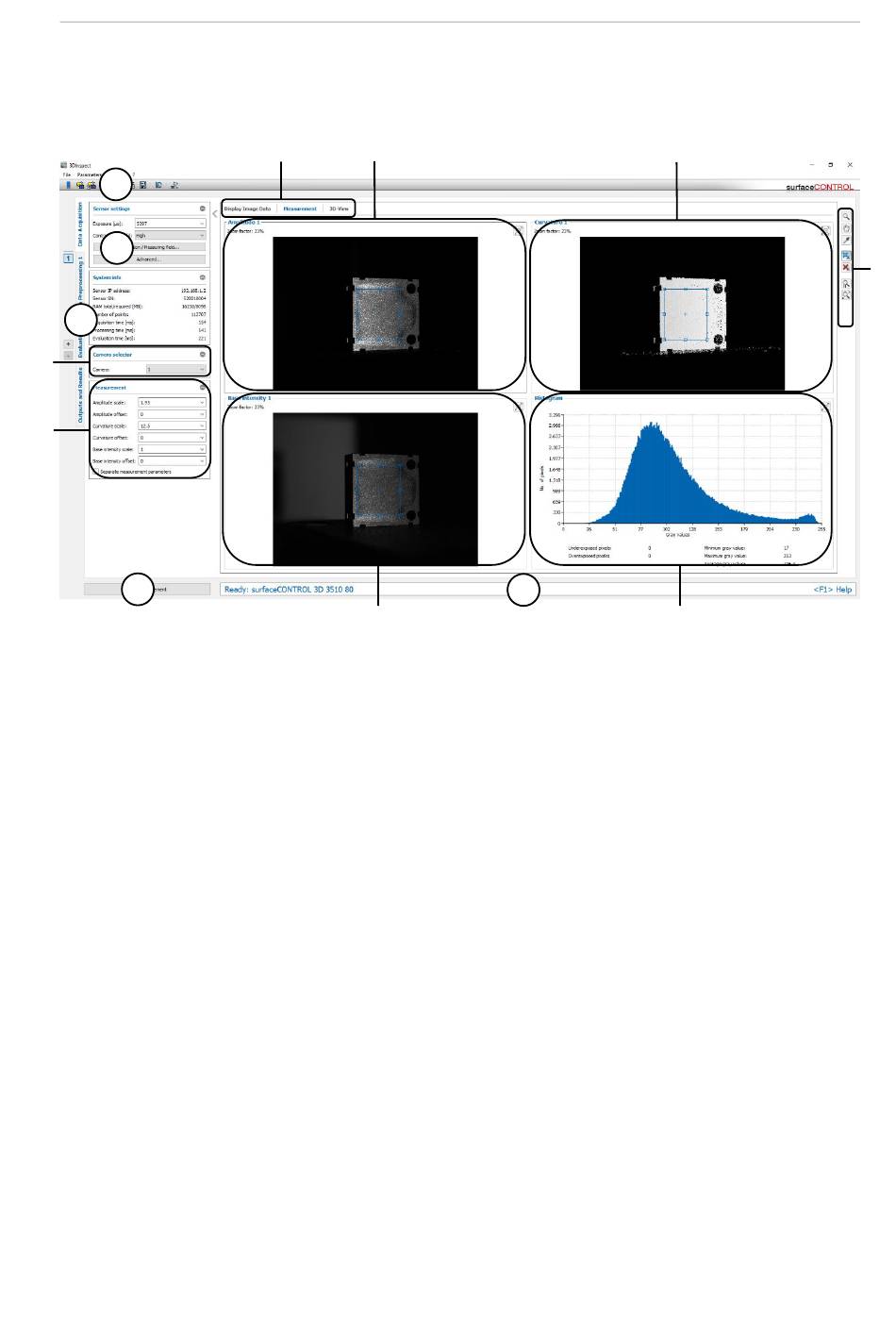

Fig. 4.2: "Measurement" view
Display elements and parameters in the "Measurement" view:
A "General" toolbar: Using this toolbar, you can select the data source (see Chapter
save and load parameters and reset selected parameters to default settings (see Chapter 3.17).
B Sensor settings: Change the settings of the sensor with these values. Detail information about
each parameter can be found in Chapters
C Tab bar for switching between views: This tab bar allows you to switch between the four main
views (see Chap. 3.2).
D "Start measurement" button: Click on this button to perform a measuring operation, calculate
the measurement results and display the result images of the 2D measurement.
E Status line: Status and error messages are displayed on the status line (see Chapter 8.1).
1 Tab bar for switching between subviews: This tab bar allows you to switch between the sub-
views of the "Data acquisition" view (see Chap. 4).
2 „Display" / „Measurement" toolbar: Using this toolbar, you scale the 2D-display and activate
various options for mouse interaction (see Chap. 4.1, Section 2).
3 Camera selector: Select whether the result images of camera 1 or camera 2 are shown.
4 Measurement: The following parameters for the 2D measurement are available:
- Amplitude scale: The scaling factor for the gray values in the amplitude image.
- Amplitude offset: The offset for the gray values in the amplitude image.
- Curvature scale: The scaling factor for the gray values in the curvature image.
- Curvature offset: The offset for the gray values in the curvature image.
- Base intensity scale: The scaling factor for the gray values in the base intensity image.
-
Base intensity offset: The offset for the gray values in the base intensity image.
5 Amplitude i: This display visualizes the last measured amplitude image of the selected camera.
5
1
7
E
3.4.1 and 3.4.3.
6
8
3.4 und 3.5),
Page 52
