Working with 3DInspect

3.4.4 Description of the "Resolution / Measuring field" Dialog Box

This dialog box allows adjustments to the resolution and measuring field.
1 2 3 4
7 6 8 5

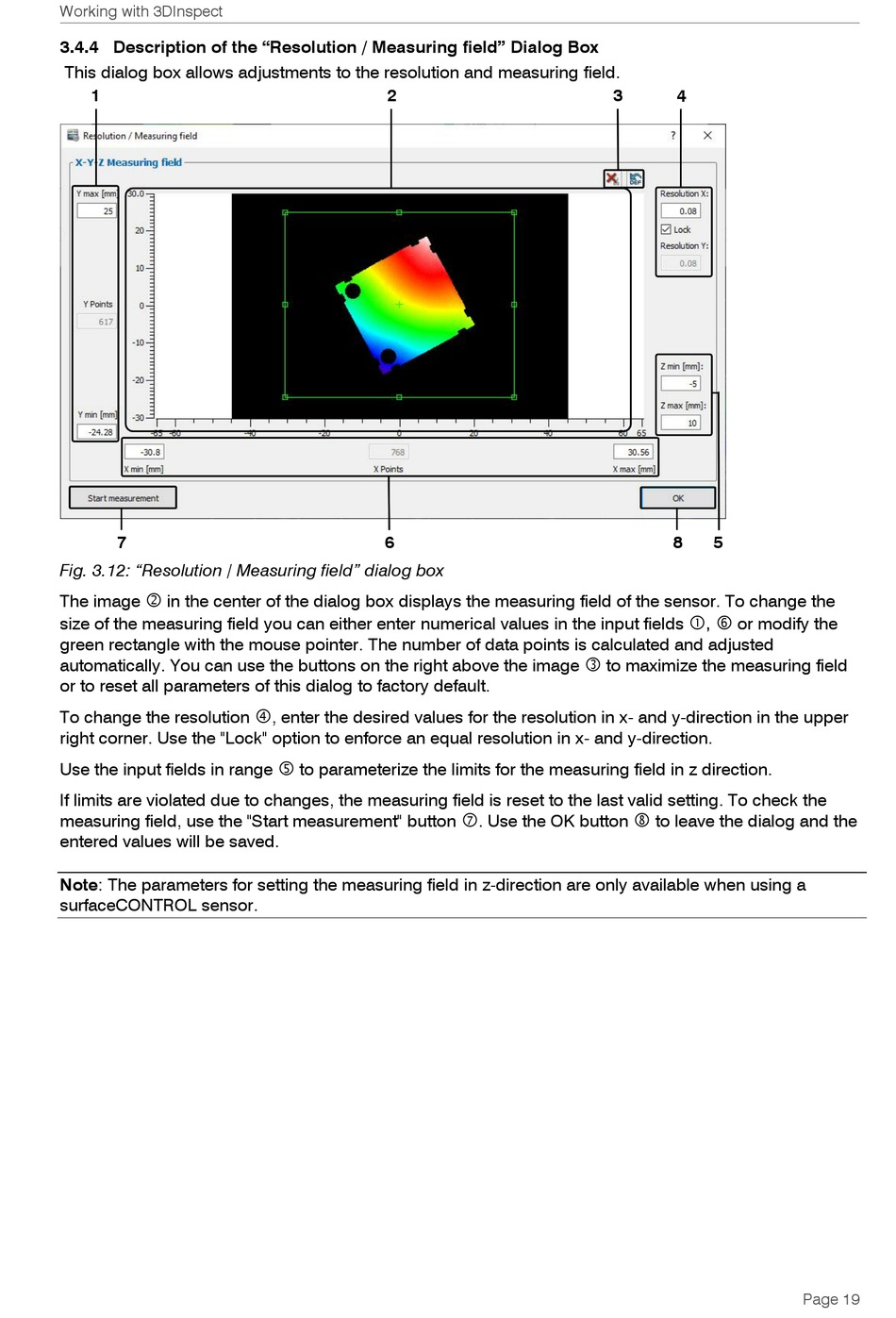

Fig. 3.12: "Resolution / Measuring field" dialog box
The image  in the center of the dialog box displays the measuring field of the sensor. To change the
, 
size of the measuring field you can either enter numerical values in the input fields or modify the
green rectangle with the mouse pointer. The number of data points is calculated and adjusted
automatically. You can use the buttons on the right above the image  to maximize the measuring field
or to reset all parameters of this dialog to factory default.

To change the resolution , enter the desired values for the resolution in x- and y-direction in the upper
right corner. Use the "Lock" option to enforce an equal resolution in x- and y-direction.
Use the input fields in range  to parameterize the limits for the measuring field in z direction.
If limits are violated due to changes, the measuring field is reset to the last valid setting. To check the
 
measuring field, use the "Start measurement" button . Use the OK button to leave the dialog and the
entered values will be saved.
Note: The parameters for setting the measuring field in z-direction are only available when using a
surfaceCONTROL sensor.
Page 19
