Working with 3DInspect

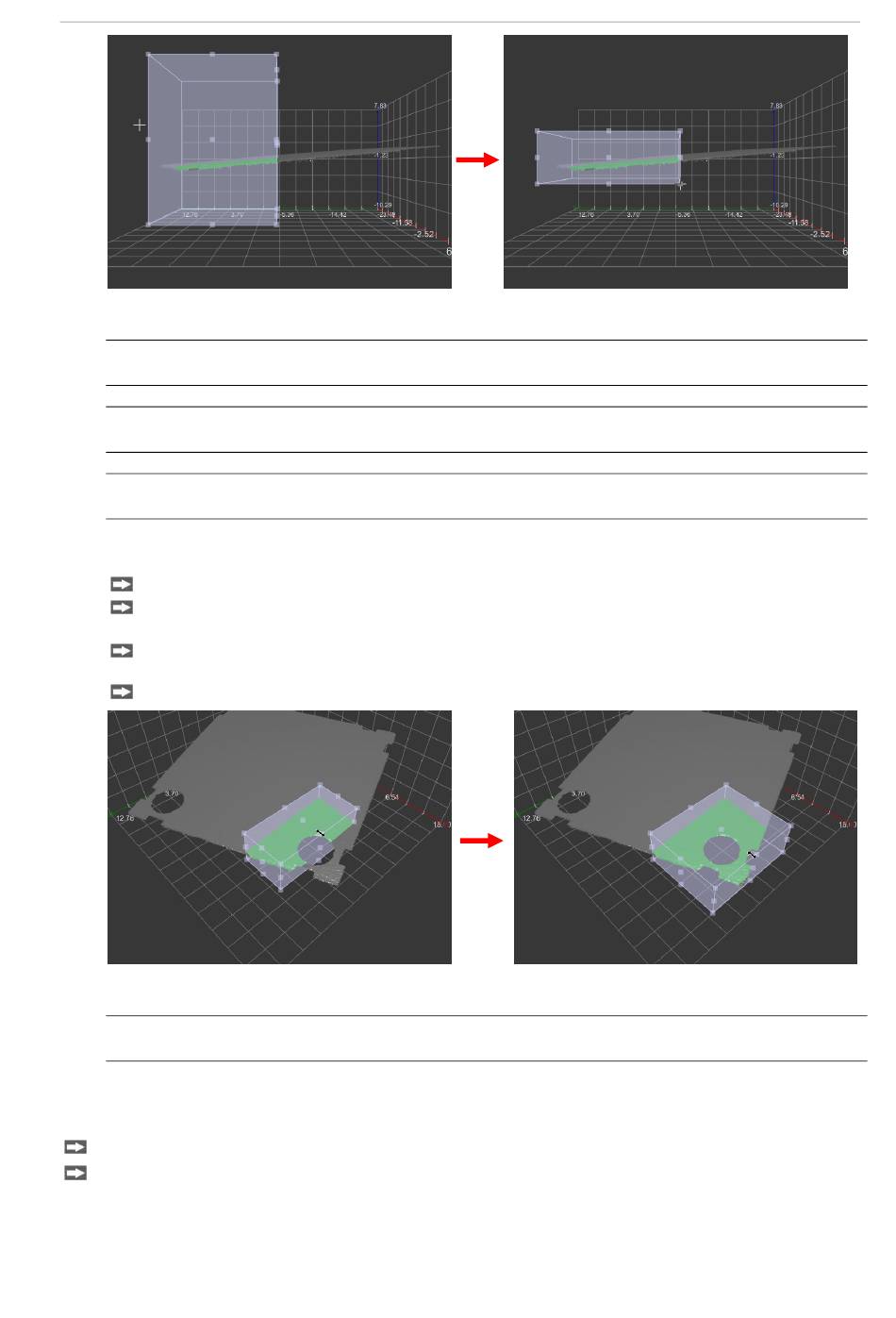

Fig. 3.45: Setting the complete ROI (z range)
Note: When setting the ROIs, it is often helpful to deactivate the perspective 3D-View (see Chap.
3.11, "Perspective" parameter).
Note: If you accidentally start a new ROI while defining another, you can undo this using the Es-
cape key.
Note: If "Setting region of interest for 3D points" mode is active, you can rotate and move the 3D-
View using the right mouse button (see Chap. 3.10).
- Modifying an existing ROI (drag and drop)::
Rotate the display so that you can clearly see the ROI you want to change.
Move the cursor to any corner or side of the ROI displayed so that the cursor appears as a
double arrow.
Now press and hold down the left mouse button. Then move the cursor to the desired posi-
tion. The side or corner of the ROI changes with the position of the cursor.
Release the mouse button.
Fig. 3.46: Modifying the ROI
Note: If you accidentally modify an existing ROI before completing the mouse action, you can
undo this using the Escape key.
As well as using the mouse, you also have the option to manually edit the values for the ROI in which the
measurement is to take place.
Open the context menu for the desired ROI (see above, Fig. 3.41).
Click on the "..." button.
The "Edit region of interest" dialog appears.
