MICRO-EPSILON surfaceCONTROL 3D Instruction Manual page 15

Working with 3DInspect

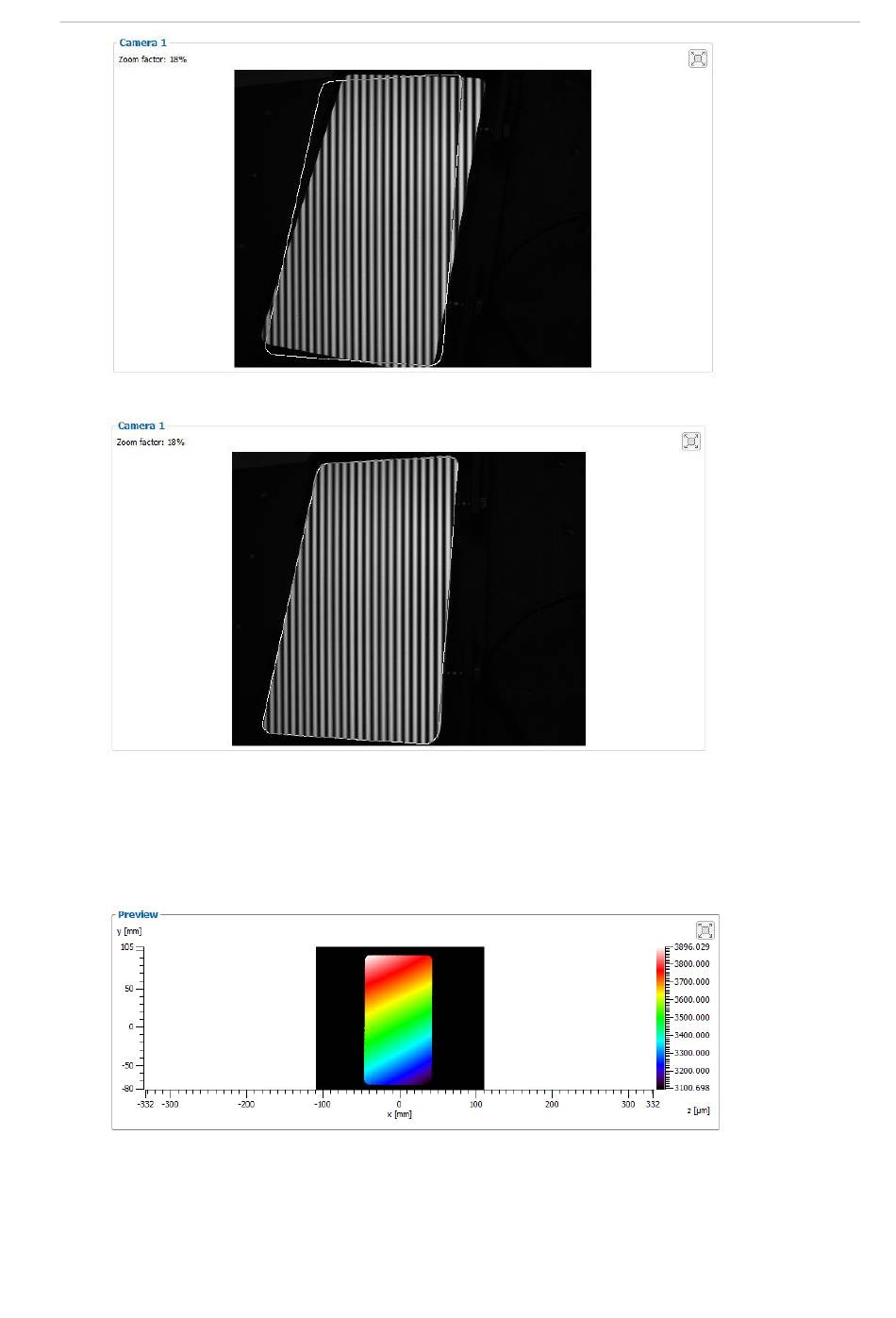

Fig. 3.6: Positioning the reference target – position has to be corrected
Fig. 3.7: Positioning the reference target – position is OK
- Make a reference measurement:
You may make reference measurements after you have correctly positioned the reference target.
To do so, you have to open the 3D-View and to press the "Start reference measurement" button.
The sensor executes a reference measurement. Use the preview in order to check the correct dis-
tance from the sensor to the reference target:
Fig. 3.8: Positioning the reference object – Distance too small
Page 15
