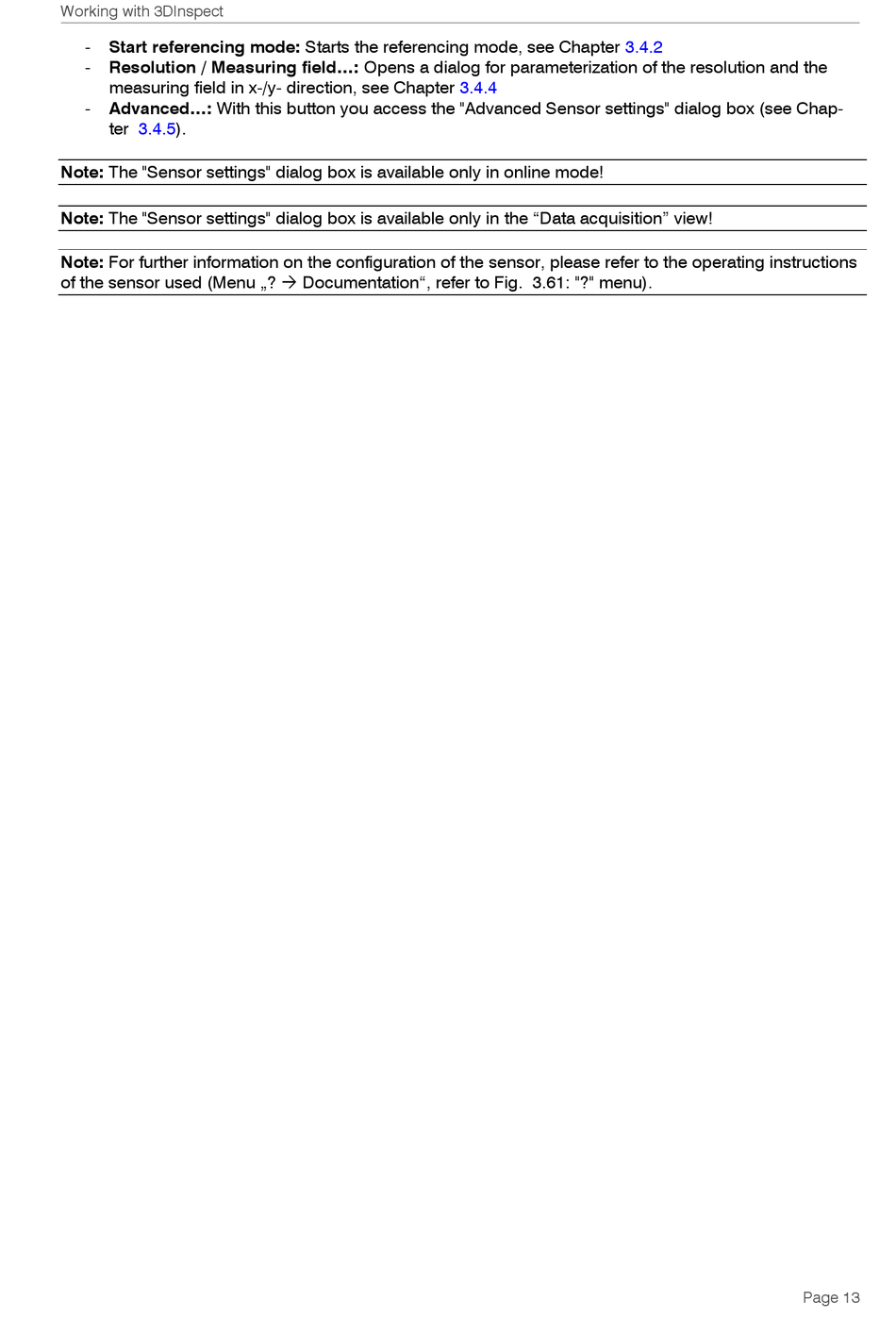

Working with 3DInspect
- Start referencing mode: Starts the referencing mode, see Chapter
- Resolution / Measuring field...: Opens a dialog for parameterization of the resolution and the
measuring field in x-/y- direction, see Chapter
- Advanced...: With this button you access the "Advanced Sensor settings" dialog box (see Chap-
ter 3.4.5).
Note: The "Sensor settings" dialog box is available only in online mode!
Note: The "Sensor settings" dialog box is available only in the "Data acquisition" view!
Note: For further information on the configuration of the sensor, please refer to the operating instructions
of the sensor used (Menu „?  Documentation", refer to Fig. 3.61: "?" menu).
3.4.2
3.4.4
