14.2. I/O Modules Manifold

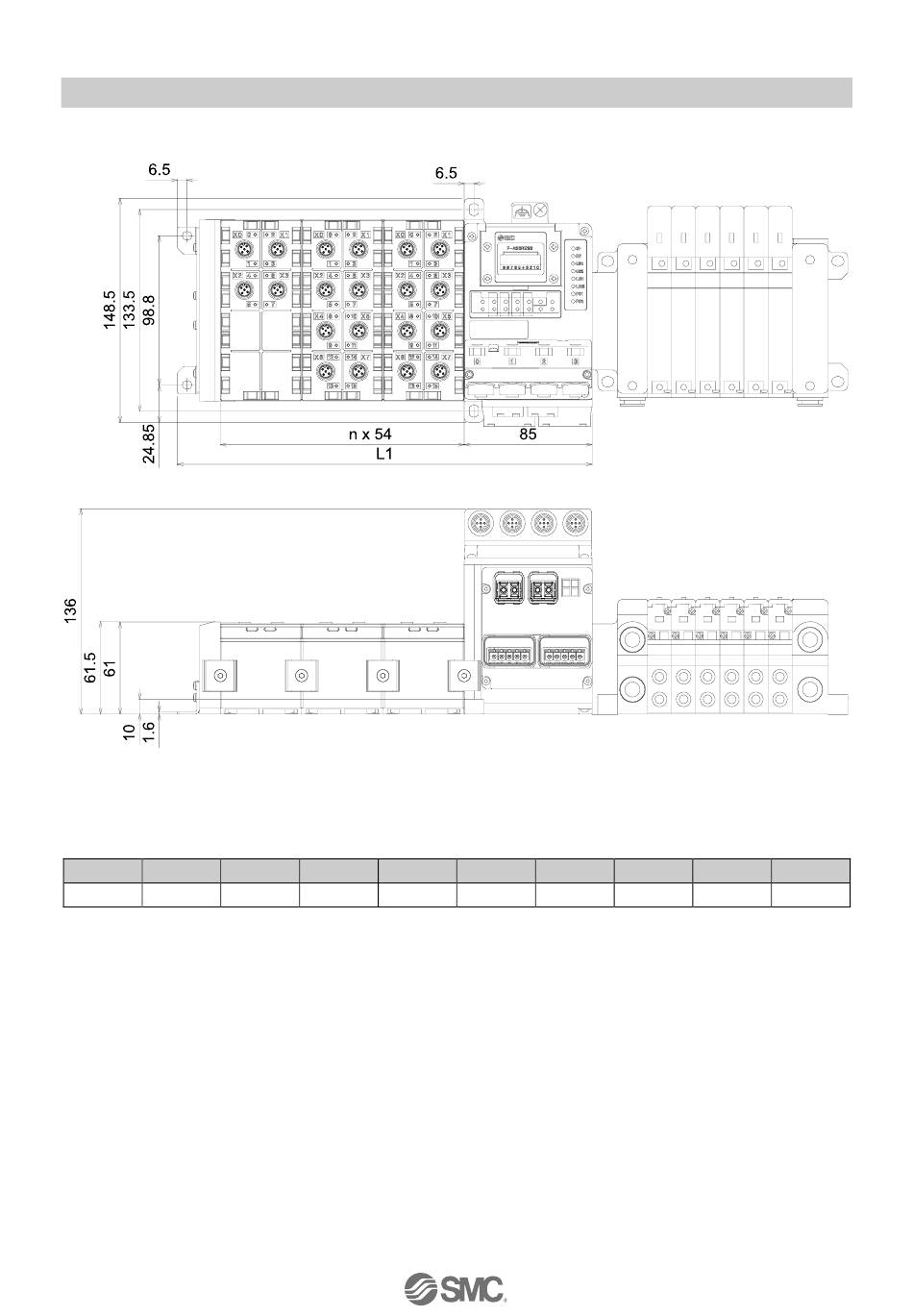

Fig. 15-1 Dimensions of the Modules manifold
The following table shows the length of the I/O Modules manifold.
Table 15-1 Length of the EX245 series module
M
0
1
2
3
4
5
6
7
8
L1
113.6
167.6
221.6
275.6
329.6
383.6
437.6
491.6
545.6
Formulas: L1 = 54n + 113.6 (max. 8 modules)
- 85 -
No.EX##-OMY0004
