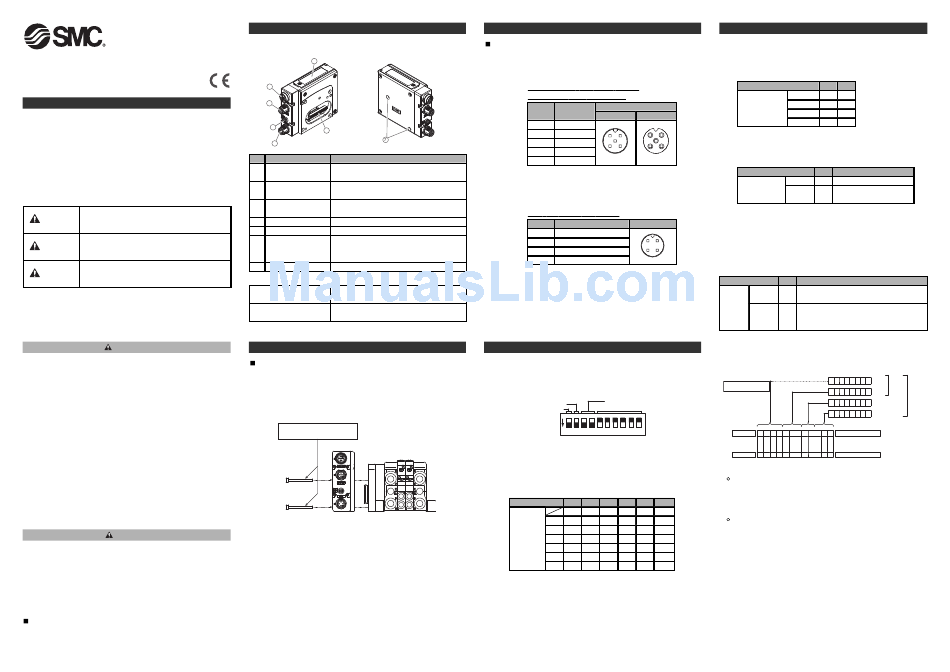

SMC Networks EX260-SDN1 Installation & Maintenance Manual

EX260-TFN21
Installation & Maintenance Manual
Fieldbus device (SI unit)
EX260 Series for DeviceNet TM
Safety Instructions
This manual contains essential information for the protection of users
and others from possible injury and/or equipment damage.
•Read this manual before using the product, to ensure correct handling,
and read the manuals of related apparatus before use.
•Keep this manual in a safe place for future reference.
•These instructions indicate the level of potential hazard with the labels
of "Caution", "Warning" or "Danger", followed by important safety
information which must be carefully followed.
•To ensure safety of personnel and equipment the safety instructions in
this manual and the product catalogue must be observed, along with
other relevant safety practices.
CAUTION indicates a hazard with a low level of risk
Caution which, if not avoided, could result in minor or
moderate injury.
WARNING indicates a hazard with a medium level
Warning of risk which, if not avoided, could result in death or
serious injury.
DANGER indicates a hazard with a high level of risk
Danger which, if not avoided, will result in death or serious
injury.
This product is class A equipment that is intended for use in an industrial
environment.
There may be potential difficulties in ensuring electromagnetic
compatibility in other environments due to conducted as well as radiated
disturbances.
Warning
•Do not disassemble, modify (including changing the printed circuit
board) or repair.
An injury or failure can result.
•Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Verify the specifications before use.
•Do not operate in an atmosphere containing flammable or
explosive gases.
Fire or an explosion can result.
This product is not designed to be explosion proof.
•If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical
system.
•Check the product regularly for proper operation.
Otherwise malfunction can result, causing an accident.
•The following instructions must be followed during maintenance:
•Turn off the power supply.
•Stop the air supply, exhaust the residual pressure and verify that the
air is released before performing maintenance.
Otherwise an injury can result.
Caution
•After maintenance is complete, perform appropriate functional
inspections.
Stop operation if the equipment does not function properly.
Safety cannot be assured in the case of unexpected malfunction.
•Provide grounding to assure the safety and noise resistance of the
Fieldbus system.
Individual grounding should be provided close to the product with a
short cable.
NOTE
•When conformity to UL is necessary the SI unit must be used with a
UL 1310 Class2 power supply.
Summary of Product element
<EX260-SDN1/-SDN2/-SDN3/-SDN4>
6
1
2
4
5
3
No. Element Description
Fieldbus interface DeviceNet TM connection
1
connector (BUS OUT) (M12 5-pole socket, A-coded)
Fieldbus interface DeviceNet TM connection
2
connector (BUS IN) (M12 5-pole plug, A-coded)
Power supply Power supply with load voltage for valves
3
connector (M12 4-pole plug, A-coded)
4 Ground terminal Functional earth (M3 screw)
5 Output connector Output signal interface for valve manifold
Bus status−specific and SI unit−specific LEDs
6 LED and switch Switches for setting of node address and
operating mode
7 Mounting hole Mounting hole for connection to the valve manifold
Accessories
Hexagon socket head cap 2 pcs. M3x30 screw for connection to the valve
screw manifold
1 pc. seal cap for unused fieldbus interface
Seal cap
connector (BUS OUT)
Installation
General instructions on installation and maintenance
Connect valve manifold to the SI unit.
Connectable valve manifolds are the same as for EX250 series SI unit.
Refer to the EX250 series valve manifold section in the valve catalogue
for valve manifold dimensions.
Assembly and disassembly of the SI unit
M3 hexagon screw
Tightening torque 0.6 Nm
∗: Thread size: M3×30
Valve manifold
Replacement of the SI unit
•Remove the M3 hexagon screws from the SI unit and release the
SI unit from the valve manifold.
•Replace the SI unit.
•Tighten the screws with the specified tightening torque. (0.6 Nm)
Precautions for maintenance
•Be sure to switch off the power.
•Check there is no foreign matter inside the SI unit.
•Check there is no damage and no foreign matter being stuck to the
gasket.
•Be sure to tighten the screws with the specified torque.
If the SI unit is not assembled properly, inside PCBs may be damaged or
liquid and/or dust may enter into the unit.
Installation (Continued)
Connecting cables
Select the appropriate cables to mate with the connectors mounted on the
SI unit.
Fieldbus interface connector layout
BUS OUT: M12 5-pole socket A-coded
BUS IN: M12 5-pole plug A-coded
Contact layout
No. Designation
BUS IN BUS OUT
1 DRAIN
2 V+
2 1
1 2
5 5
3 V-
4 3
3 4
4 CAN_H
5 CAN_L
Note: To avoid causing disruption of "downstream" devices whilst
replacing SI unit, use a DeviceNet TM tap rather than making
connections to the BUS OUT connector.
Power supply connector layout
PWR: M12 4-pole plug A-coded
No. Designation Contact layout
1 −
2 1
2 +24 V for solenoid valve
3 4
3 −
4 0 V for solenoid valve
Ground terminal
Connect the ground terminal to ground.
Resistance to ground should be 100 ohms or less.
Setting
Switch setting
Set the DeviceNet TM node address (MAC ID), DeviceNet TM communication
speed and fail safe mode of the SI unit using the 10-element switch.
Communication speed
HOLD/CLEAR
Address
HW/SW
ON 1 2 3 4 5 6 7 8 9 10
Note: Be sure to switch off the power supply before setting the switches.
Address setting (switch No. 5 to 10)
The DeviceNet TM address (MAC ID) is binary coded and can be set from
0 to 63
Note: Factory default setting is 63.
0: OFF, 1: ON
Switch No. No.5 No.6 No.7 No.8 No.9 No.10
32 16 8 4 2 1
0 0 0 0 0 0 0
1 0 0 0 0 0 1
MAC ID 2 0 0 0 0 1 0
: : : : : : :
62 1 1 1 1 1 0
63 1 1 1 1 1 1
Setting (Continued)
Communication speed setting (switch No. 3 to 4)
The DeviceNet TM communication speed is binary coded and can be
set to 125 kbps, 250 kbps and 500 kbps.
Note: Factory default setting is 125 kbps.
0: OFF, 1: ON
Switch No. No.3 No.4
125 kbps 0 0
Communication
250 kbps 0 1
speed
500 kbps 1 0
1 1
-
HOLD/CLEAR setting (switch No.2)
Set the reaction of outputs to the communication error
(All outputs will be set under the same conditions)
Note: Factory default setting is CLEAR.
0: OFF, 1: ON
Switch No. No.2 Description
CLEAR 0 Clear all outputs
HOLD/CLEAR
Hold the last state before
HOLD 1
communication error
Note: Each output can be set individually over the network.
HW/SW mode setting (switch No.1)
Modifications to the address and speed can be made locally or over
the network.
Local setting: Hardware mode (Hereinafter referred to as "HW mode")
Network setting: Software mode (Hereinafter referred to as "SW mode")
Note: Factory default setting is "HW mode".
0: OFF, 1: ON
Switch No. No.1 Description
Set the address and speed locally using the
HW 0
SI unit switches
HW/SW
Set the address and speed over the
SW 1 DeviceNet TM network
(Switch setting is invalid)
Output number assignment
The output number refers to the solenoid position on the manifold and
starts at zero.
Bit: 7 0
Byte
0 Offset
16 outputs
0: Solenoid valve: OFF
Bit: 7 0
Byte type
1: Solenoid valve: ON
1 Offset
Bit: 7 0
Byte
2 Offset
Bit: 7 0
Byte
3 Offset
Bit No. 0 2 4 6 0 0 4 6
・・・
Solenoid on side A
Output No. 0 2 4 6 8 16 28 30
Side D
→ ・ ・ ・ ・ ・ ・
(SI unit side)
Solenoid on side B
Output No. 1 3 5 7 9 17 29 31
Bit No.
1 3 5 7 1 ・・・ ・・・ 1 ・ ・ ・ 5 7
Valve manifold
Setting over the DeviceNet network
TM
Technical documentation giving detailed information about setting
the unit over the DeviceNet TM network can be found on the SMC
website (URL http://www.smcworld.com)
Diagnostic information
Technical documentation giving detailed diagnostic information can
be found on the SMC website (URL http://www.smcworld.com)
32 outputs
type
