EX245-FPS3
LED indicators 1
LED indicators 2
Switch cover
Production label
Mounting hole
Power connection (XD1)
7/8 inch, 5pins plug connector (24 Volt)
Safe input connection
4 x M12, 5-way sockets

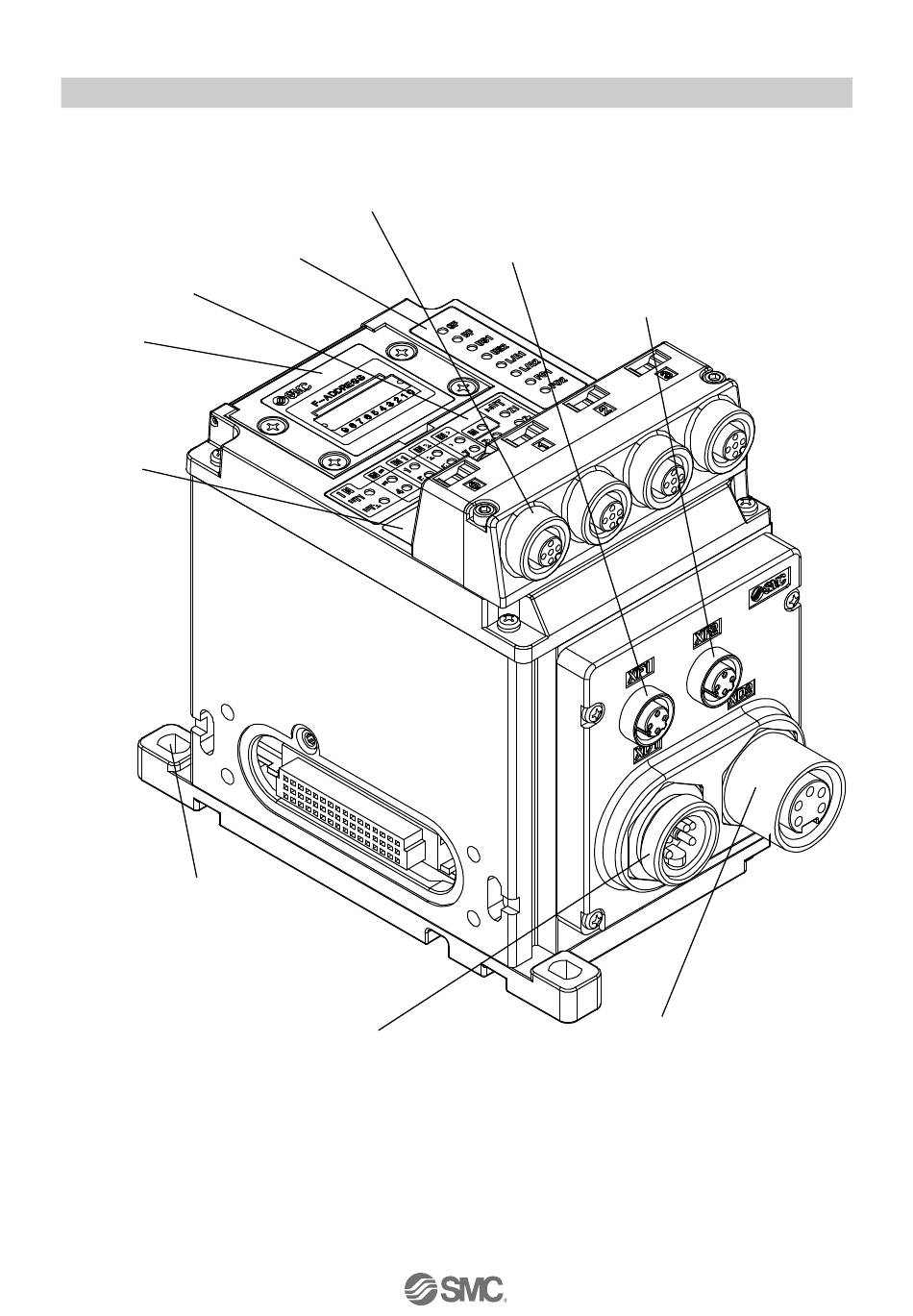

Fig. 10-2 Allocation of parts on the EX245-FPS3
PROFINET connection for Port1 (XF1)
M12, 4pins socket, D-coded connector
PROFINET connection for Port2 (XF2)
M12, 4pins socket, D-coded connector
Power connection (XD2)
7/8 inch, 5pins socket connector (24 Volt)
- 50 -
No.EX##-OMY0004
