10.10. Production label

 Firmware version (FW) : 2.1.X
 Hardware version (HW): 03 and higher

10.11. DIP Switches

PROFIsafe address switch
10.11.1.
A ten bit DIP-Switch is provided for the safety address setting. The switch setting is only checked at
power-up. Any changes made during operation are ignored and may lead to problems during the next
power-up sequence
Using the DIP switches:
・ Unscrew the cover and hinge it upwards.
・ The DIP switches can be adjusted with a small flat-blade screwdriver.
・ Tighten the cover again, making sure that the seals are positioned correctly. (torque = 0.3 Nm)
Note:
The F-Address bit numbering shown on the label has priority over any numbers printed on the DIP switch e.g. in the example above
the DIP switch is printed with numbers 1 to 10 where 1 is on left and 10 is on the right. In this case the numbers are provided for
reference only and play no part in the address numbering.
The default state (factory setting) for this DIP switch is all OFF.

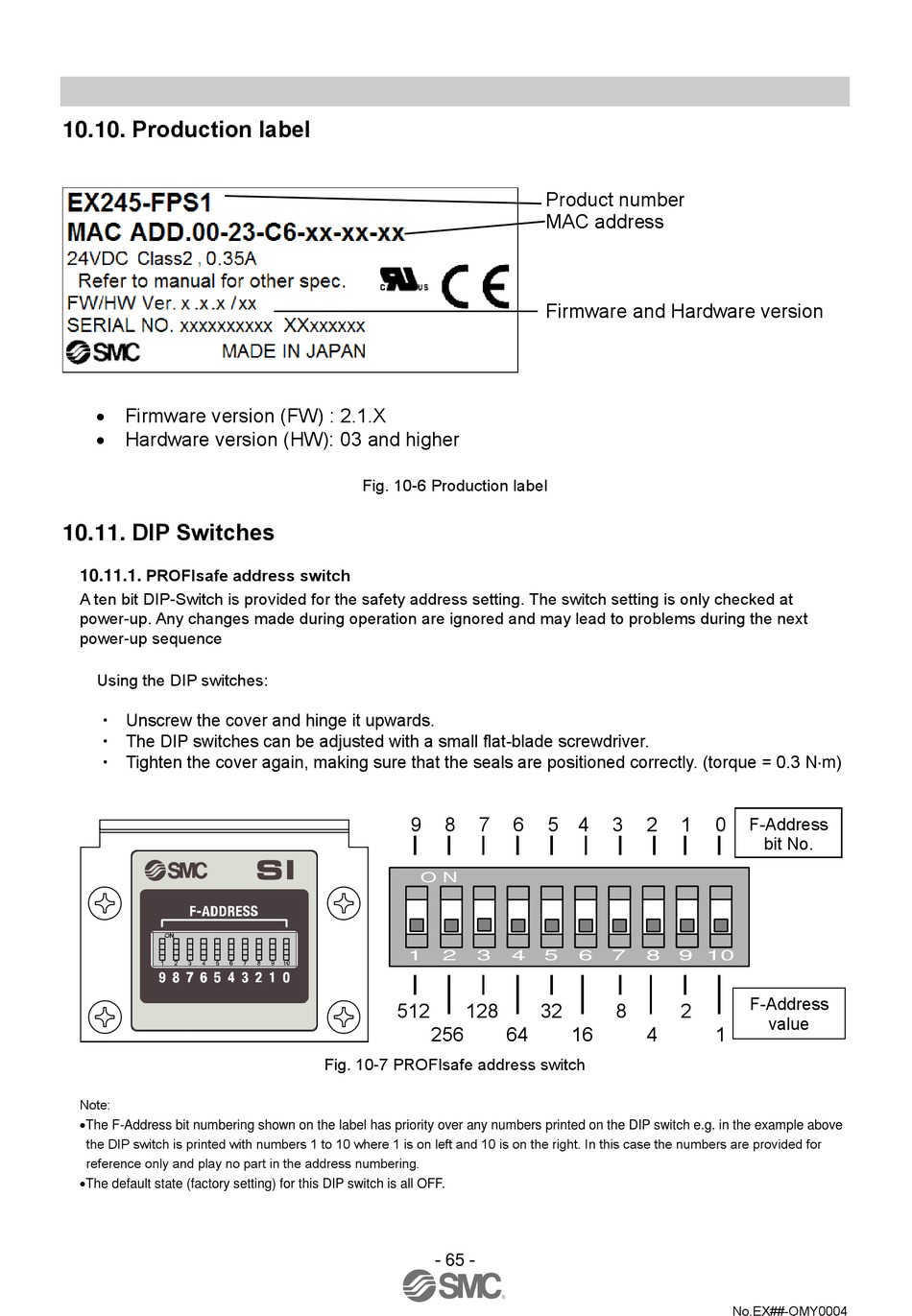

Fig. 10-6 Production label
9 8 7
512 128
256
Fig. 10-7 PROFIsafe address switch
