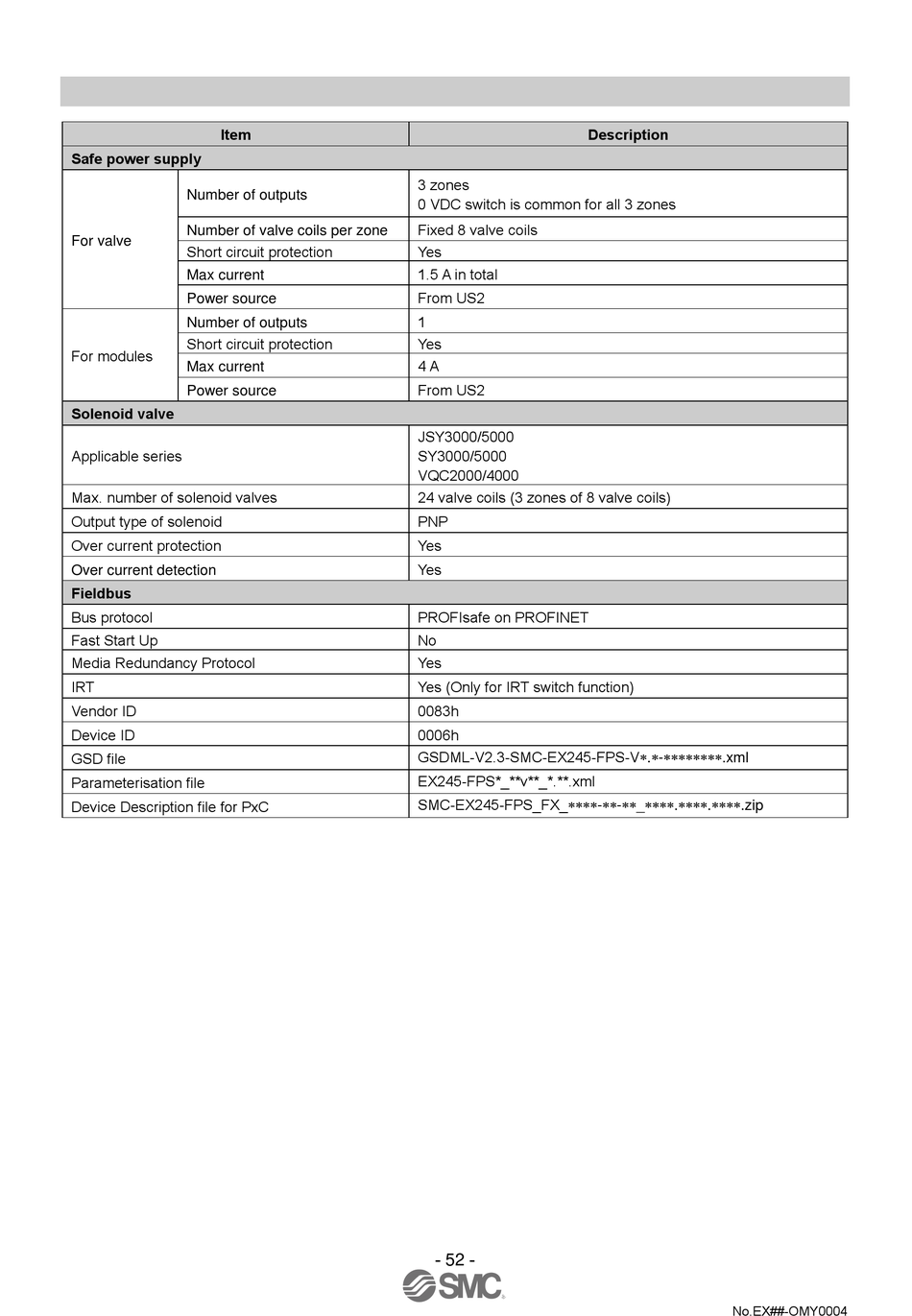

SMC Networks EX245-FPS1 Operation Manual page 53

Item
Safe power supply
Number of outputs
Number of valve coils per zone
For valve
Short circuit protection
Max current
Power source
Number of outputs
Short circuit protection
For modules
Max current
Power source
Solenoid valve
Applicable series
Max. number of solenoid valves
Output type of solenoid
Over current protection
Over current detection
Fieldbus
Bus protocol
Fast Start Up
Media Redundancy Protocol
IRT
Vendor ID
Device ID
GSD file
Parameterisation file
Device Description file for PxC
Description
3 zones
0 VDC switch is common for all 3 zones
Fixed 8 valve coils
Yes
1.5 A in total
From US2
1
Yes
4 A
From US2
JSY3000/5000
SY3000/5000
VQC2000/4000
24 valve coils (3 zones of 8 valve coils)
PNP
Yes
Yes
PROFIsafe on PROFINET
No
Yes
Yes (Only for IRT switch function)
0083h
0006h
GSDML-V2.3-SMC-EX245-FPS-V.-.xml
EX245-FPS*_**v**_*.**.xml
SMC-EX245-FPS_FX_--_...zip
