① M5, FE terminal screw (torque = 1.5 Nm)
② M12 connector, PROFINET connection Port1 (XF1), Port type: MDI
③ M12 connector, PROFINET connection Port2 (XF2), Port type: MDI-X
④ 7/8 inch connector, Power connection (XD1)
⑤ 7/8 inch connector, Power connection (XD2)
⑥ M12 Connector, Safe Inputs

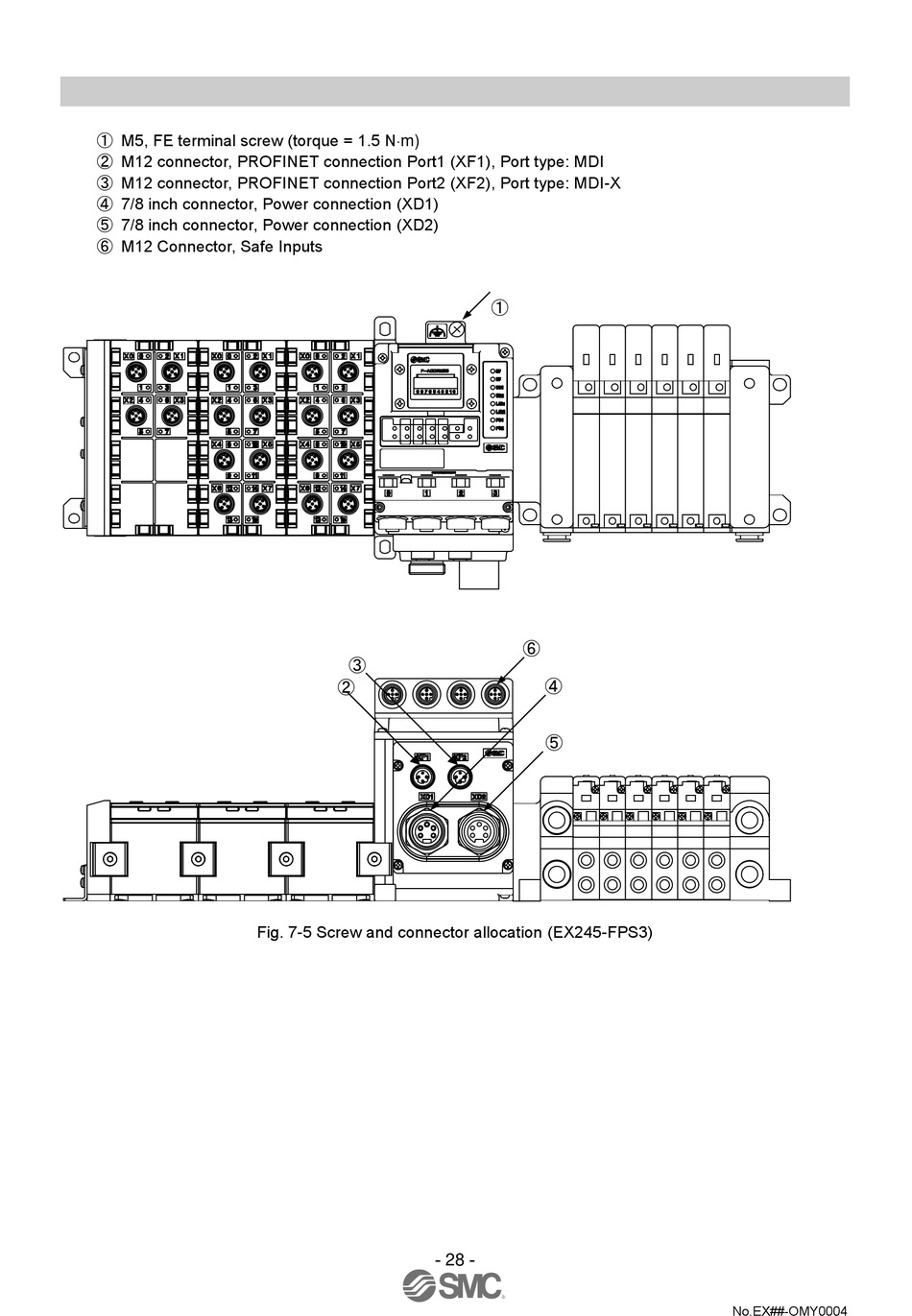

Fig. 7-5 Screw and connector allocation (EX245-FPS3)
①
③
②
- 28 -
⑥
④
⑤
No.EX##-OMY0004
