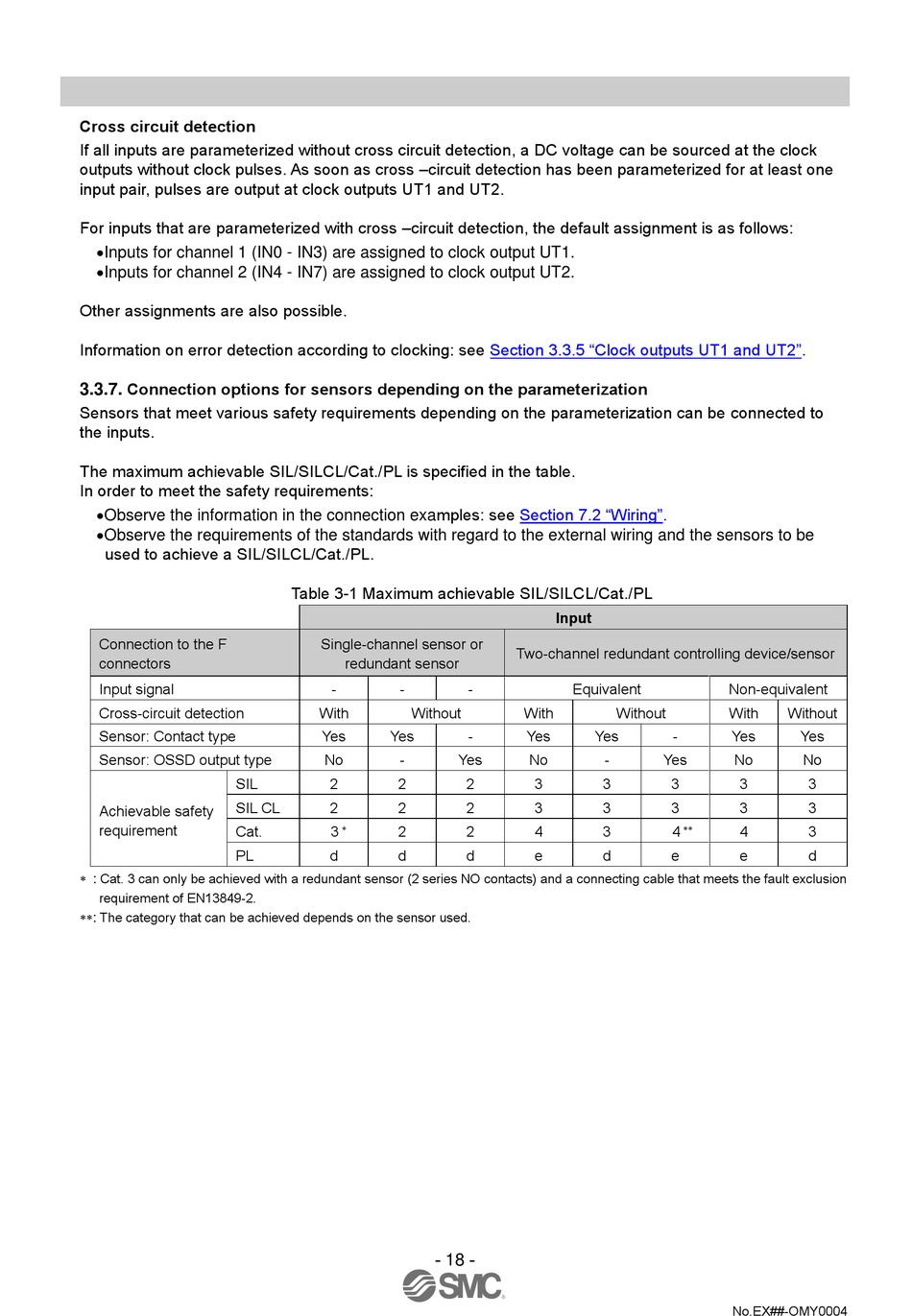

Cross circuit detection
If all inputs are parameterized without cross circuit detection, a DC voltage can be sourced at the clock
outputs without clock pulses. As soon as cross –circuit detection has been parameterized for at least one
input pair, pulses are output at clock outputs UT1 and UT2.
For inputs that are parameterized with cross –circuit detection, the default assignment is as follows:
Inputs for channel 1 (IN0 - IN3) are assigned to clock output UT1.
Inputs for channel 2 (IN4 - IN7) are assigned to clock output UT2.
Other assignments are also possible.
Information on error detection according to clocking: see
Connection options for sensors depending on the parameterization
3.3.7.
Sensors that meet various safety requirements depending on the parameterization can be connected to
the inputs.
The maximum achievable SIL/SILCL/Cat./PL is specified in the table.
In order to meet the safety requirements:
Observe the information in the connection examples: see
Observe the requirements of the standards with regard to the external wiring and the sensors to be
used to achieve a SIL/SILCL/Cat./PL.
Connection to the F
connectors
Input signal
Cross-circuit detection
Sensor: Contact type
Sensor: OSSD output type
SIL
SIL CL
Achievable safety
requirement
Cat.
PL
: Cat. 3 can only be achieved with a redundant sensor (2 series NO contacts) and a connecting cable that meets the fault exclusion
requirement of EN13849-2.
: The category that can be achieved depends on the sensor used.
Table 3-1 Maximum achievable SIL/SILCL/Cat./PL
Single-channel sensor or
redundant sensor
- -
With Without
Yes Yes
No - Yes
2 2
2 2

3 2
d d
- 18 -
Section 3.3.5 "Clock outputs UT1 and
Section 7.2 "Wiring".
Input
Two-channel redundant controlling device/sensor
- Equivalent
With Without
- Yes Yes
No -
2 3 3
2 3 3
2 4 3
d e d
UT2".
Non-equivalent
With Without
- Yes Yes
Yes No No
3 3 3
3 3 3

4 4 3
e e d
