SMC Networks EX245-FPS1 Operation Manual page 31

PROFINET communication
(View of the SCRJ Socket)

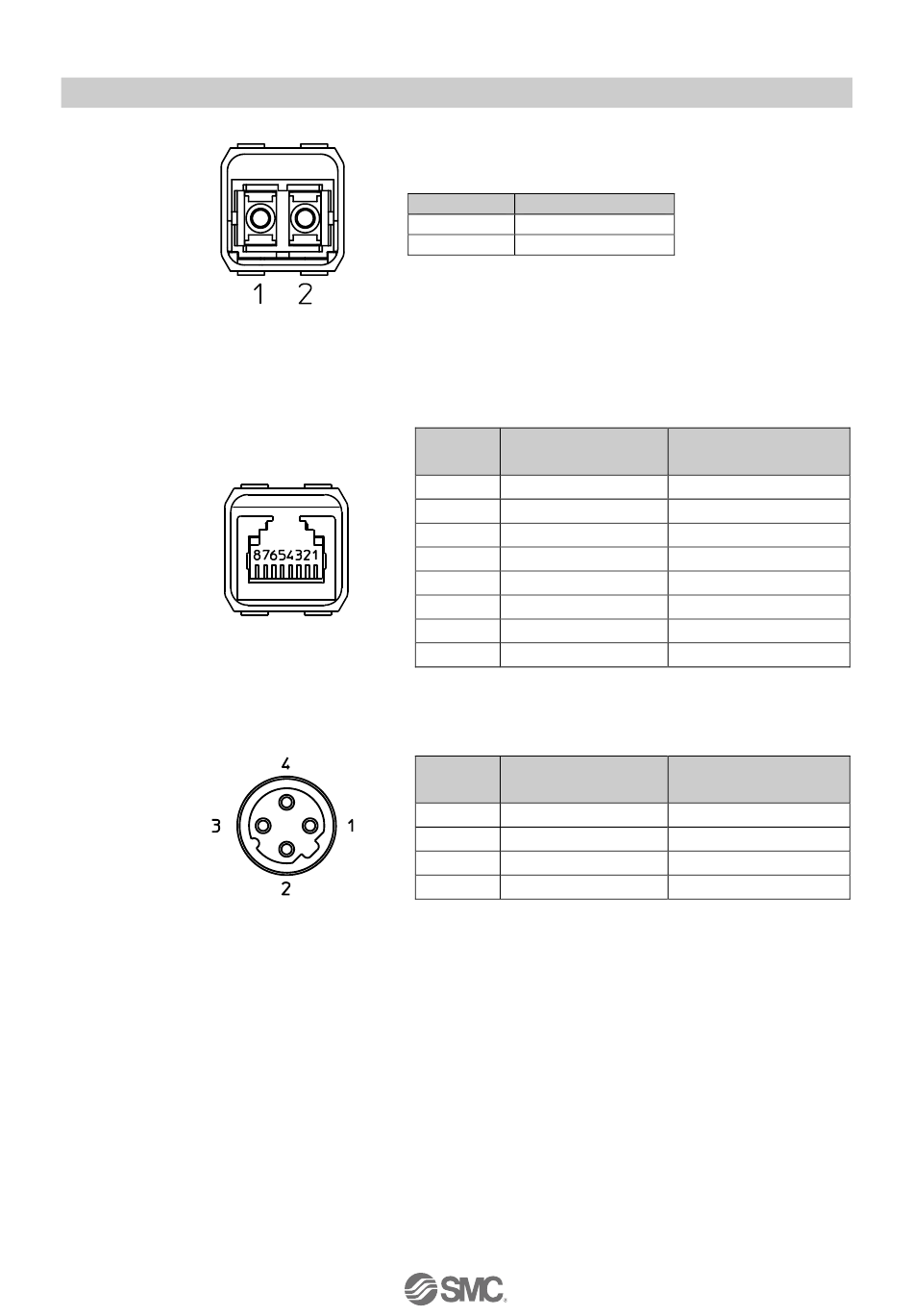

Fig. 7-8 Pin allocation of PROFINET SCRJ communication connectors for EX245-FPS1
(View of the RJ45 Socket)
Fig. 7-9 Pin allocation of PROFINET RJ45 communication connectors for EX245-FPS2
M12 4pins socket D-coded
connector
Fig. 7-10 Pin allocations of PROFINET communication connectors for EX245-FPS3
Pin Remarks
1 TX Transmit Data
2 RX Receive Data
Port1 (XF1)
Pin
Port type: MDI
1 TD+ Transmit Data
2 TD- Transmit Data
3 RD+ Receive Data
4 -
5 -
6 RD- Receive Data
7 -
8 -
Port1 (XF1)
Pin
Port type: MDI
1 TD+ Transmit data+
2 RD+ Receive data+
3 TD- Transmit data-
4 RD- Receive data-
- 30 -
Port2 (XF2)
Port type: MDI-X
RD+ Receive Data
RD- Receive Data
TD+ Transmit Data
-
-
TD- Transmit Data
-
-
Port2 (XF2)
Port type: MDI-X
RD+ Receive data+
TD+ Transmit data+
RD- Receive data-
TD- Transmit data-
