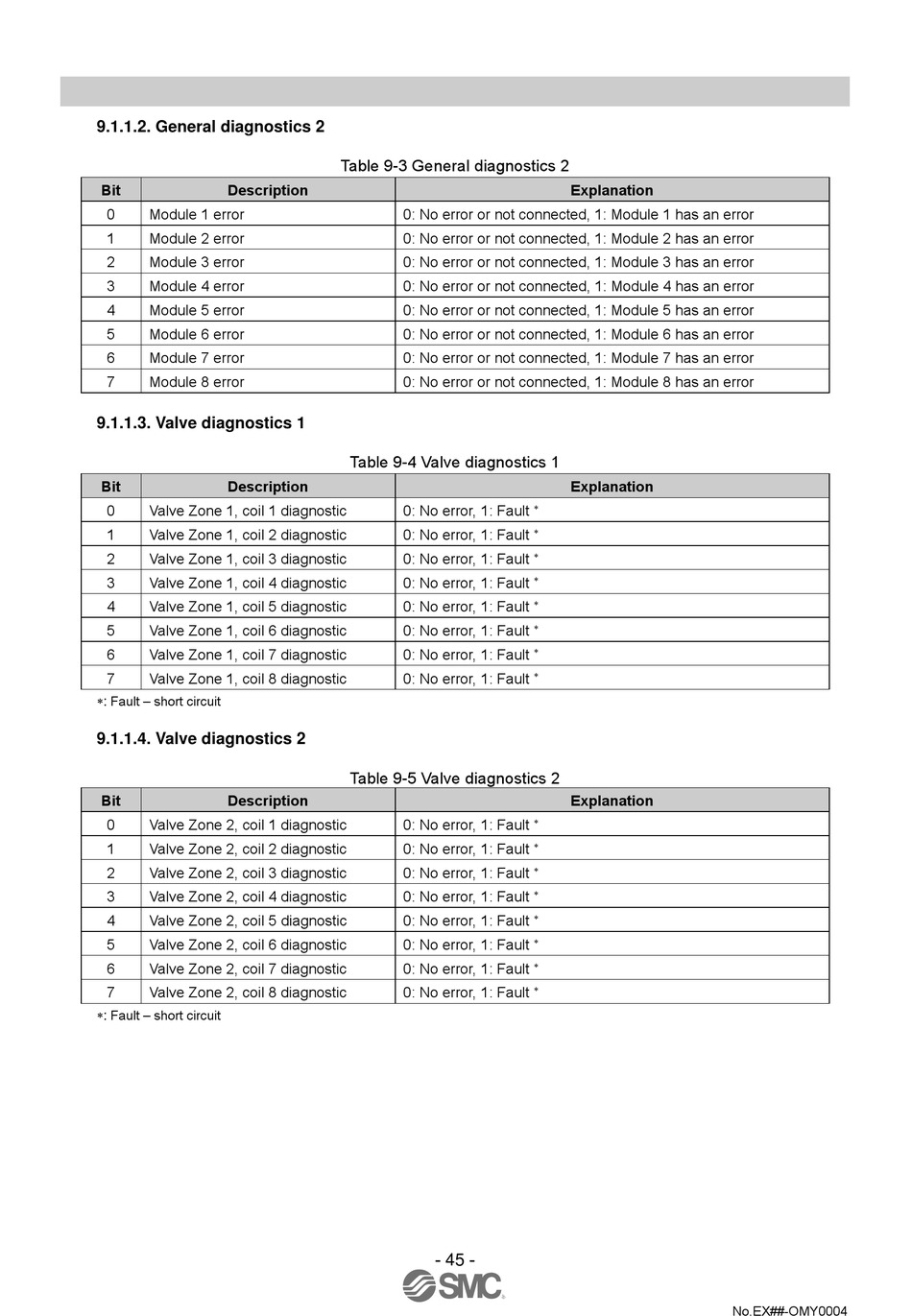

9.1.1.2. General diagnostics 2
Bit Description
0 Module 1 error
1 Module 2 error
2 Module 3 error
3 Module 4 error
4 Module 5 error
5 Module 6 error
6 Module 7 error
7 Module 8 error
9.1.1.3. Valve diagnostics 1
Bit Description
0 Valve Zone 1, coil 1 diagnostic
1 Valve Zone 1, coil 2 diagnostic
2 Valve Zone 1, coil 3 diagnostic
3 Valve Zone 1, coil 4 diagnostic
4 Valve Zone 1, coil 5 diagnostic
5 Valve Zone 1, coil 6 diagnostic
6 Valve Zone 1, coil 7 diagnostic
7 Valve Zone 1, coil 8 diagnostic
: Fault – short circuit
9.1.1.4. Valve diagnostics 2
Bit Description
0 Valve Zone 2, coil 1 diagnostic
1 Valve Zone 2, coil 2 diagnostic
2 Valve Zone 2, coil 3 diagnostic
3 Valve Zone 2, coil 4 diagnostic
4 Valve Zone 2, coil 5 diagnostic
5 Valve Zone 2, coil 6 diagnostic
6 Valve Zone 2, coil 7 diagnostic
7 Valve Zone 2, coil 8 diagnostic
: Fault – short circuit
Table 9-3 General diagnostics 2
0: No error or not connected, 1: Module 1 has an error
0: No error or not connected, 1: Module 2 has an error
0: No error or not connected, 1: Module 3 has an error
0: No error or not connected, 1: Module 4 has an error
0: No error or not connected, 1: Module 5 has an error
0: No error or not connected, 1: Module 6 has an error
0: No error or not connected, 1: Module 7 has an error
0: No error or not connected, 1: Module 8 has an error
Table 9-4 Valve diagnostics 1
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
Table 9-5 Valve diagnostics 2
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
0: No error, 1: Fault
- 45 -
Explanation
Explanation








Explanation








No.EX##-OMY0004
