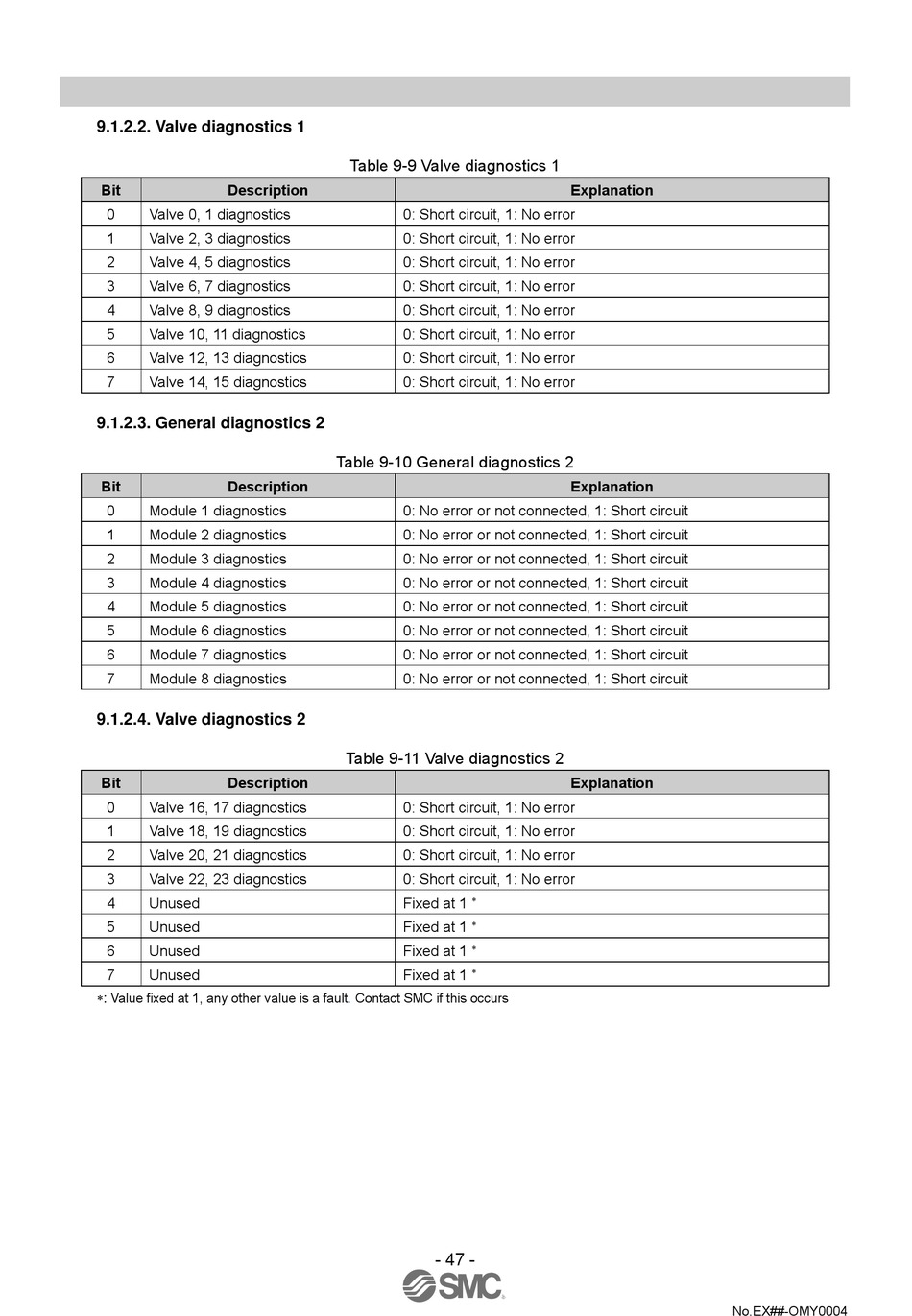

9.1.2.2. Valve diagnostics 1
Bit Description
0 Valve 0, 1 diagnostics
1 Valve 2, 3 diagnostics
2 Valve 4, 5 diagnostics
3 Valve 6, 7 diagnostics
4 Valve 8, 9 diagnostics
5 Valve 10, 11 diagnostics
6 Valve 12, 13 diagnostics
7 Valve 14, 15 diagnostics
9.1.2.3. General diagnostics 2
Bit Description
0 Module 1 diagnostics
1 Module 2 diagnostics
2 Module 3 diagnostics
3 Module 4 diagnostics
4 Module 5 diagnostics
5 Module 6 diagnostics
6 Module 7 diagnostics
7 Module 8 diagnostics
9.1.2.4. Valve diagnostics 2
Bit Description
0 Valve 16, 17 diagnostics
1 Valve 18, 19 diagnostics
2 Valve 20, 21 diagnostics
3 Valve 22, 23 diagnostics
4 Unused
5 Unused
6 Unused
7 Unused
: Value fixed at 1, any other value is a
Table 9-9 Valve diagnostics 1
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error
Table 9-10 General diagnostics 2
0: No error or not connected, 1: Short circuit
0: No error or not connected, 1: Short circuit
0: No error or not connected, 1: Short circuit
0: No error or not connected, 1: Short circuit
0: No error or not connected, 1: Short circuit
0: No error or not connected, 1: Short circuit
0: No error or not connected, 1: Short circuit
0: No error or not connected, 1: Short circuit
Table 9-11 Valve diagnostics 2
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error
0: Short circuit, 1: No error

Fixed at 1

Fixed at 1

Fixed at 1

Fixed at 1
fault. Contact SMC if this occurs
- 47 -
Explanation
Explanation
Explanation
No.EX##-OMY0004
