11.5. LED indicators

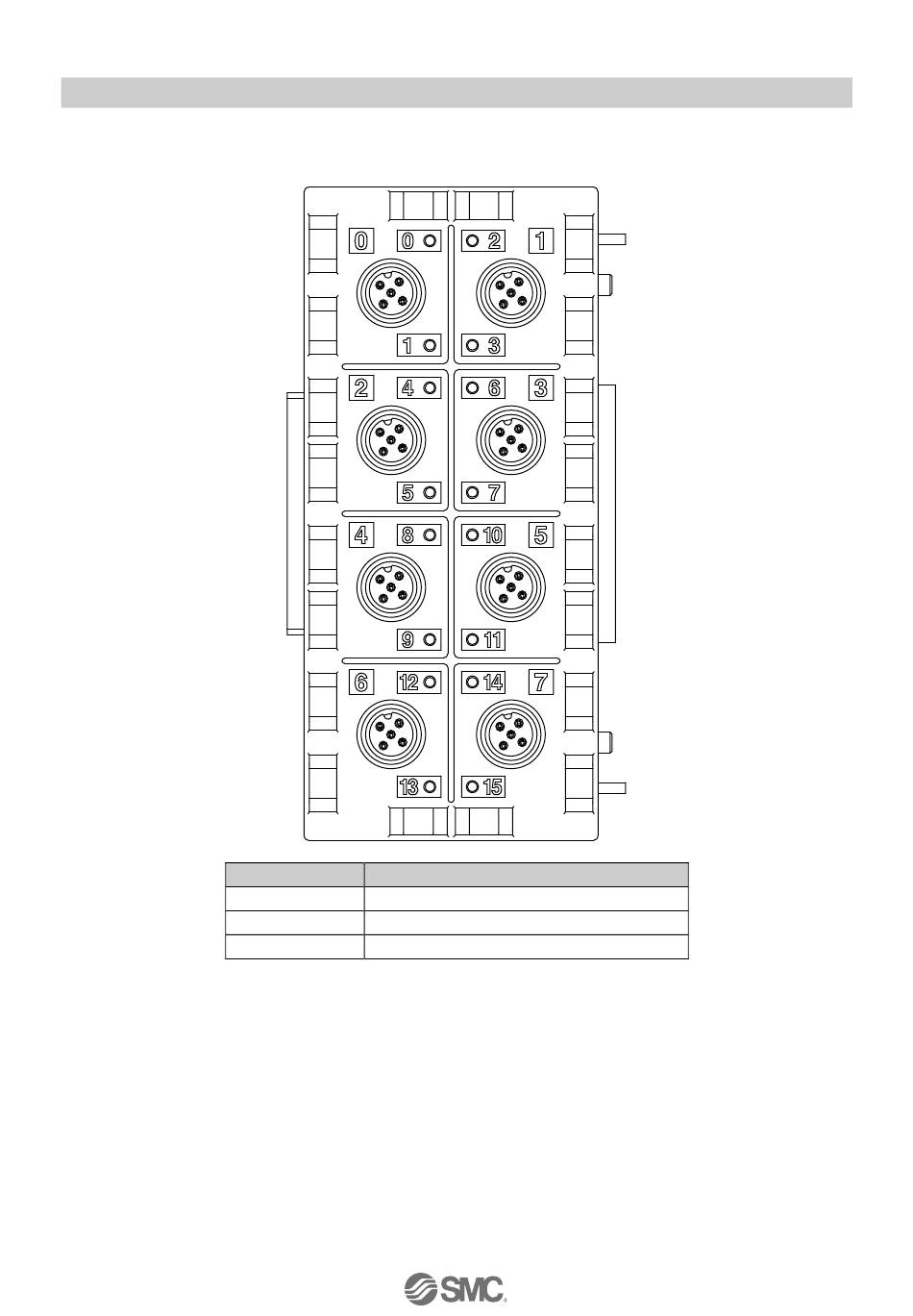

The status indicators are arranged on the EX245-DX1 as shown in the illustration below.
0 to15
OFF
Input is not activated and no errors.
Green ON
Input is activated.
Red ON
Short circuit is detected.
Fig. 11-2 Status indicators of the EX245-DX1
Description
- 73 -
No.EX##-OMY0004
