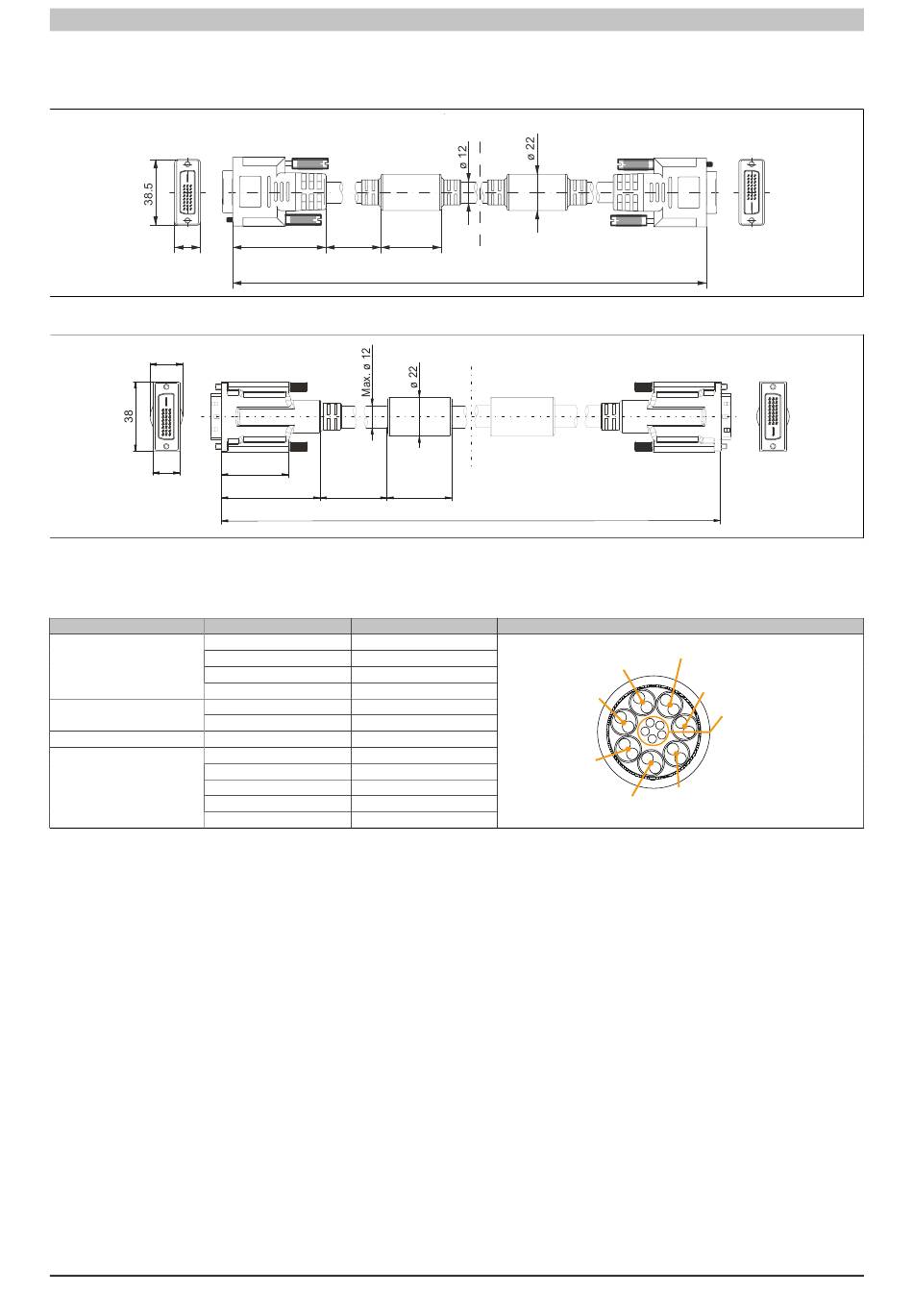

6.5.4.1.5 Dimensions
All dimensions in mm.
15.5
19
15
6.5.4.1.6 Construction
Element
DVI
USB
Data
Control wires
Automation PC 2200 User's manual V 1.05 Translation of the original documentation
110 ± 10
54 34
Figure 74: 5CASDL.0xxx-03 ≥ Rev. E0 - Dimensions
36.5
55 37.5
110 ±10
Figure 75: 5CASDL.0xxx-03 ≤ Rev. D0 - Dimensions
Pinout Cross section
TMDS data 0 26 AWG
TMDS data 1 26 AWG
TMDS data 2 26 AWG
TMDS clock 26 AWG
XUSB0 26 AWG
XUSB1 26 AWG
SDL 26 AWG
DDC clock 24 AWG
DDC data 24 AWG
+5 V 24 AWG
Ground 24 AWG
Hot plug detection 24 AWG
Table 223: 5CASDL.0xxx-03 SDL flex cables - Construction
Length
±2.5
Length
TMDS data 2
TMDS clock
XUSB1
Accessories
TMDS data 1
TMDS data 0
Control wires
- DDC clock
- DDC data
- +5 V
- Ground
- Hot plug detect
SDL
XUSB0
