6.5.6.1.6 Cable pinout
Warning!
If you wish to assemble a suitable cable yourself, the cable must be wired according to this pinout.
If a field-assembled cable is used, B&R cannot guarantee its functionality. Functionality is only guar-
anteed for the cables available from B&R.
DVI-D (24+1), male
Automation PC 2200 User's manual V 1.05 Translation of the original documentation
Pinout
DVI-D (24+1), male
Cable shield

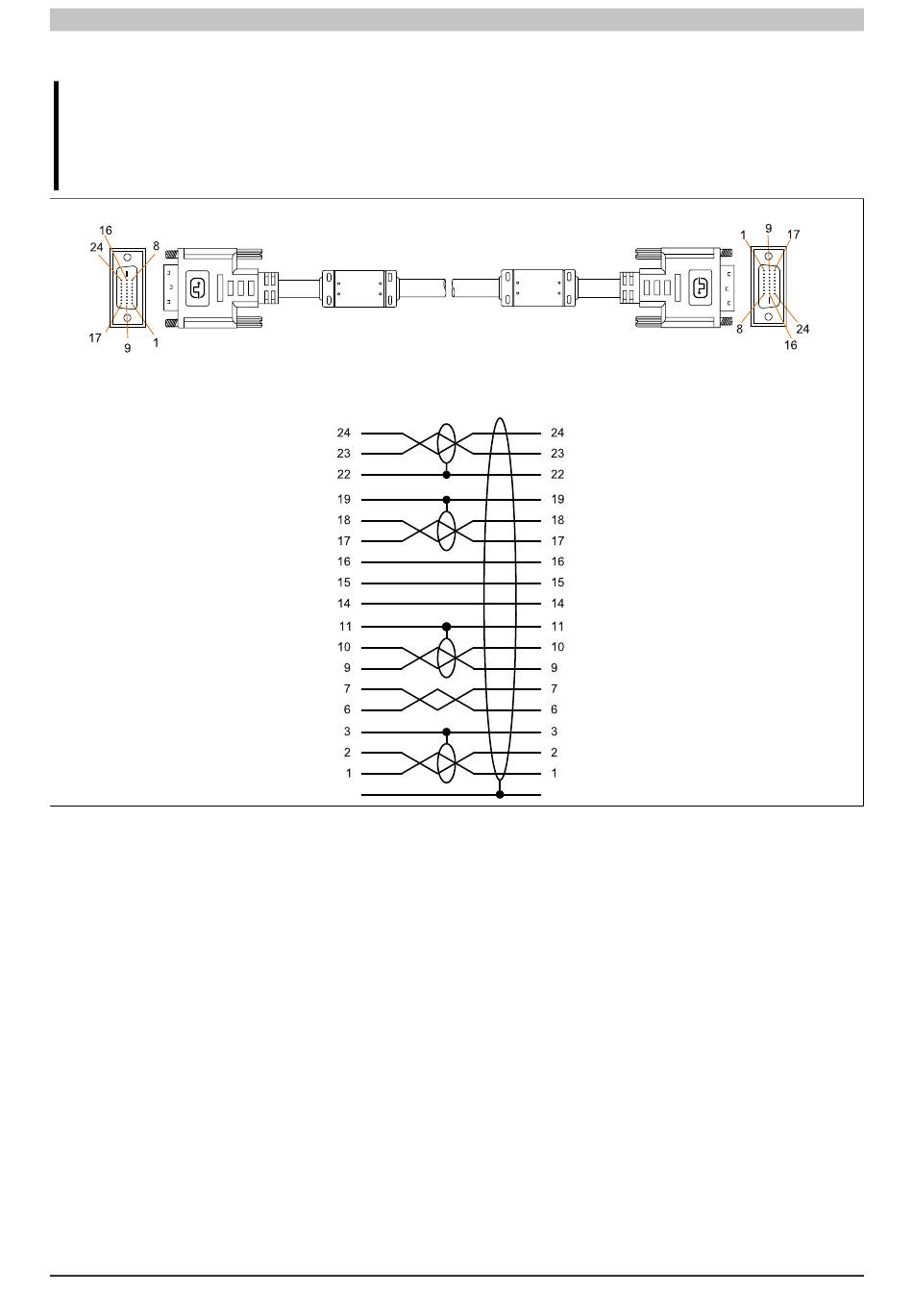

Figure 84: 5CADVI.0xxx-00 - Pinout
DVI-D (24+1), male
Cable shield
Accessories
DVI-D (24+1), male
