Input/Output Configuration on SM-DIN/Smart Matrix

This function allows you to configure the input/output signals of all the SM-DIN Boards
normally open (NO) or normally closed (NC) contacts.
It also allows you to configure the output relay of SMART MATRIX terminal as normally open (NO) or
normally closed (NC) contact.
Input/Output Configuration on SM-DIN/Smart Matrix

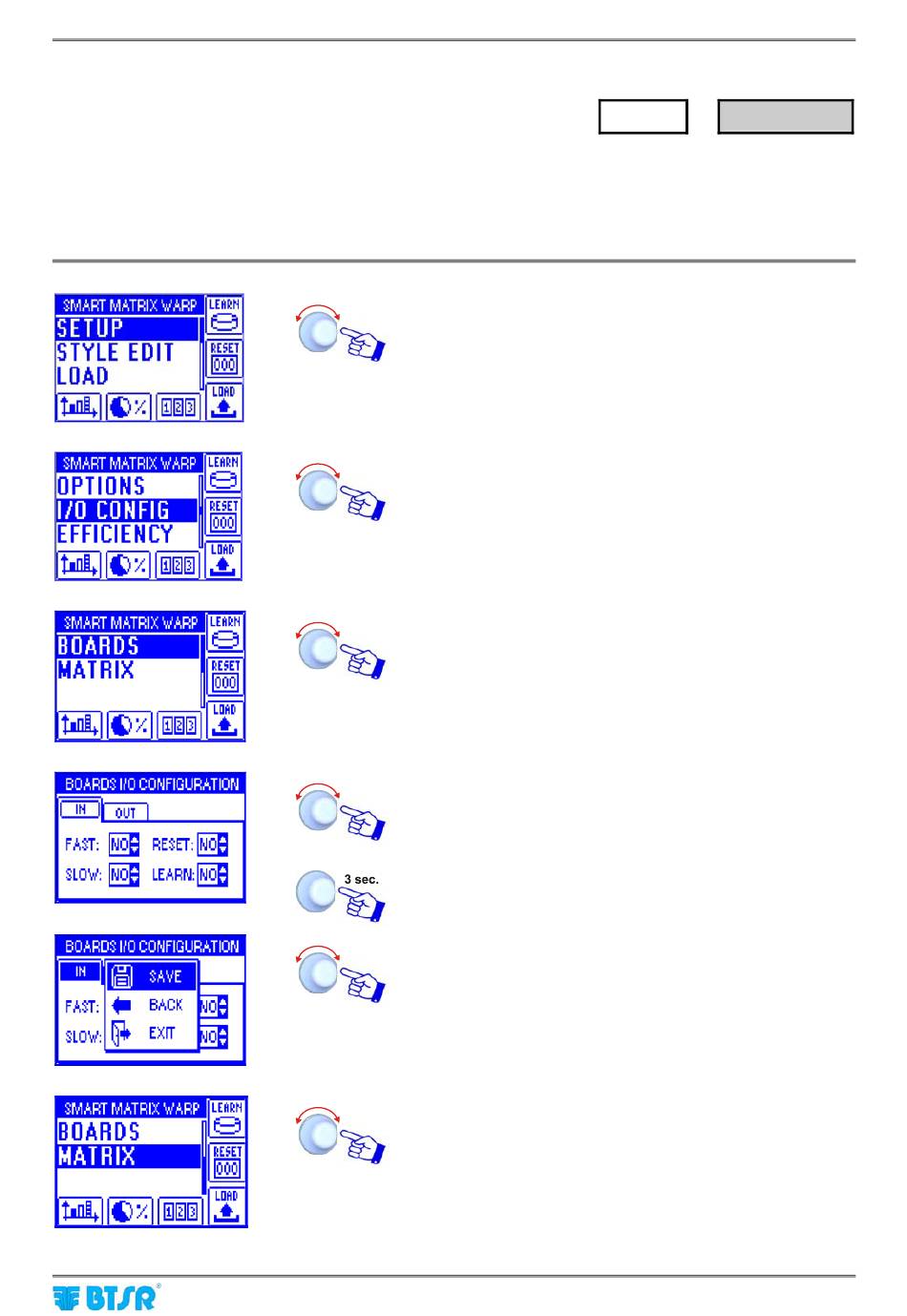

Enter the SETUP menu.
Select I/O CONFIG.
Select BOARDS.
Configure the input signals within the
output signal within the
To activate the save function.
SAVE to save the choice,
screen without saving,
Select MATRIX.
SMART MATRIX
→
SETUP I/O CONFIG
(BOARDS
IN window and the
OUT window, as NO or NC.
BACK to return to the previous
EXIT to return to menu.
option) as
- 2-23 -
