SMART MATRIX ↔ SM-DIN/PC/DISPLAY Interface

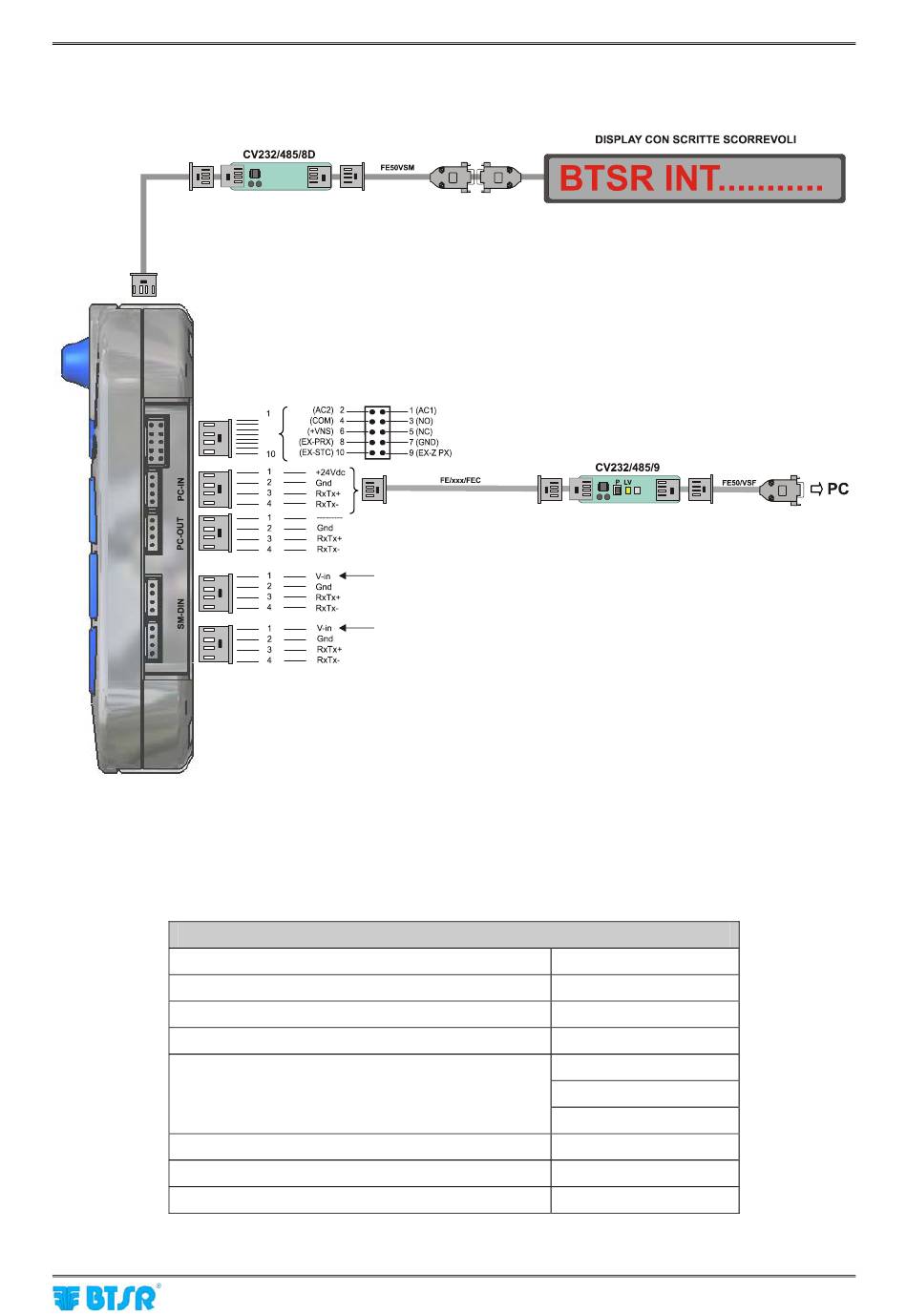

The following figure shows the electrical interface (pin assignment) of Smart Matrix terminal.
(*) Press the P button to setup the communication speed on CV232/485/9:
- LED LV with single flashing
- LED LV with double flashing
(**) Not necessary for Warp application
Power supply voltage
Current absorption
Protection fuse (SMART MATRIX)
Protection fuse (Sensor power supply)
Inputs
Operating temperature range
Storage temperature
Overall dimensions
(**)
Supply voltage from SM-DIN
Supply voltage from SM-DIN
= 57.6 Kbps
= 115 Kbps
SMART MATRIX Terminal Technical Characteristics
SMART MATRIX
↔
SMART MATRIX SM-DIN/PC Interface
(*)
24 VDC ± 10%
100 mA Max
1.5 A
1.5 A
0 – 24 VDC
VIL Max 1.2 VDC
VIH Min 5 VDC
+10° / +60° C
-25° / +85° C
140x80x31 mm
