btsr SMART MATRIX WARP Operating Manual page 35

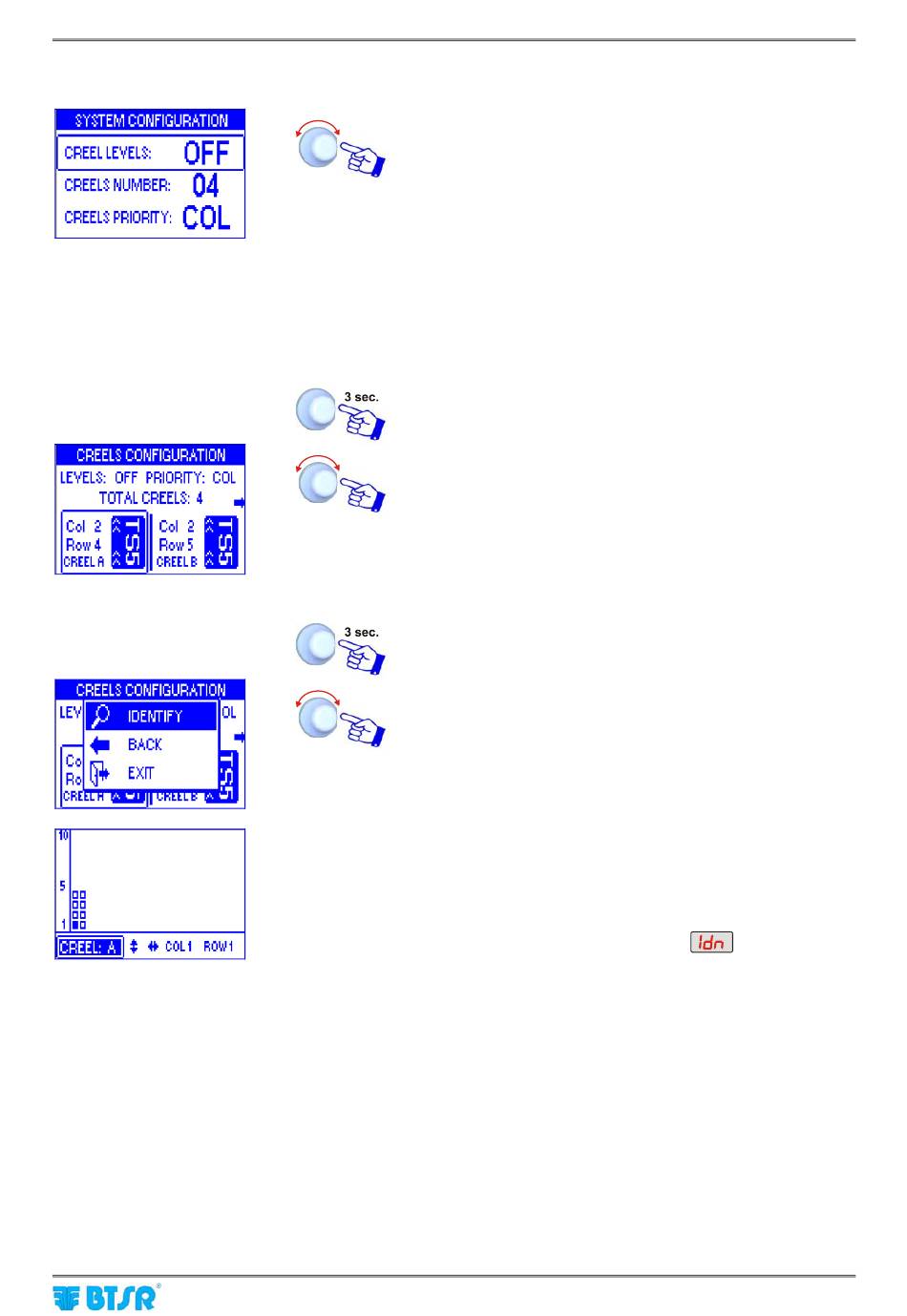

Example with CREEL LEVELS parameter = OFF (1 creel level)
Sensor Configuration and Numbering
•
Point and select CREEL
•
Set the number of
CREEL LEVELS = OFF].
•
Point and select CREELS NUMBER
•
Set the CREELS NUMBER
•
Point and select CREELS PRIORITY
•
Choose the desired priority (Rows, Columns, Bars)*
* The ENDS option refers to a special configuration that
cannot be used in a general way
SAVE to save the settings,
previous screen without saving,
menu
•
Point CREEL A
•
Select Col field.
•
Set the number of Columns for Creel A.
•
Select the Row field
•
Set the number of Rows of Creel A.
•
Point CREEL B and so on for all the used creels.
Once you have configured all the creels.
IDENTIFY to start the sensor identification.
•
The example shown indicates that the numbering
(identification) procedure of the 8 sensors belonging to
creel A is going to start. The flashing small square
indicates the sensor located on "Column 1 - Row 1 -
Creel A".
•
The display of all Boards will show
•
The green led will flash on all sensors.
•
Shim the touch light of the sensor corresponding to
"Column 1 - Row 1 - Creel A" position; The sensor's led
changes from flashing green to red.
•
On SMART MATRIX display the small square of sensor
located on "Column 1 - Row 2 - Creel A" starts flashing.
•
Shim the touch light of the relevant sensor and continue
with the numbering of all sensors.
At the end of the numbering operation, the configuration
menu will re-appear.
SMART MATRIX
LEVELS.
CREEL LEVELS [in this case
[Allowed values: 01 ÷ 26]
BACK to go back to the
EXIT to go back to the
- 2-13 -
