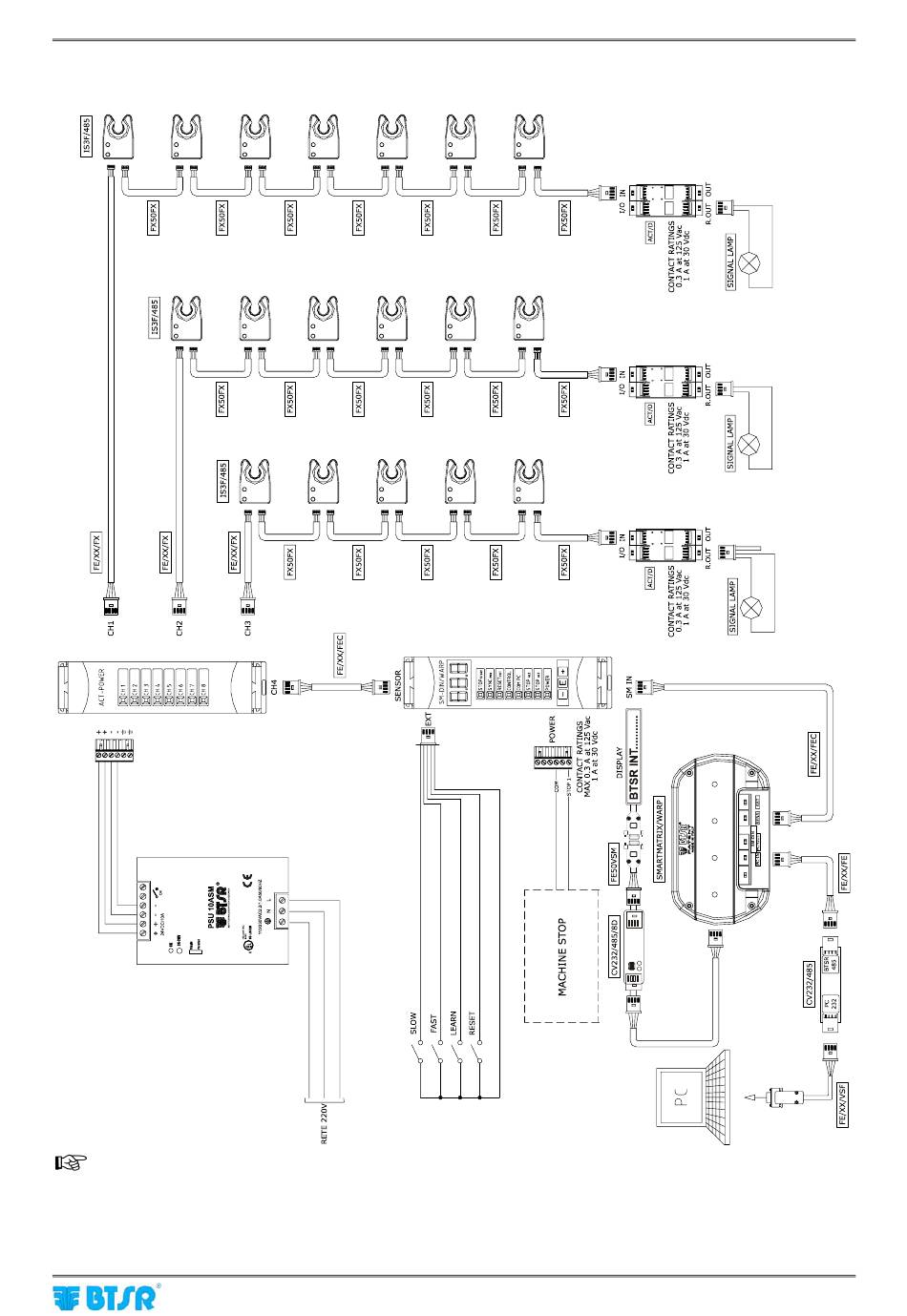

SMART MATRIX WARP Generic Application Diagram (IS3)
SMART MATRIX WARP Generic Application Diagram (IS3)
On the example shown, the power supply of the entire system is provided by the PSU 10 ASM power
supplier, by means of the ATC POWER unit, whereby it does not have to be provided on PINs 1 and 2
of SM-DIN WARP unit Power connector.
SMART MATRIX
- 1-9 -
