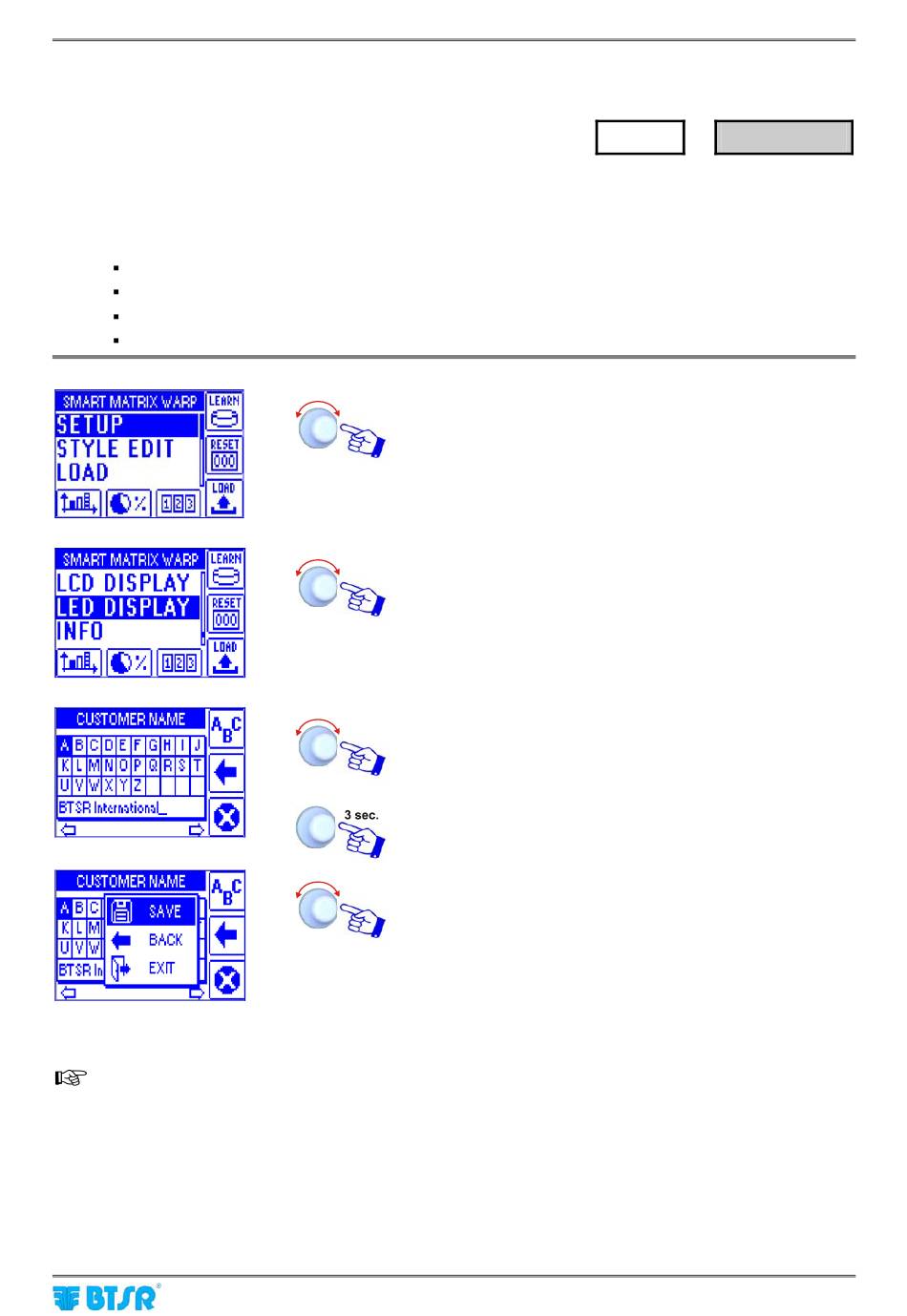

LED Display setup

This function allows you to set the Customer name that will appear as a sliding text on the external display.
Besides the name set with this function, the display will visualize in sequence a series of information about
the system status:
Number of working yarns
Process efficiency
Coordinates (row, column, etc) of the possible errors
Possible system errors (ERR RAM, etc)
For correct external display connection, please refer to Section 1.
Enter the
SETUP
menu.
Enter the
LED DISPLAY
Set the desired name as explained on "3 – Entering
Alphanumeric Values" paragraph
To save the setting
SAVE
to save,
BACK
to go back to previous screen without saving,
EXIT
to go back to the menu.
SMART MATRIX
LED Display setup
SETUP
LED DISPLAY
menu.
