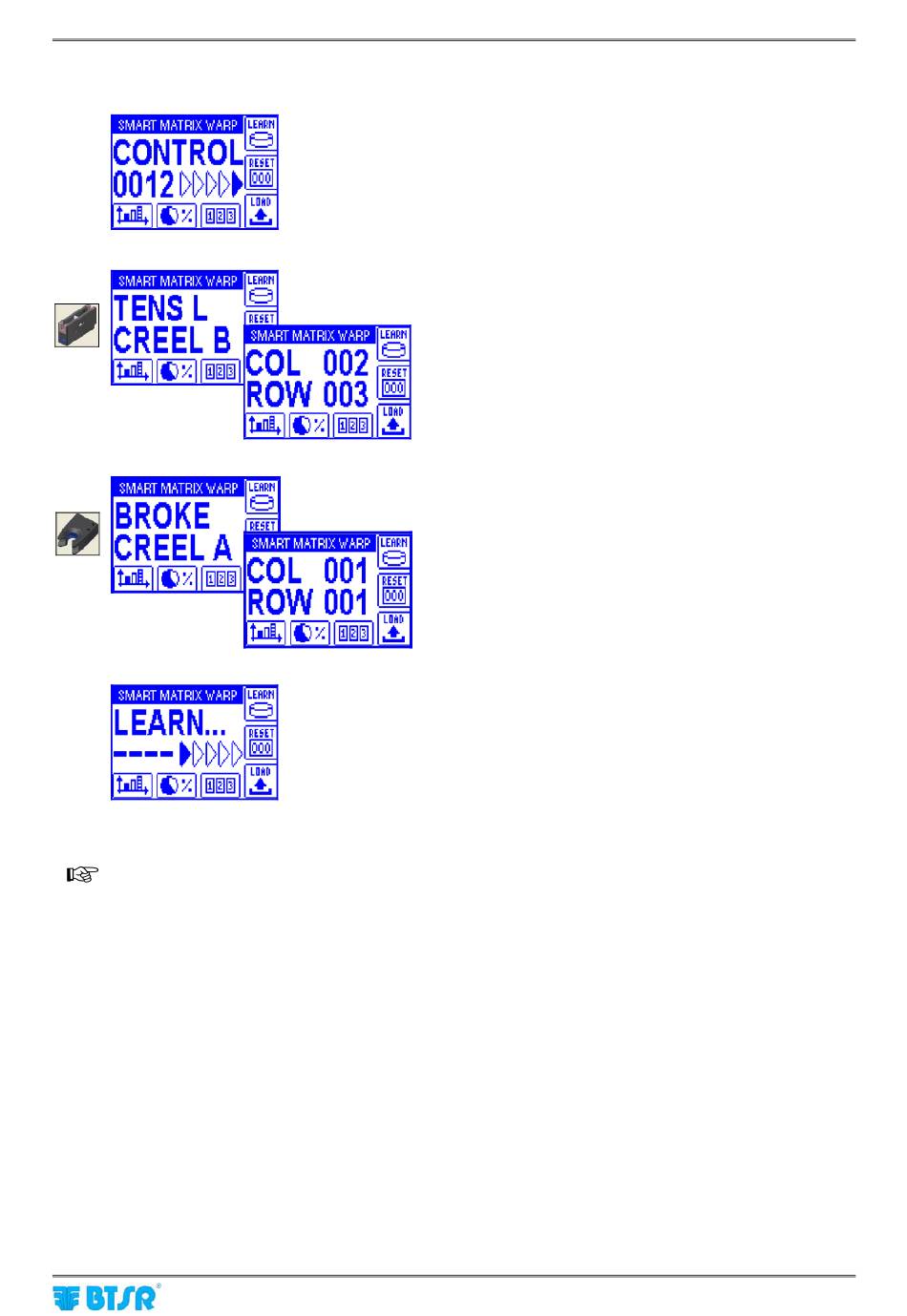

Interpretation of Operating Screens
For more details about Error images, please refer to paragraph "SMART MATRIX Error Messages"
on Section 2.
•
System working in Control status
•
No errors detected!
•
0012 = 12 active sensors
•
Tension Low error
•
Coordinates of sensor that detected the error:
Column 2
Row 3
•
Yarn Broken Error (BROKE) on
•
Coordinates of sensor that detected the error:
Column 1
Row 1
•
Learning in progress!
At the end of the learning process, the number of detected sensors will
appear instead of ----.
SMART MATRIX
SMART MATRIX WARP Operation
(TENS L) on
(COL 002)
(ROW 003)
(COL 001)
(ROW 001)
CREEL B
CREEL A
