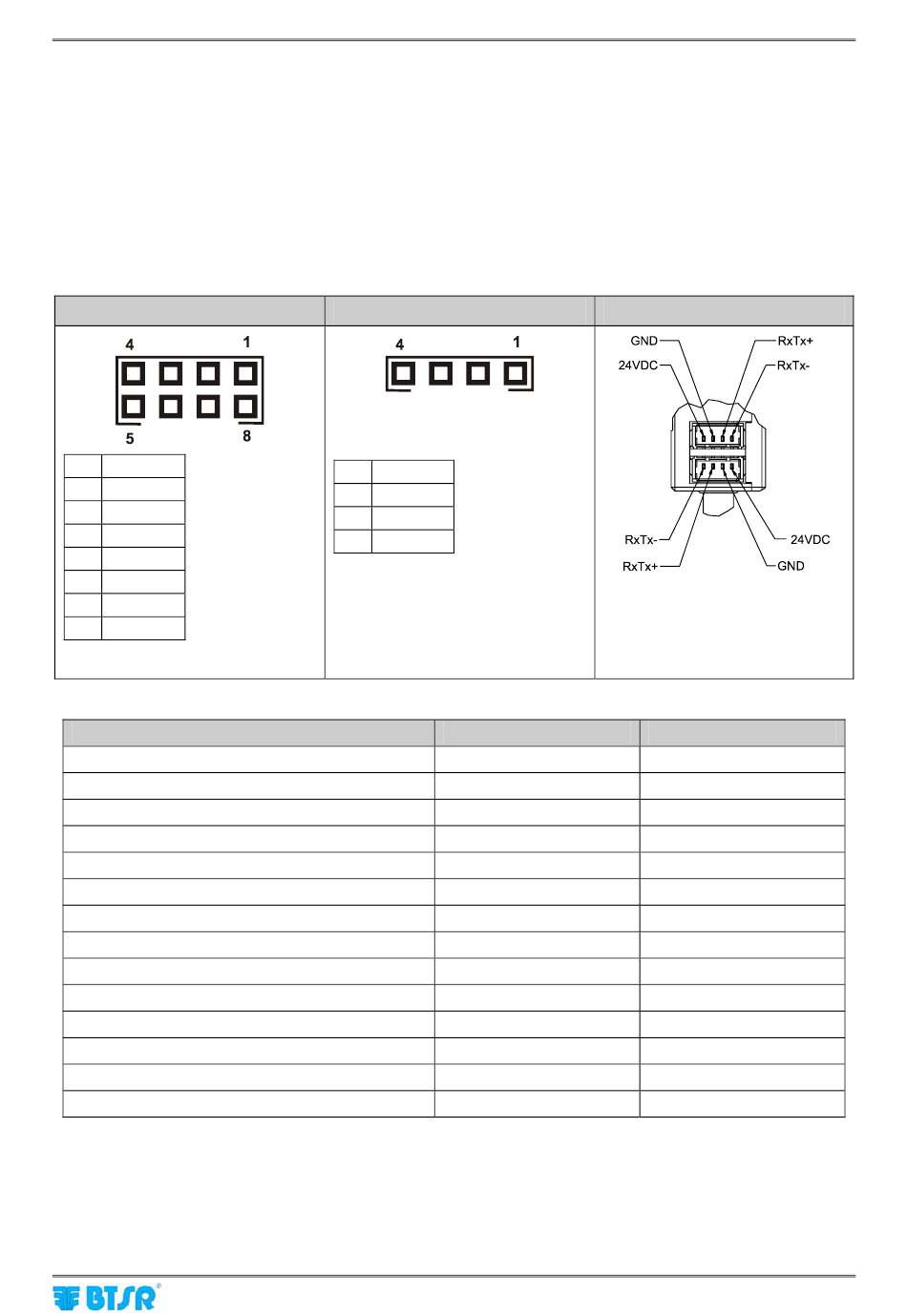

Differences between TS5 and TS7 Sensors

The TS5 and TS7 sensors are basically identical in terms of functionality, performance, control parameters,
etc. The only difference being the electrical interface:
TS5 = Built-in cable with either 4 or 8 pin
TS7 = 2 built-in connectors for "daisy-chain" connection (like IS3F)
(*) The 8 pin connector is not used on SMART MATRIX WARP application.
TS5 8 pin
1 +VCC
2 GND
3 RX TX+
4 RX TX-
5 STOP
6 GND
7 ANAL.
8 ENABLE
Technical Characteristics
Power supply voltage
Current absorption
Analogic output (only for TS5 – 8 pin)
Analogic output resistance (only for TS5 – 8 pin)
Operating temperature range
Storage temperature range
Tension range
Useful tension range
Max applicable tension
Drift error
Repeatability error
Max linearity error
Communication bus
Overall dimensions
Differences between TS5 and TS7 Sensors
(*)
connector
TS5 4 pin
1 +VCC
2 GND
3 RX TX+
4 RX TX-
TS5
12-24 VDC ± 10%
45 mA Max
100 mV – 5 V
1K Ohm
+10° / +50°
-25° / +85°
0 – end scale
0% - 95% end scale
10 times end scale
0,05%/°C
0,5%
1% (0 – end scale)
RS485
50x25x12,5 mm
SMART MATRIX
TS7
TS7
24 VDC ± 10%
30 mA Max
----
----
+10° / +50°
-25° / +85°
0 – end scale
0% - 95% end scale
10 times end scale
0,05%/°C
0,5%
1% (0 – end scale)
RS485
50x25x12,5 mm
