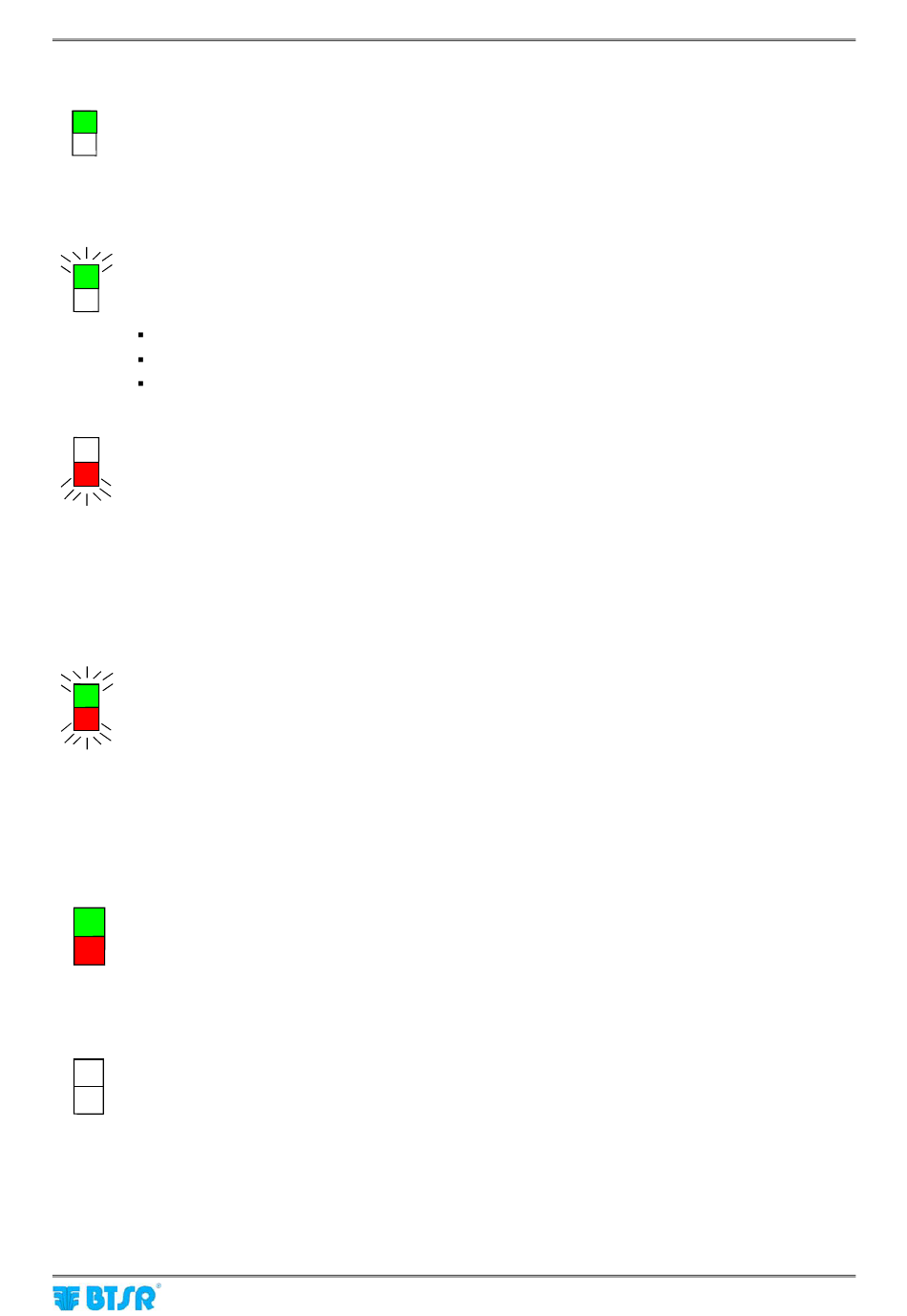

Interpretation of the Signaling Lights Located on the Sensors
Green Led ON
Sensor under normal control;
No defects detected by the sensor either in Control on Monitor mode.
Green LED FLASHING
Sensor under automatic numbering procedure.
Sensor in Delay Control phase
Sensor disabled
Red LED FLASHING
During the machine operation either in Control or Monitor mode the sensor detected a failure
condition.
1 flash
2 flashes
Lit
Green LED FLASHING
Red LED FLASHING
During the machine operation either in Control or Monitor mode the sensor detected a failure
condition.
1 flash
2 flashes
Green Led ON
Red Led ON
Sensor locked. Switch off and on the system. If the condition persists, replace the sensor.
Green LED OFF
Red LED OFF
Sensor not powered.
TENS H
PEAK H
NOYARN (yarn missing)
TENS L
PEAK L
SMART MATRIX
TS5/TS7 Sensor Features
