SMART MATRIX WARP Operation

All the Configuration, Parameter Setting, Data & Error Display operations, etc. can be managed by the
Operator in quick and intuitive way, using the SMART MATRIX WARP control terminal.

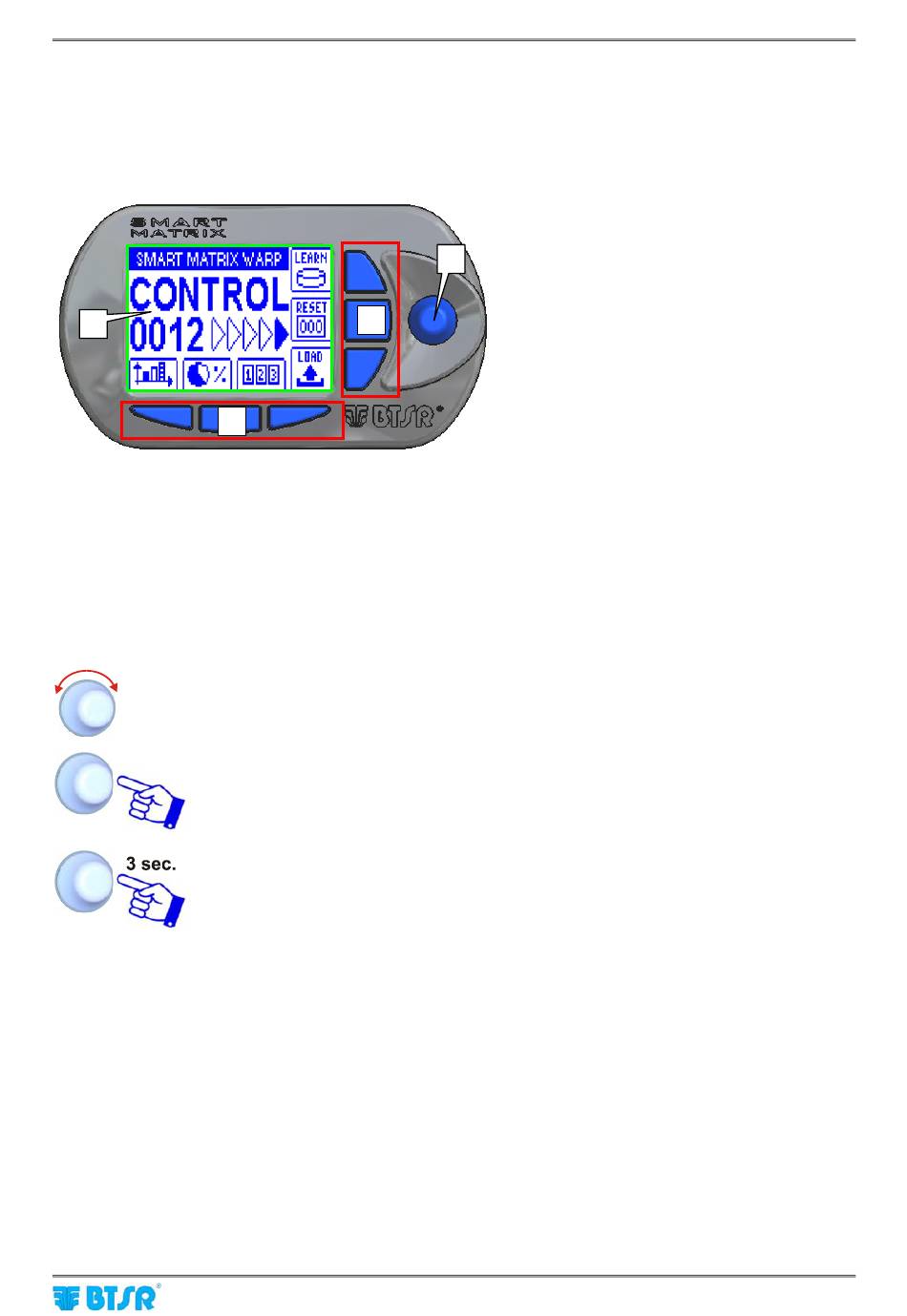

The SMART MATRIX ↔ Operator interface consists of:
A
B
How to Use the Rotary Selector
The selector provides both: "pointing" and "data entry" functions.
Turn the selector to select a menu item / function / parameter within the configuration
screens, etc.
Rapid click: to confirm the selection.
Hold (3 seconds): keep the button pressed to switch from Control status to Interactive
status and viceversa, return to the previous menu level, activate the data setting
window, etc.
A - Graphic display showing:
C
B
B - 6 buttons for:
C - Multi-function rotary selector.
SMART MATRIX
SMART MATRIX WARP Operation
• menus,
• operating states,
• operation parameters,
• error messages, etc.
• graphic information (sensors map, etc.)
• immediate activation of particular
functions
• increment/decrement speed-up
(shortcuts)
