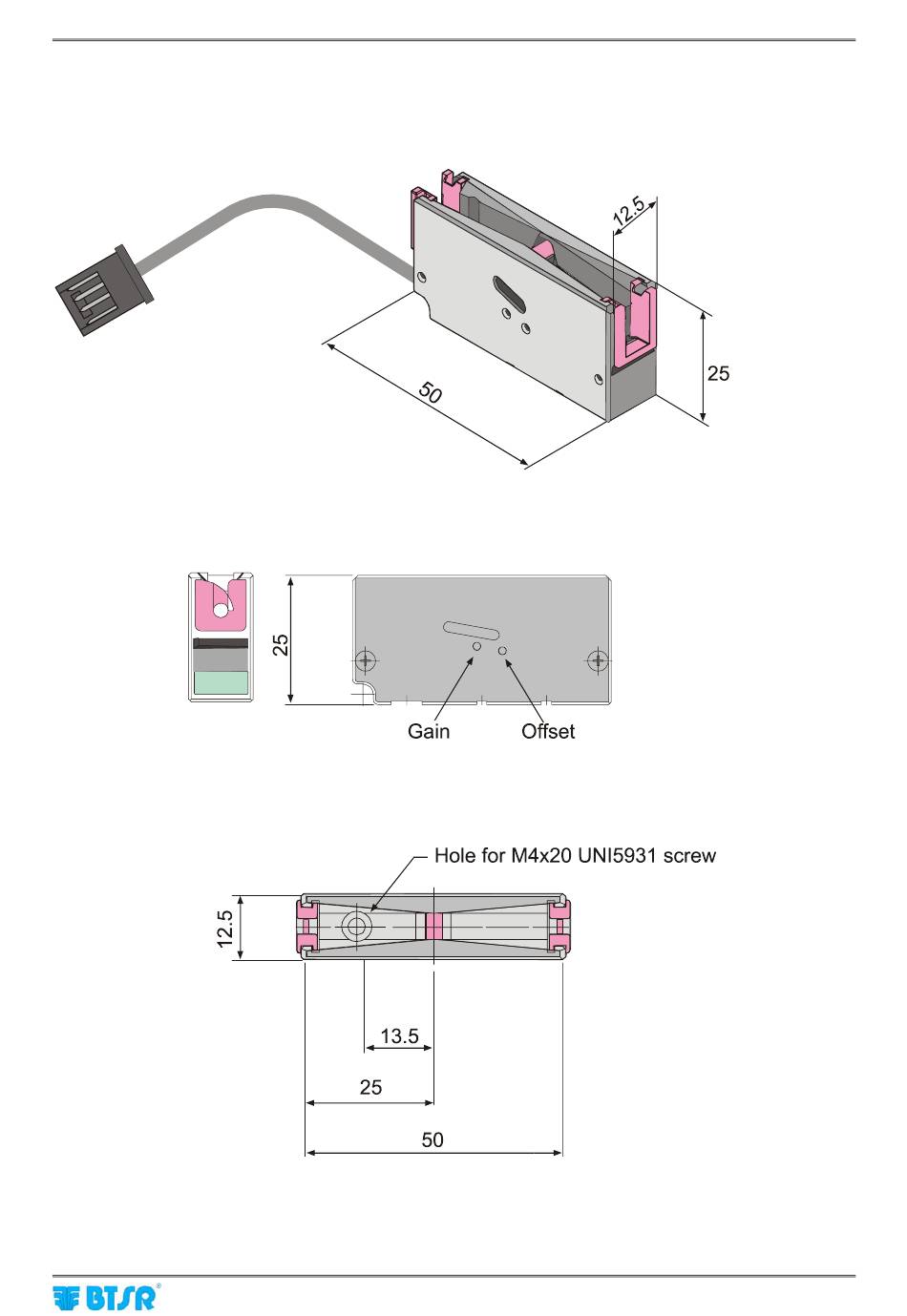

Mechanical Characteristics of TS5/TS7 Sensors
Sizes (mm)
(*)
(*)
The cable with external connector identifies the TS5 version: for more details, please refer to the
Differences between TS5 and TS7 Sensors paragraph.
SMART MATRIX
TS5/TS7 Sensor Features
- 3-6 -
