btsr SMART MATRIX WARP Operating Manual page 25

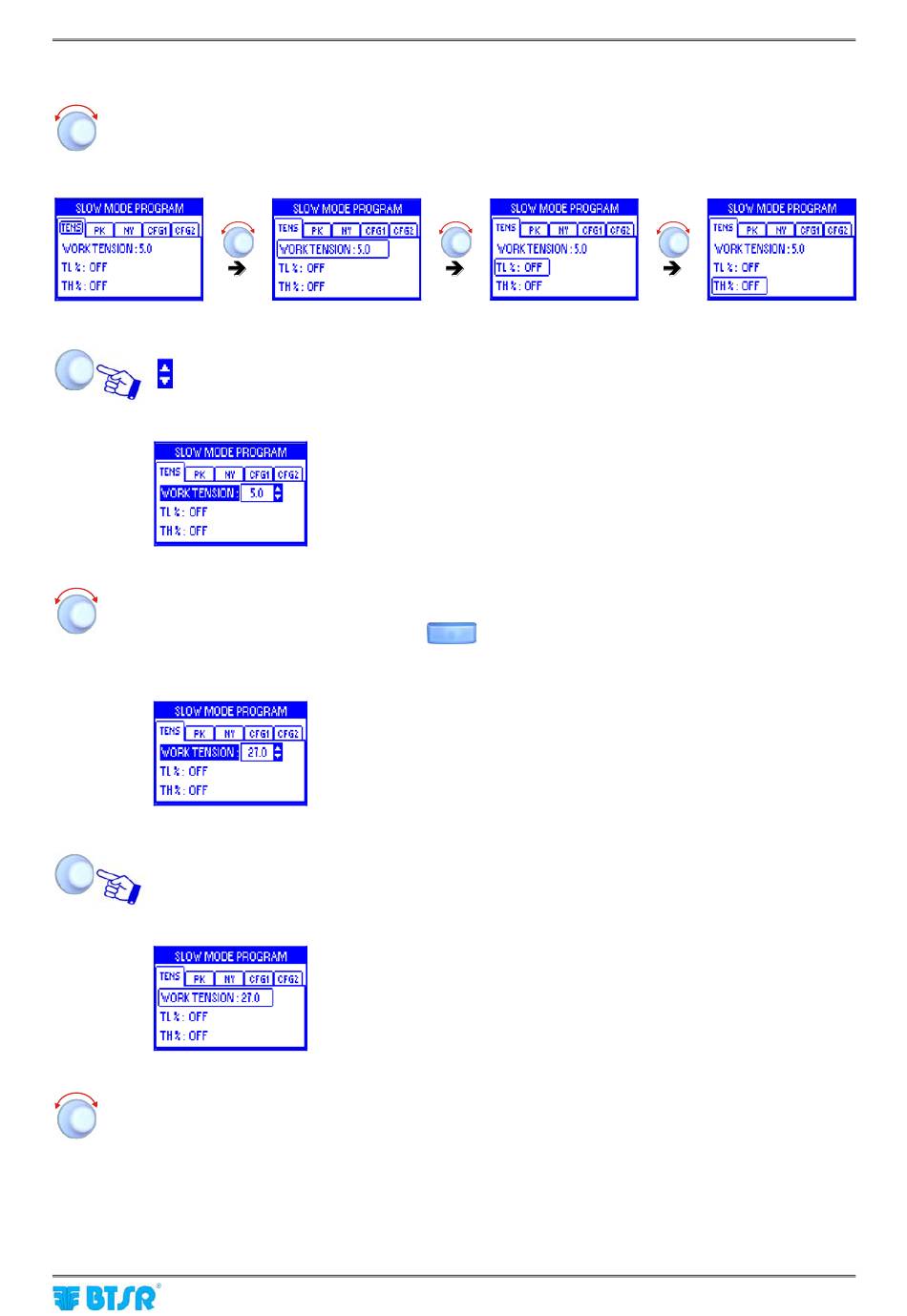

1 – Navigation inside the Selected Window (TENS)
Turn the selector to "Point" in sequence the various items of the window
→
(TENS
The frame indicates the "Pointed" field.
Click to "Select" the pointed item. The field name will be shown in reverse and the symbols:
appear to the right of the field value.
Example:
Turn the selector either to Clockwise direction to increase the value, or to Counterclockwise
direction to decrease it (resolution 0.1).
Turn the selector holding the button
quickly.
Example:
Once you have set the desired value (e.g. 27.0), click to confirm.
Example:
Turn the selector to select a new field and so on......
→
WORK TENSION TL%
WORK TENSION
New value of
WORK TENSION
SMART MATRIX
SMART MATRIX WARP Operation
→ TH%).
field selected (reverse)
pressed to increase/decrease the value more
WORK TENSION
fileld no more selected
field = 27.0
- 2-3 -
