Options

This function allows you to choose the desired operation modes for sensor numbering and for style
parameter settings.
DEVICE ID MODE: (example with 3 creels and 120 total sensors)
NORMAL Sensor numbering within each creel
PROGRESSIVE Progressive sensor numbering
STYLE EDITOR MODE:
FAST/SLOW Possibility of using 2 different parameter sets, selectable with the FAST/SLOW
external signals
SINGLE Single parameter set utilization
For more details about FAST/SLOW signal synchronization, please refer to
Components and Configuration.

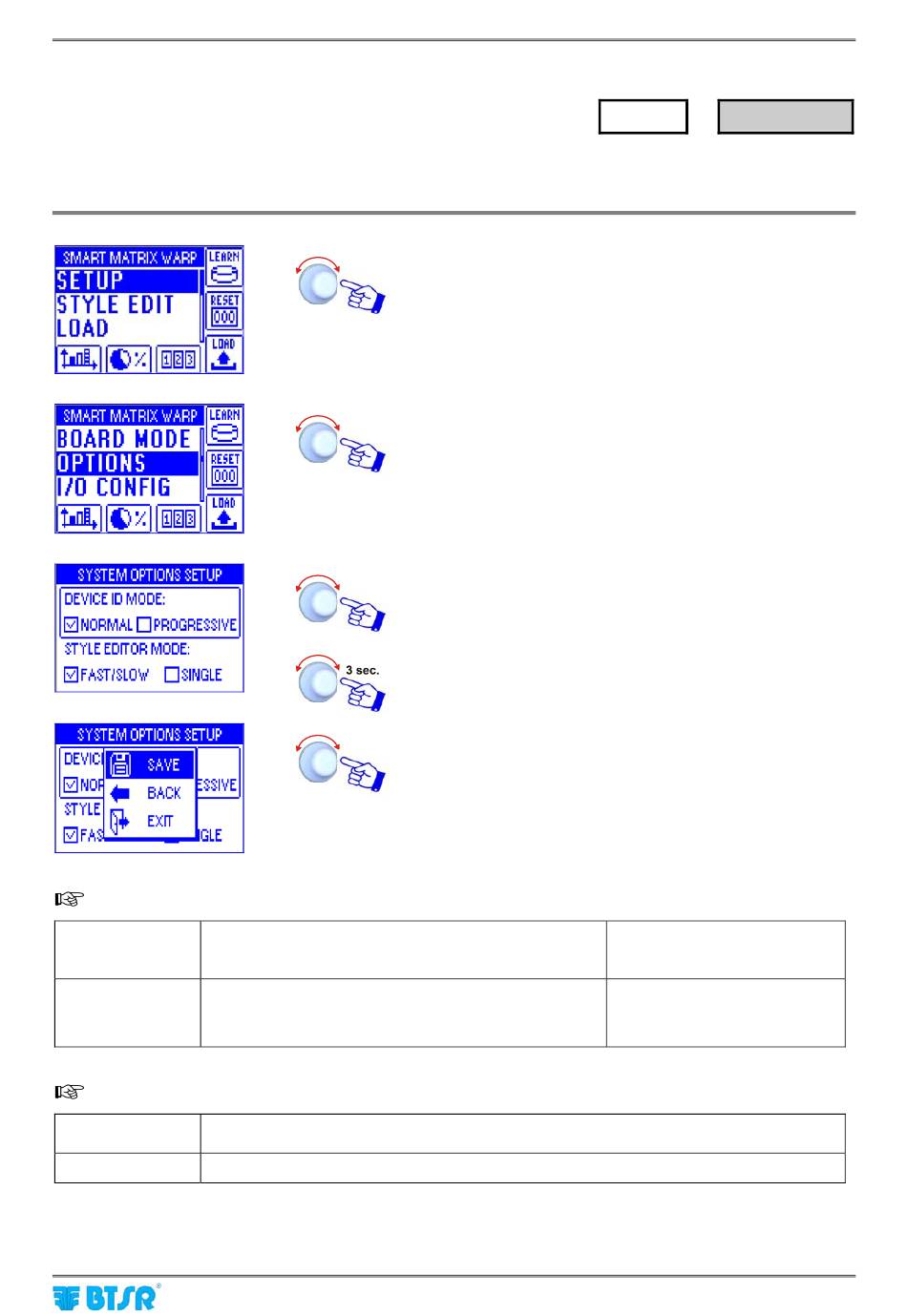

Enter the SETUP menu.
Select OPTIONS.
Set DEVICE ID MODE
and STYLE EDITOR MODE
(see the comment below)
To confirm the settings.
SAVE to save the settings,
screen without saving,
SMART MATRIX
→
SETUP
as NORMAL or PROGRESSIVE
as FAST/SLOW or
BACK to go back to previous
EXIT to go back to the menu
Creel A: ID 1 ÷ 40
Creel B: ID 1 ÷ 40
Creel C: ID 1 ÷ 40
Creel A: ID 1 ÷ 40
Creel B: ID 41 ÷ 80
Creel C: ID 81 ÷ 120
section 3 – System
Options
OPTIONS
SINGLE
