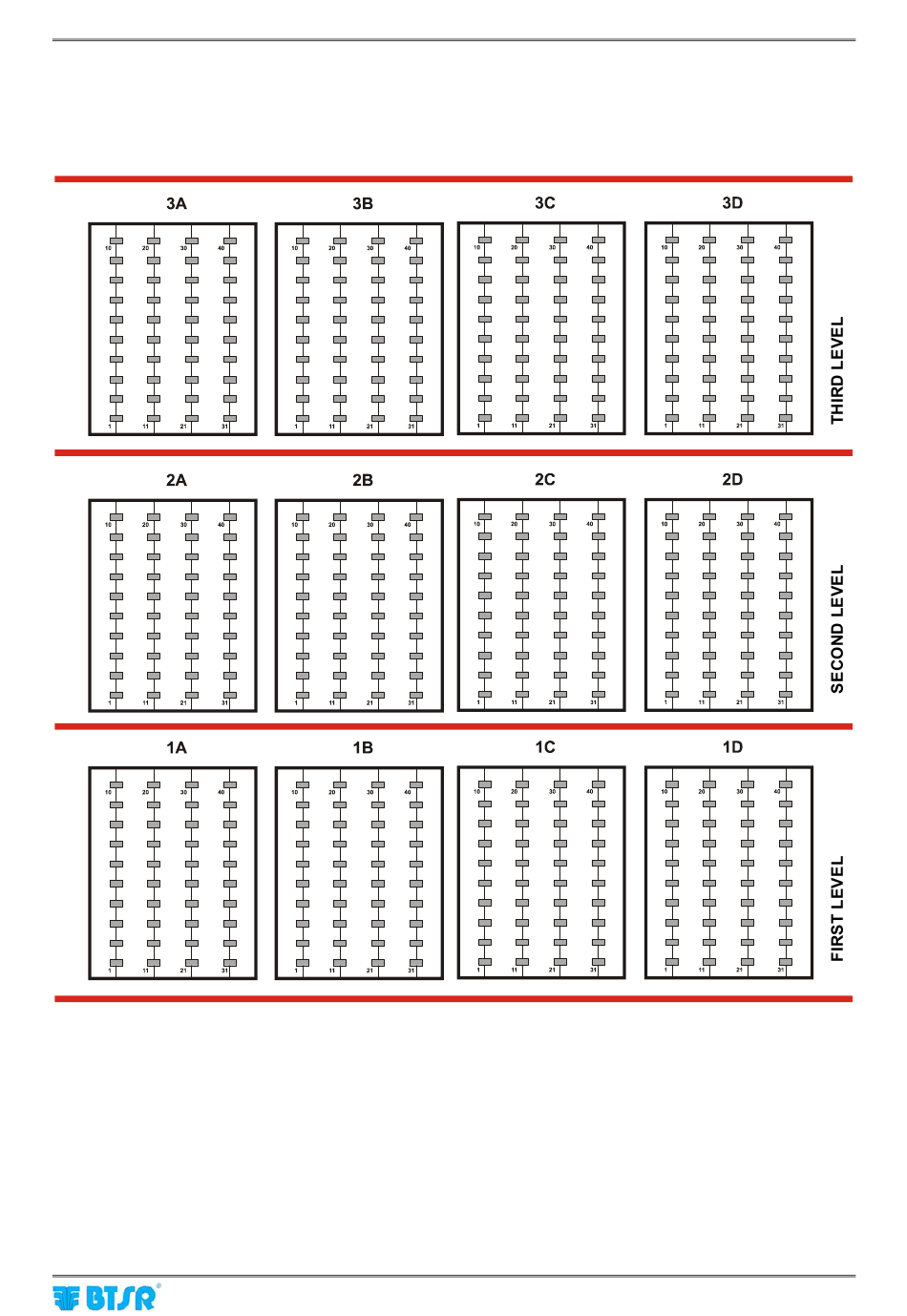

Example 4: Machine with 3 levels and 4 creels per level, each one with 40 sensors. In this case the
creels are identified as:
Machine Configuration (Creels, Rows, Columns, Bar)
1A, 1B, 1C, 1D for the first level
2A, 2B, 2C, 2D for the second level
3A, 3B, 3C, 3D for the third level
SMART MATRIX
- 3-18 -
