SM-DIN ↔ Machine Interface

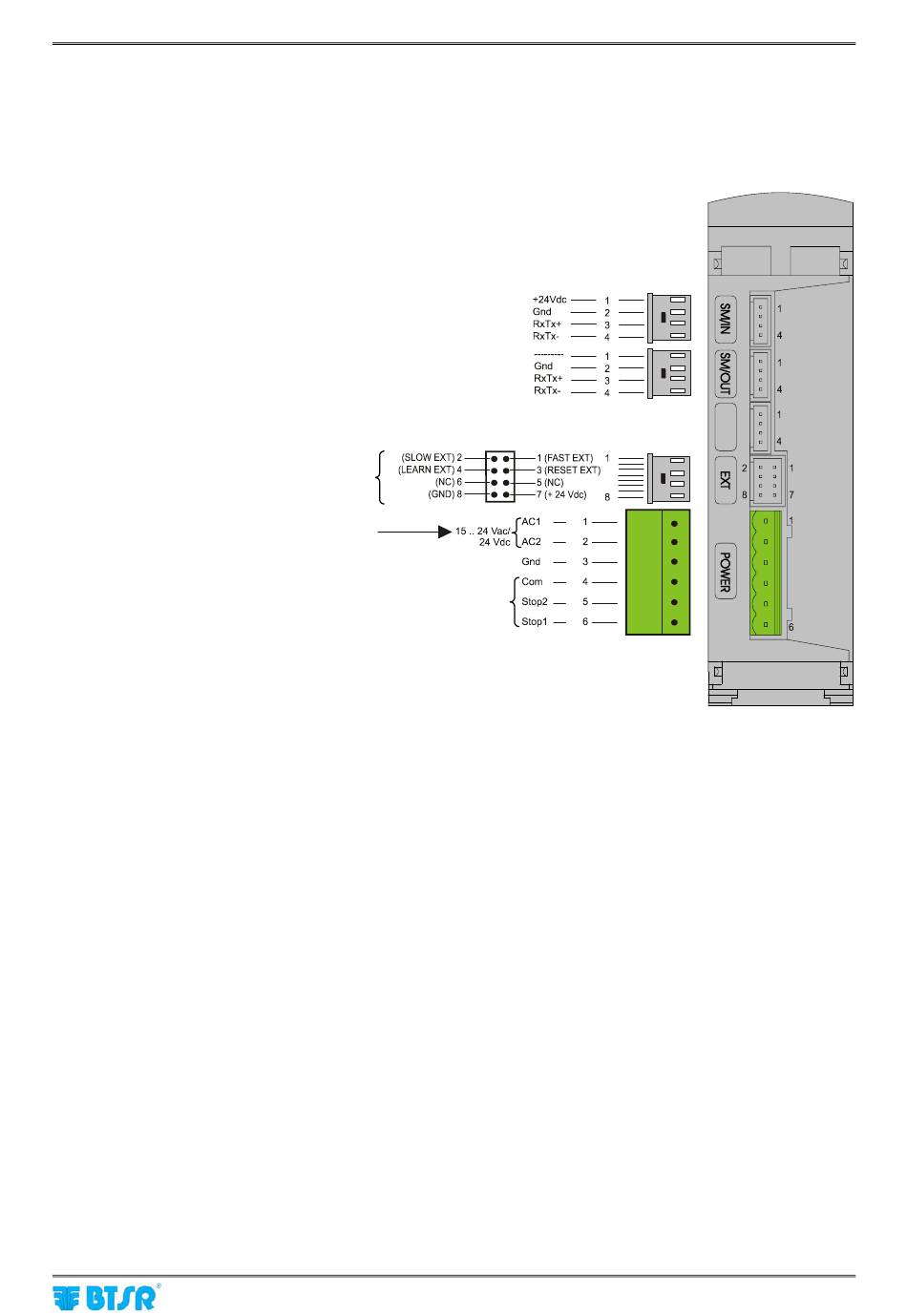

The following diagram shows the electrical interface (pin assignment) of SM-DIN Warp Board.
The sensor interface is shown on the following page.
Machine Interface
Power Supply (*)
Machine Interface
(OUTPUT)
(*)
Recommended power supply: 24 Vdc.
If the ATC POWER unit is used, the power supply on PINs 1 and 2 of Power connector must not be
provided, because the entire system is already supplied (through the ATC POWER module itself) by
the PSU 10ASM unit (please refer to diagrams on pages 1-9 and 1-10).
(INPUT)
SMART MATRIX
SM-DIN
Machine Interface
