As an alternative to the Rows/Columns configuration, it is possible to group the sensors on Bars and to
associate an ACT lamp with each Bar and/or to each Creel. In this case, it will be necessary to configure:
Bars Priority.
Bars Priority

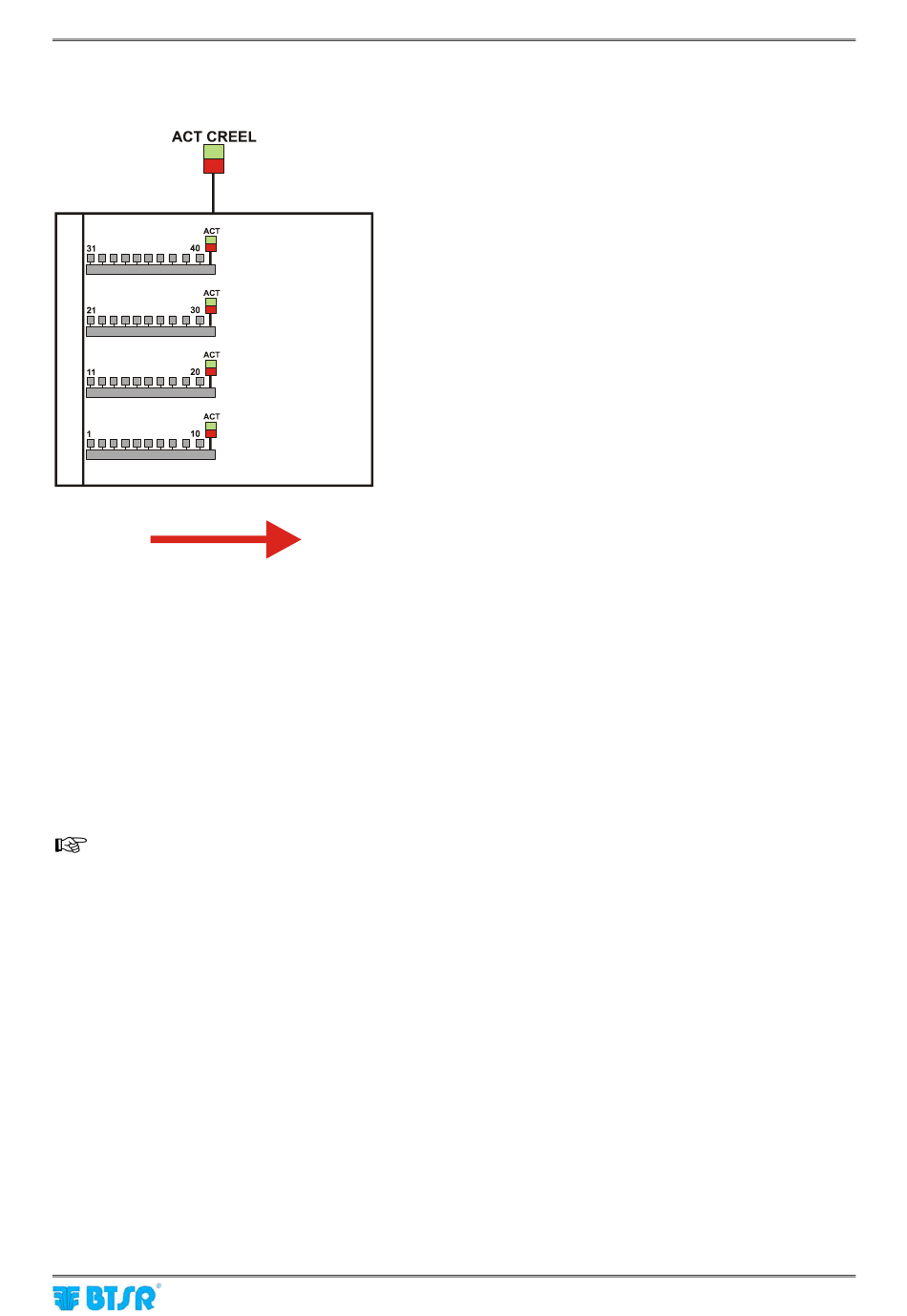

Example of creel with 40 sensors distributed along 4 bars of 10 sensors (Bars Priority).
ACT = Lamps associated with Bar
ACT CREEL = Lamp associated with Creel
The Creels can be configured in 2 different modes:
•
STANDARD
•
ADVANCED
STANDARD Mode:
ADVANCED Mode:
For more details, please refer to
Machine Configuration (Creels, Rows, Columns, Bar)
each creel can be configured only as a "Regular" matrix of rows/columns.
each creel can be configured with a variable number of sensors for each row (or
column).
Creel Mapping Section: Setup
