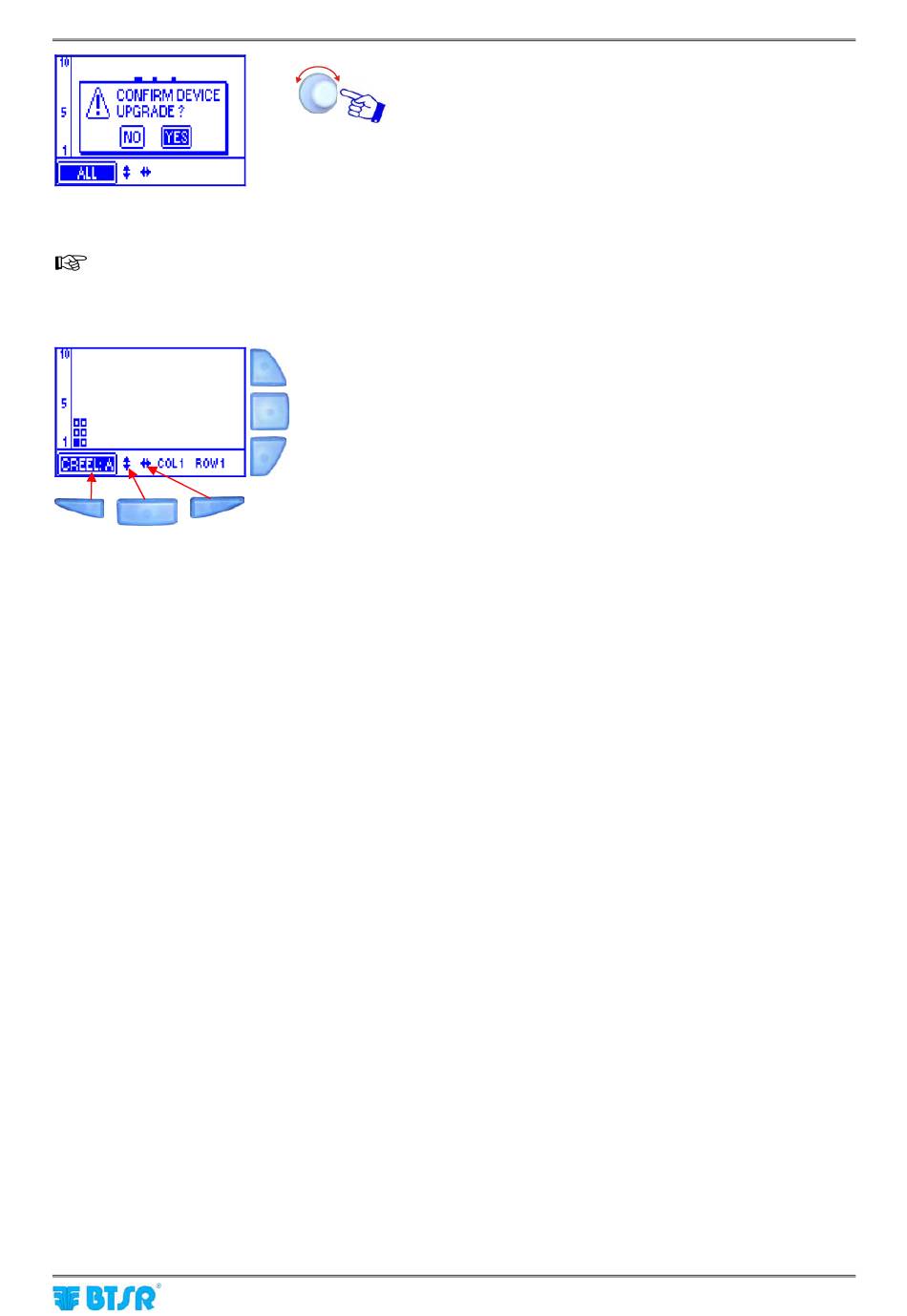

To select the sensor coordinates (Creel, Column and Row) you may use the lower "shortcut" buttons
or press in sequence the rotary selector.
Shortcut Buttons available to Speed-up the Selection
Creel
Column
Row
YES
to confirm the operation.
It selects all sensors of selected Creel/Column/Row.
It toggles the sensors selection status within the selected
Creel/Column/Row.
It clears all selections.
SMART MATRIX
Sensors Firmware Upgrade
- 2-34 -
