Input/Output Configuration on SM-DIN/Smart Matrix

This function allows you to configure the input/output signals of all the SM-DIN Boards
normally open (NO) or normally closed (NC) contacts.
It also allows you to configure the output relay of SMART MATRIX terminal as normally open (NO) or
normally closed (NC) contact.

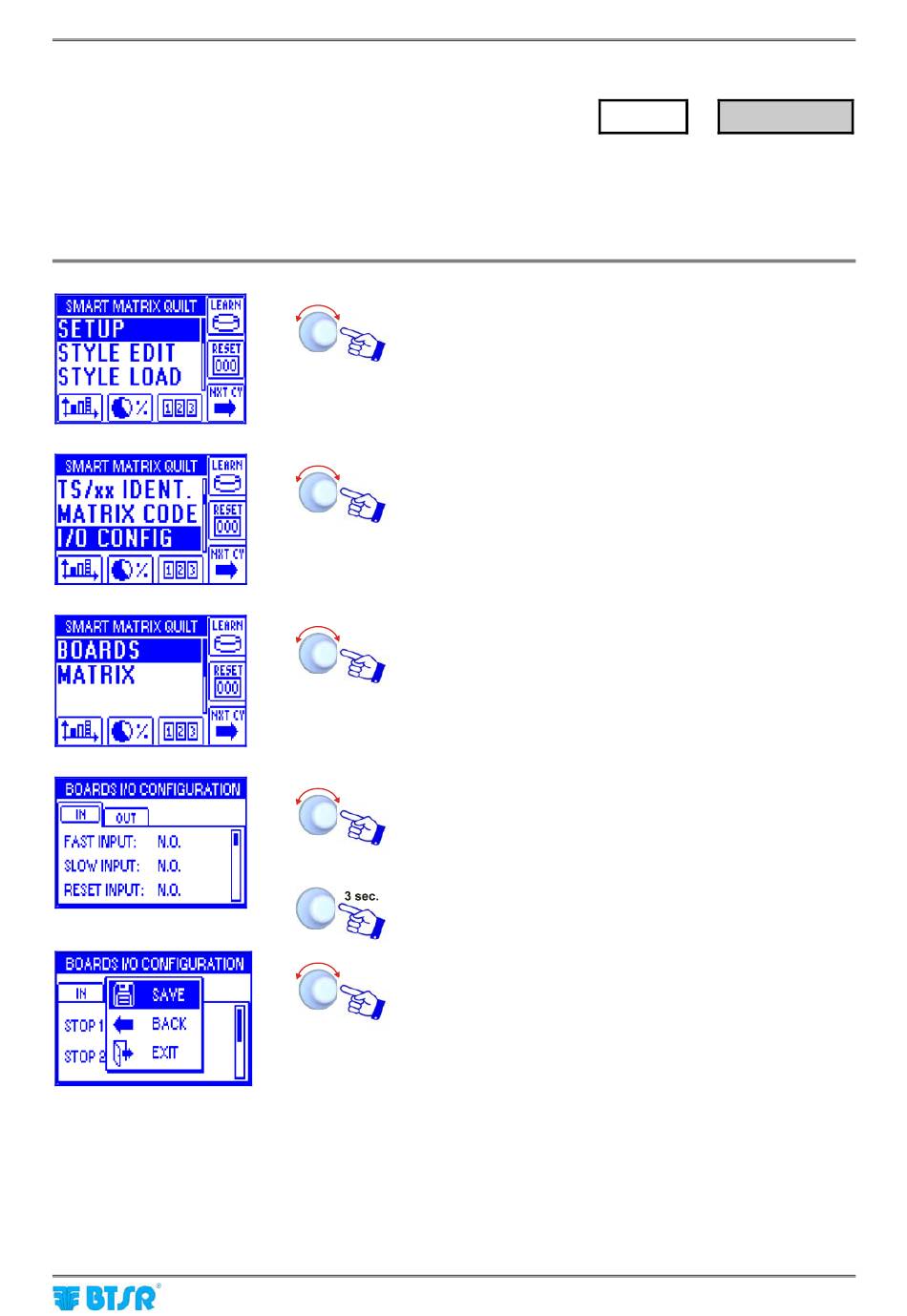

Input/Output Configuration on SM-DIN/Smart Matrix
Enter the
Select I/O
Select BOARDS.
Configure the input signals (FAST, SLOW, RESET,
LEARN, ZPX(*), PRX) within the
signals (STOP1, STOP2) within the
NC.
To activate the save function.
SAVE to save the choice,
screen without saving,
(*) ZPX is not used for QUILT application.
SMART MATRIX QUILT
SETUP
SETUP menu.
CONFIG.
IN
BACK to return to the previous
EXIT to return to menu.
→
I/O CONFIG
(BOARDS option) as
window and the output
OUT window, as NO or
2 - 12
