Offset TS5/TS7

This function, available for TS5/TS7 sensors only, allows you to carry out the calibration (offset), either on all
sensors or on the specified sensor.
Prior to start the calibration, remove the yarn from the loading cell of the involved sensors.

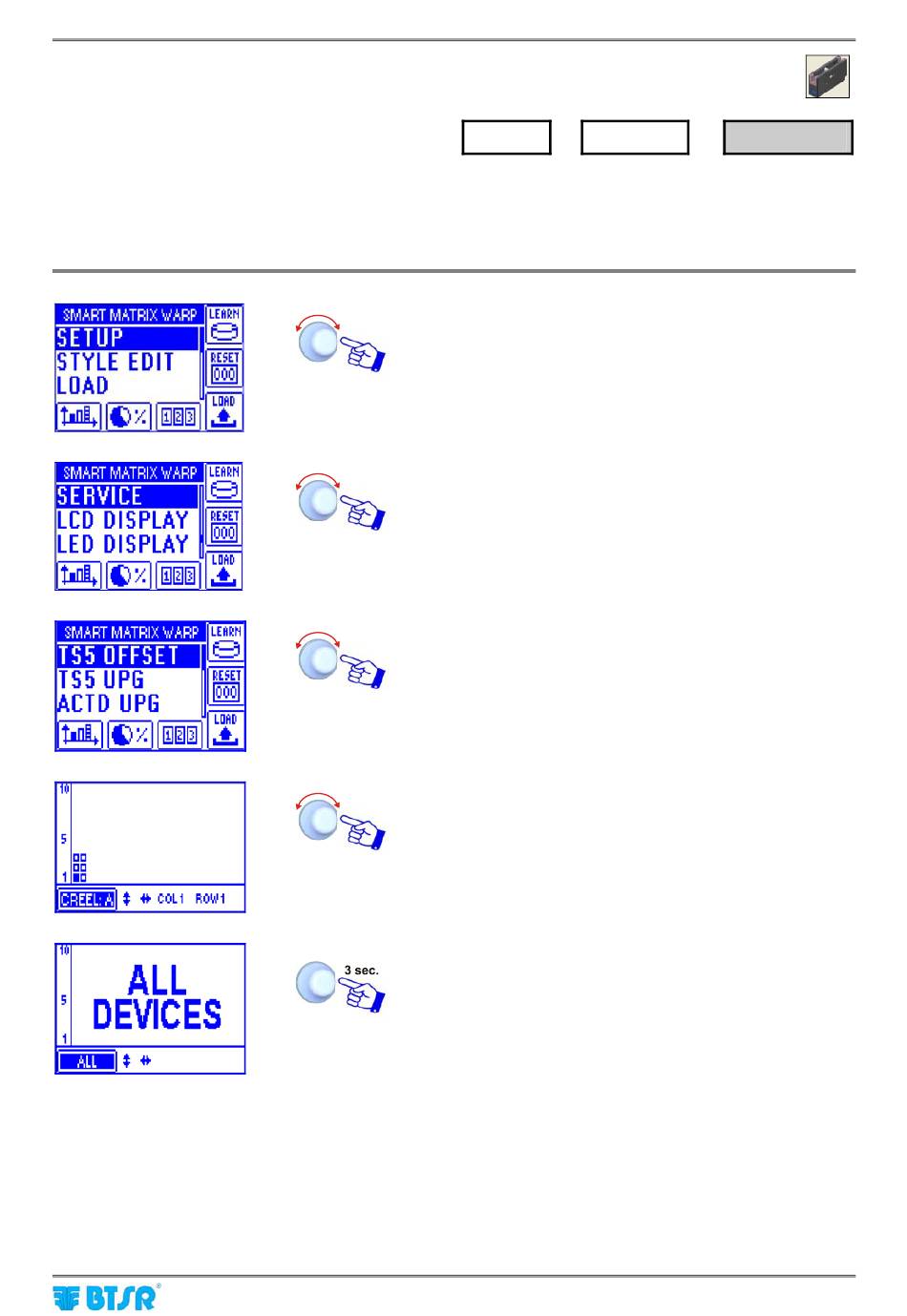

SETUP →
Enter the SETUP menu.
Select SERVICE.
Select TS5 OFFSET.
Select the creel and the desired sensor (double click on the
small square of the sensor within the map) or all the
sensors (ALL DEVICES).
To continue.
SMART MATRIX
Offset TS5/TS7
SERVICE → TS5 OFFSET
- 2-31 -
