2 Unit installation

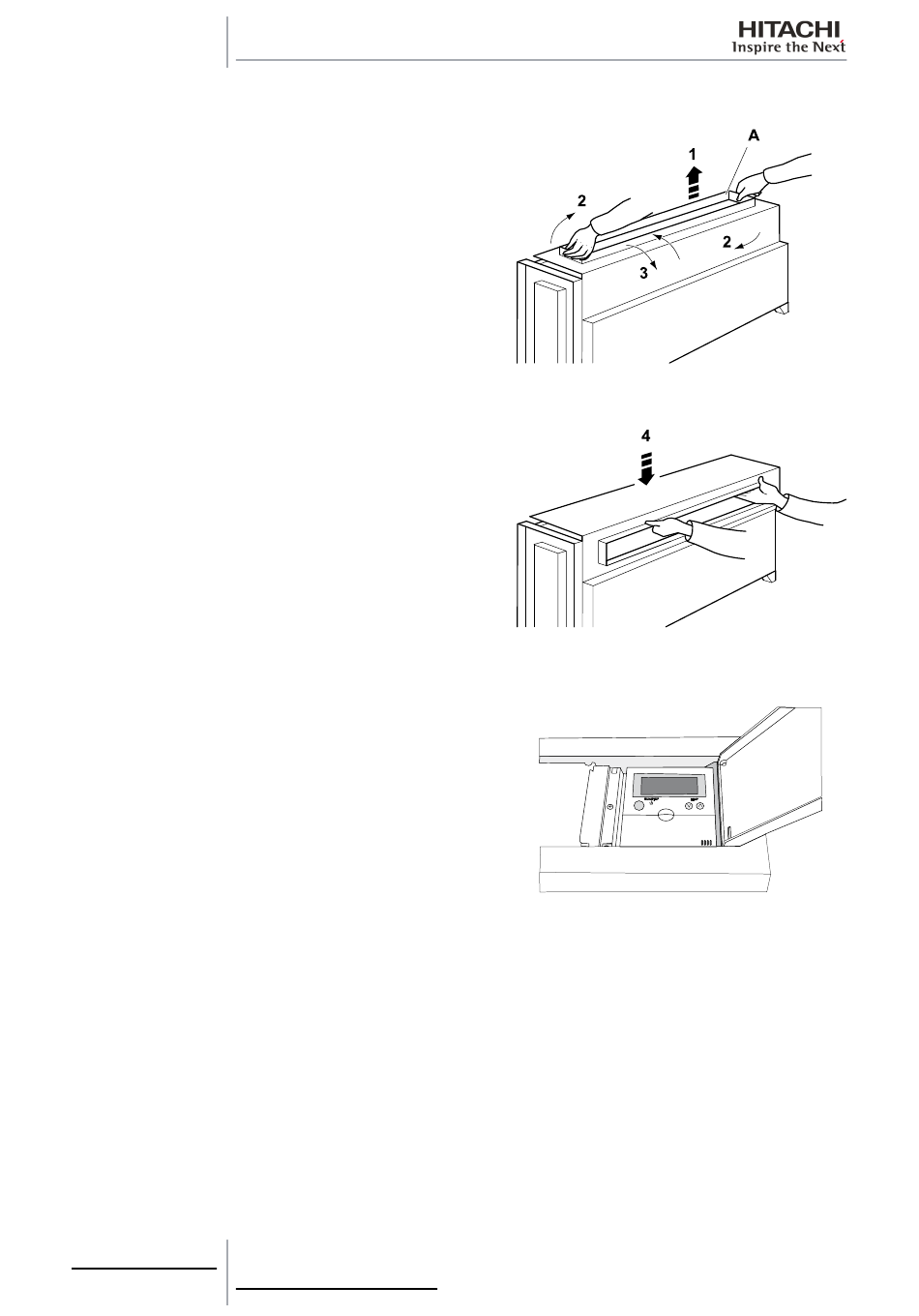

2.8.3 Change in the air outlet direction (RPFI units)
The air outlet direction of the unit can be modified to adapt it to
installation requirements, as shown in the illustration.
1. Lift air outlet -A-.
2. Turn the air outlet on itself until it is opposite its initial position.
3. Tilt the air outlet so that the nozzle is facing forwards.
4. Refit air outlet -A-.
2.8.4 RPF: Optional PC-ART remote control location
It is possible to install the PC-ART remote control below the plastic
cover, as shown in the figure.
60
SMGB0063 rev. 1 - 10/2010
