10 Servicing
N O T E
• RPK-(1.0/1.5)FSN(H)2M: 1 screw.
• RPK -2.0FSN2M: 3 screws.
• RPK-(2.5/4.0)FSN2M: 4 screws.
RPK-(1.0-2.0)FSN(H)2M
Nº
1 AS motor
2 AS motor set screw

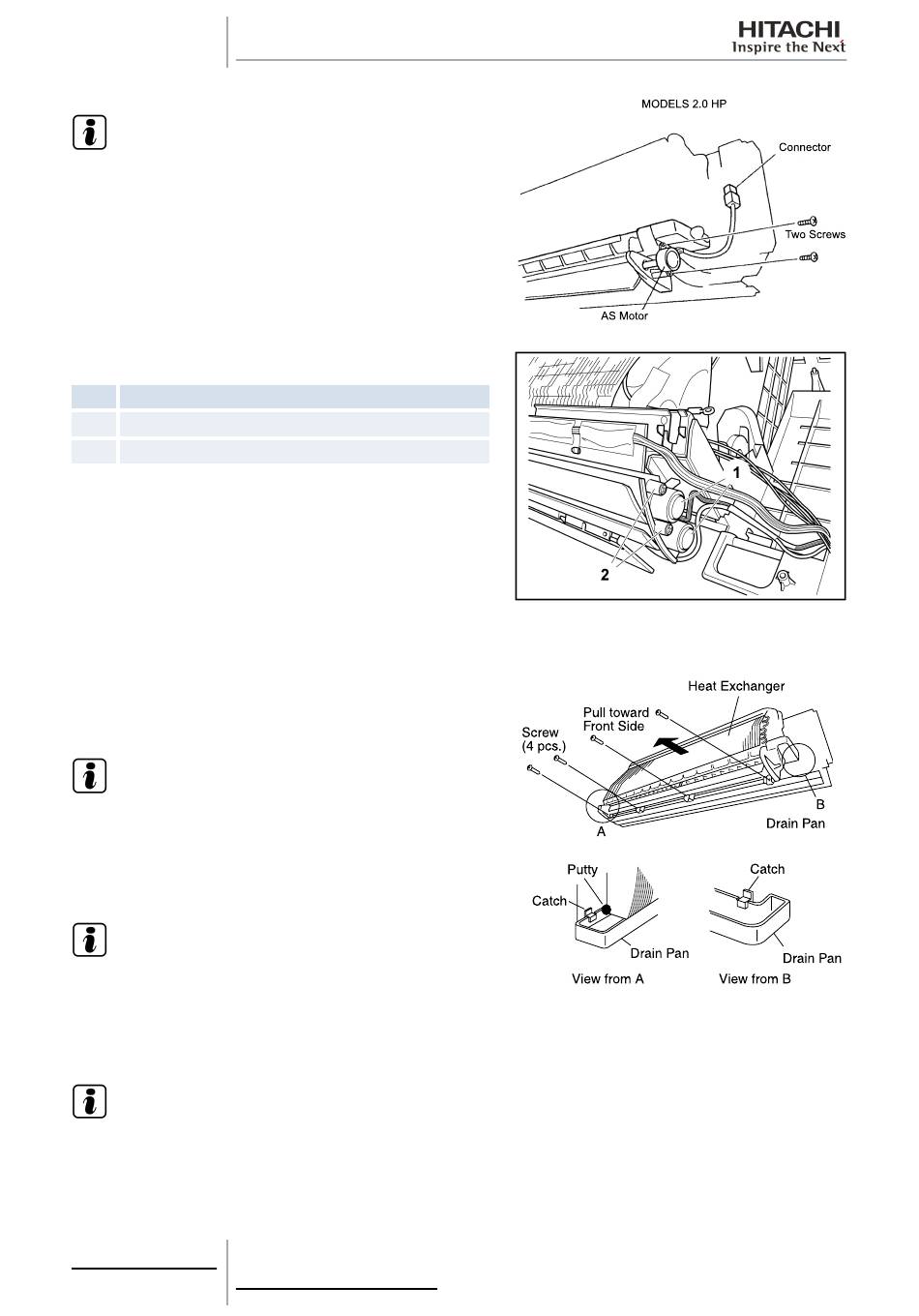

10.8.11 Removal of the drain pan

RPK-(2.5-4.0)FSN2M:
Remove the front panel as indicated in Section
panel, see on page 323.
N O T E
Remove the right-hand cover instead of the front panel on
RPK-(2.5-4.0)FSN2M models.
Remove the electrical box as indicated in section
electrical box panel, see on page 329.
N O T E
This is not necessary on RPK-(2.5-4.0)FSN2M models.
Remove the drain pan from the unit by releasing the hooks on the
left side of the pan and releasing the hook (C) while pulling the right
side of the air panel forwards.
N O T E
Remove the screws securing the drain pan to the bottom and remove the drain pan on RPK-(2.5-4.0)FSN2M models.
340
SMGB0063 rev. 1 - 10/2010
