10 Servicing

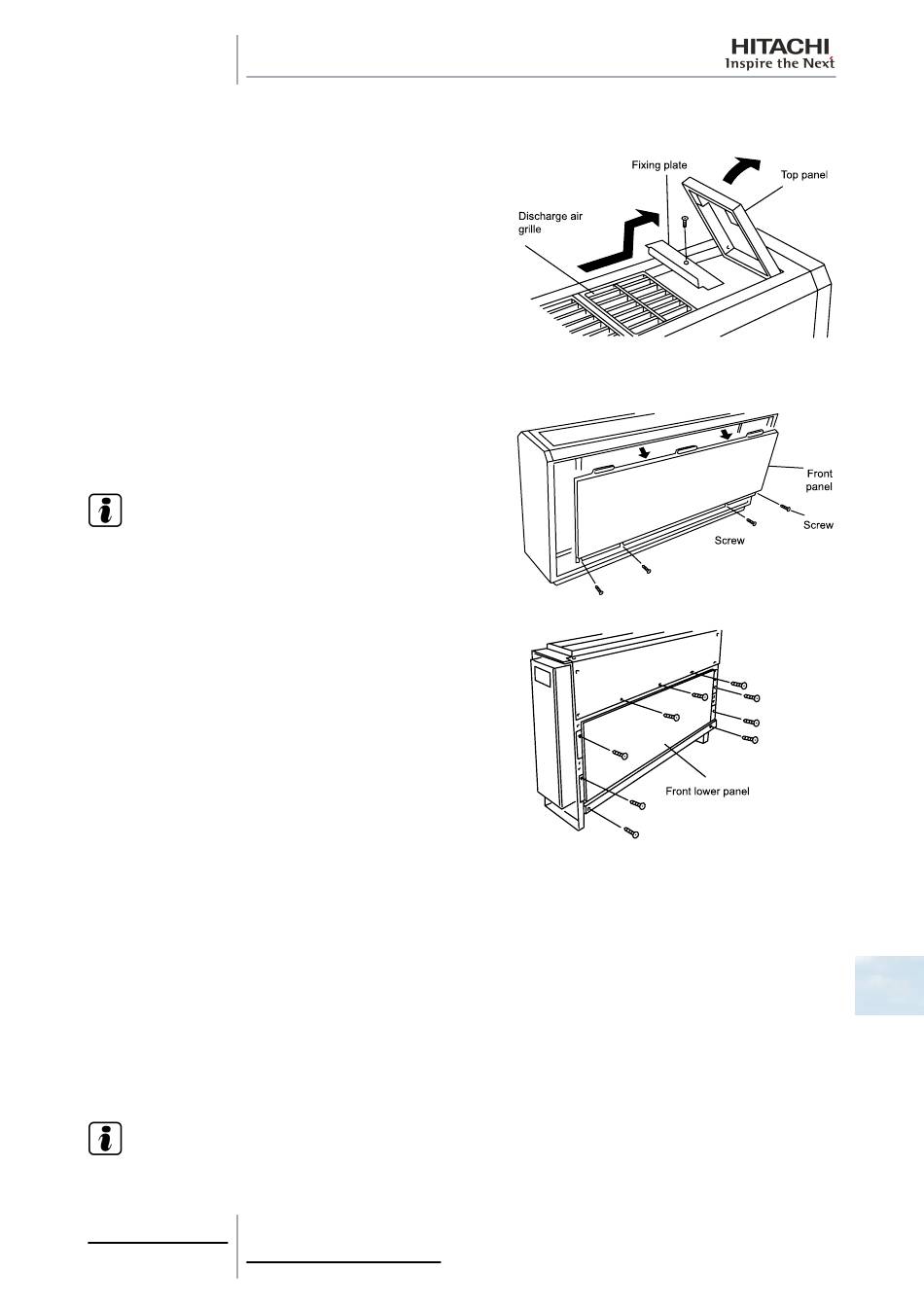

10.9.3 Removal of the air outlet grille

RPF-(1.0-2.5)FSN2E
Remove the screw holding the securing plate.
Open the upper panel so that it is vertical.
Slide and remove the air outlet grille.

10.9.4 Removal of the front panel

Remove the central panel air filter in line with the instructions given
in chapter Removal of the air
Remove the screws from the lower part of the front panel.
N O T E
• RPF-(1.0-2.5)FSN2E: 4 screws.
• RPFI -1.0FSN2E: 9 screws.
• RPFI -1.5FSN2E: 10 screws.
Remove the 11 set screws and remove the front panel.

10.9.5 Removal of the fan motor

Remove the air inlet grille as indicated in chapter
Remove the air filter as indicated in section
Remove the four set screws from the fan motor assembly plate and remove it.
Disconnect the wiring from the fan motor connector. Remove the wiring board and the connector.
Remove the cover by pressing the four attachment points inwards.
Loosen the bolts using a wrench.
Remove the securing plate.
Remove the fan motor by sliding it backwards.
N O T E
Be careful when releasing the fan motor, as it could fall.
347
SMGB0063 rev. 1 - 10/2010
filter, see on page 346.
Removal of the air inlet
Removal of the air
grille, see on page 346.
filter, see on page 346. 10
