2 Unit installation

2.11.2 Filters

¿ Filter box (B-23H4)

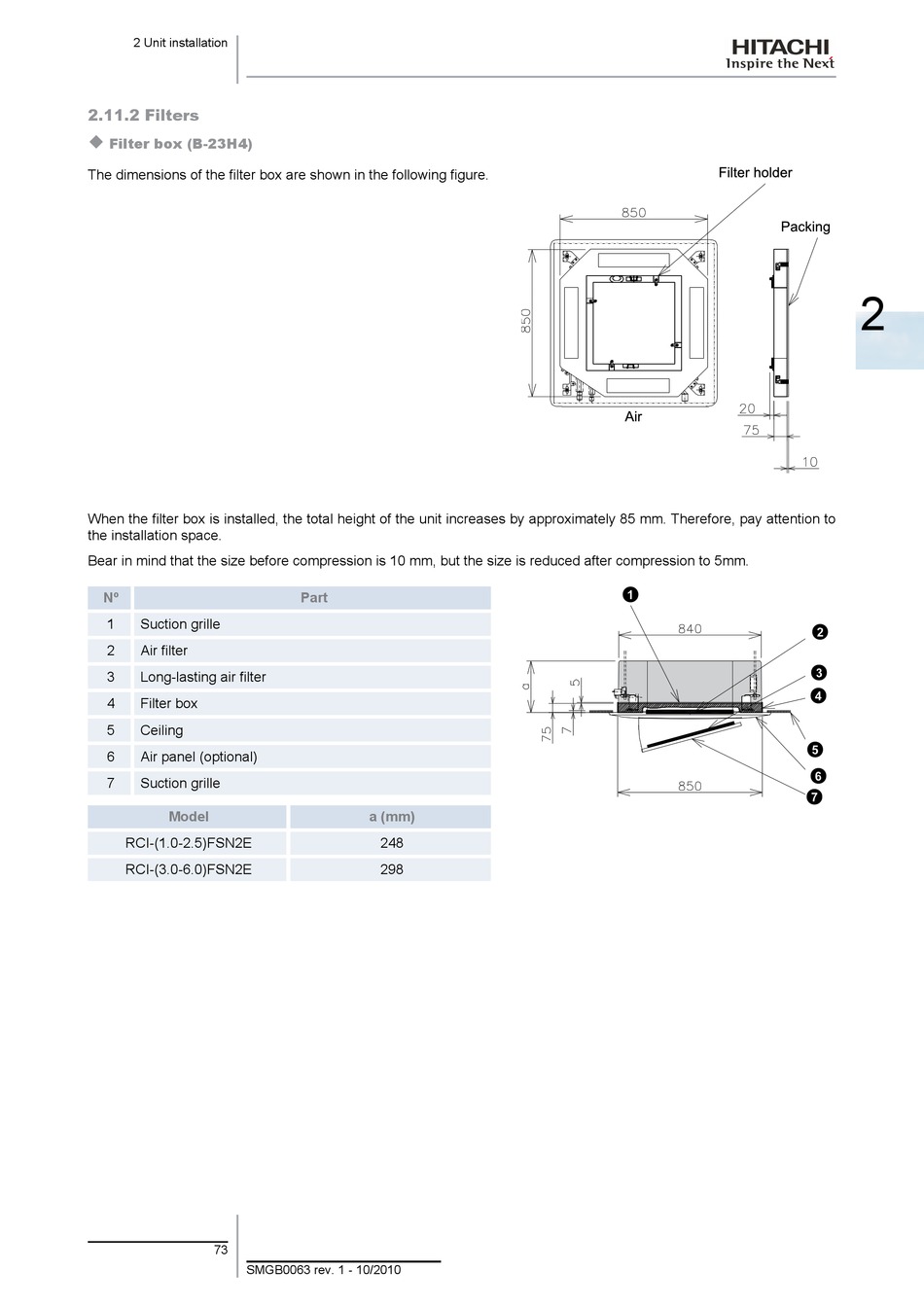

The dimensions of the filter box are shown in the following figure.
When the filter box is installed, the total height of the unit increases by approximately 85 mm. Therefore, pay attention to
the installation space.
Bear in mind that the size before compression is 10 mm, but the size is reduced after compression to 5mm.
Nº
1 Suction grille
2 Air filter
3 Long-lasting air filter
4 Filter box
5 Ceiling
6 Air panel (optional)
7 Suction grille
Model
RCI-(1.0-2.5)FSN2E
RCI-(3.0-6.0)FSN2E
73
SMGB0063 rev. 1 - 10/2010
Part
a (mm)
248
298
