2.5.4 Maintenance of the suction air filter

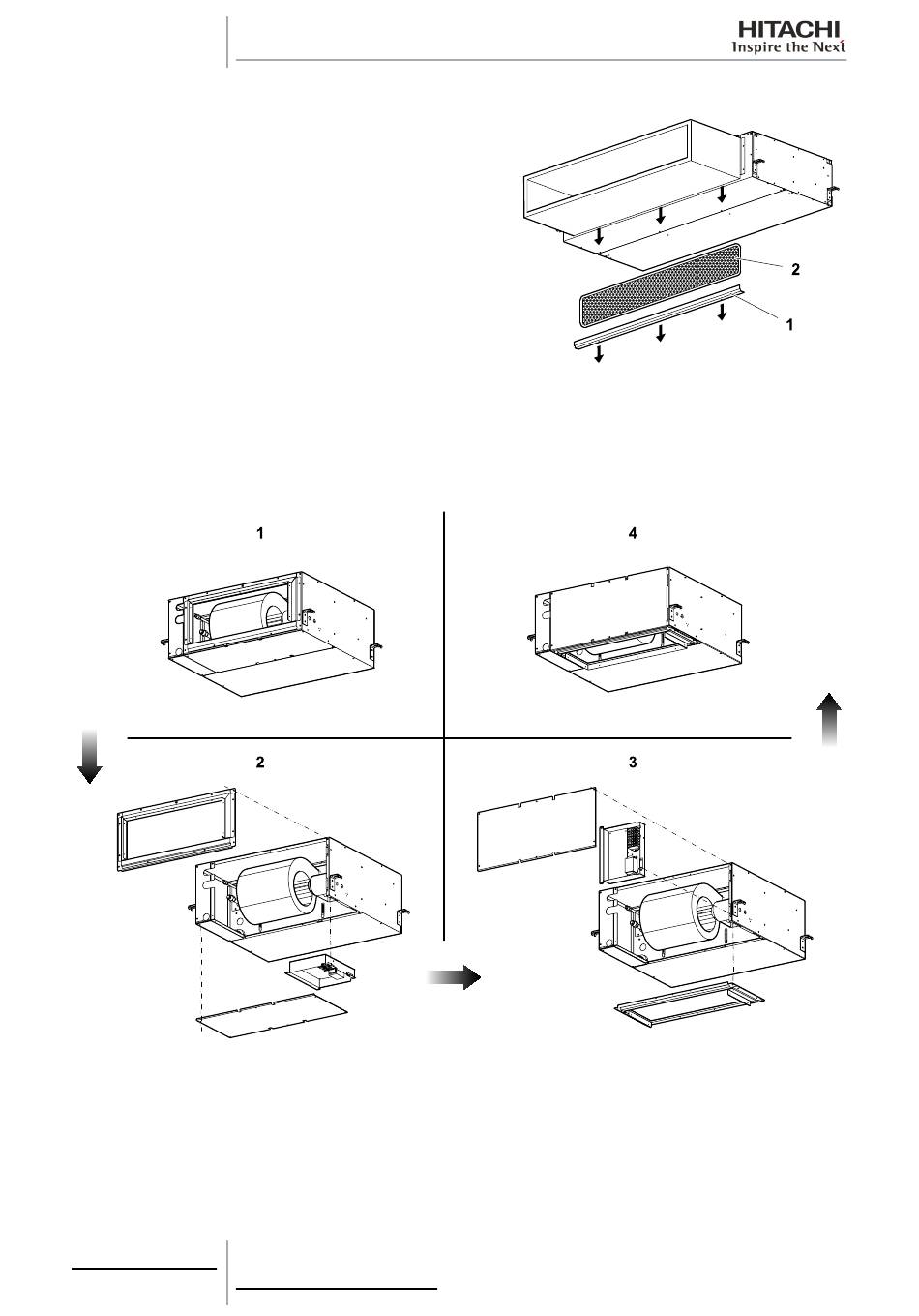

Simply remove the set screws from the bar -1- (RPIM units: 2
screws, RPI units: 3 screws) and remove it to pull the filter
downwards.

2.5.5 Change in the air suction direction

RPIM-(0.8-1.5)FSN2E (-DU)
Change in position of the air inlet on RPIM-(0.8-1.5)FSN2E(-DU) models: the position of the air inlet and, therefore, its
direction can be modified by changing the position of the rear cover, as shown in the illustrations.
1. Initial position of the air inlet (factory-supplied).
2. Remove the front and rear covers and the electrical box from the unit.
3. Switch the position of the front and rear covers. Change the position of the electrical box on the unit as indicated in the
illustration.
4. Final position of the air inlet.
