2 Unit installation
Check that the floor surface where the unit is to be installed is completely horizontal.
N O T E
Bear in mind the air distribution from the unit to the room and select a suitable place for an even air temperature
in the room.
Install a service hatch near the pipe connection area and electrical
junction box for installation and maintenance work.
Model
RPF(I)-1.5FSN2E
RPF(I)-2.0FSN2E
RPF(I)-2.5FSN2E
Check that the drain hose can be installed maintaining the necessary down-slope.
Installation
C A U T I O N
The place where the indoor unit is to be installed must be a flat surface with enough space to fully house the unit.
The weight of the unit must be evenly distributed over the surface.
Handle and position the unit carefully.

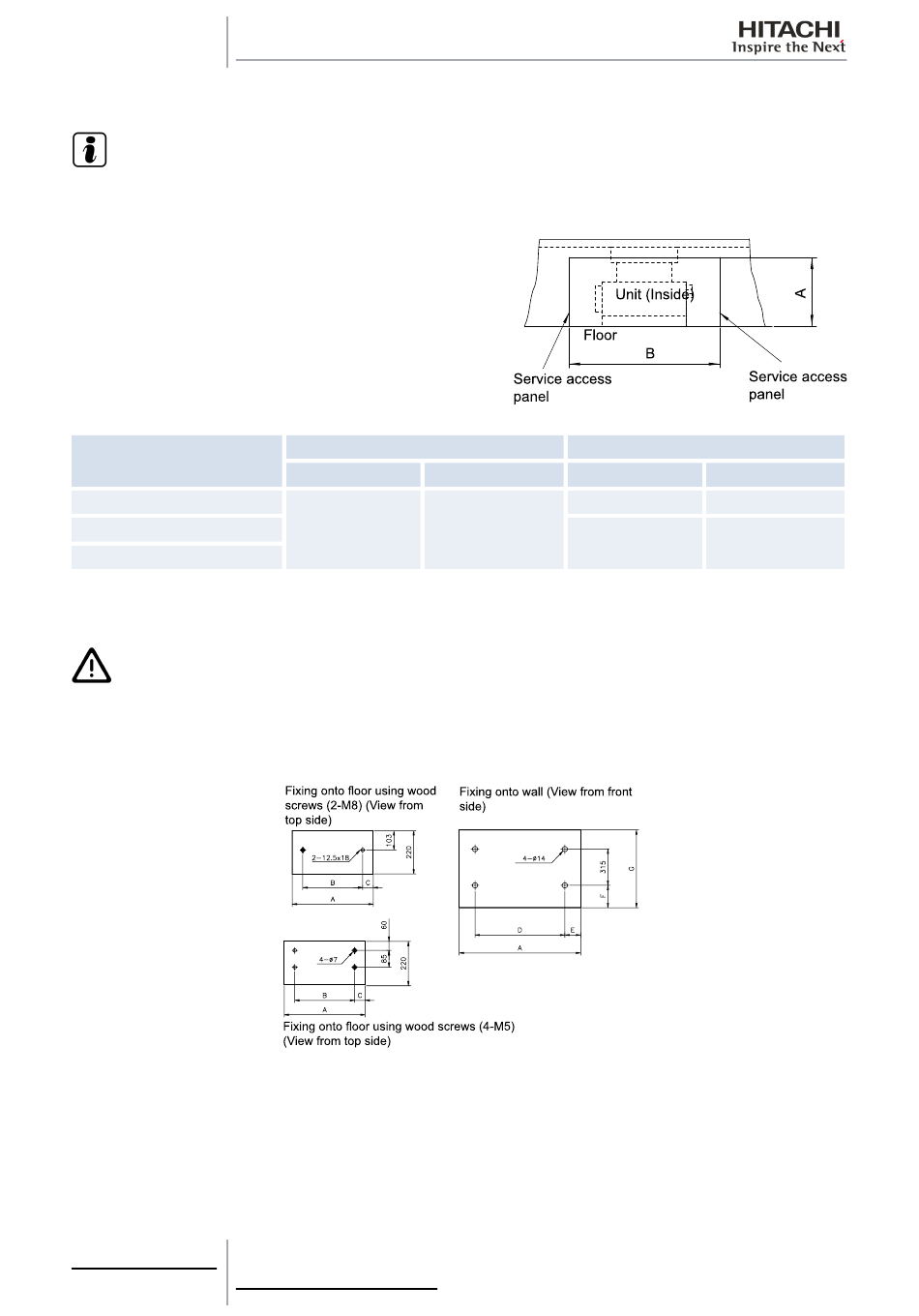

Check that the attachment position (in mm) of the unit is as indicated in the figure.
58
SMGB0063 rev. 1 - 10/2010
A (mm)
RPF RPFI
630 620
B (mm)
RPF RPFI
1479 1359
1729 1609
