4 Electrical wiring

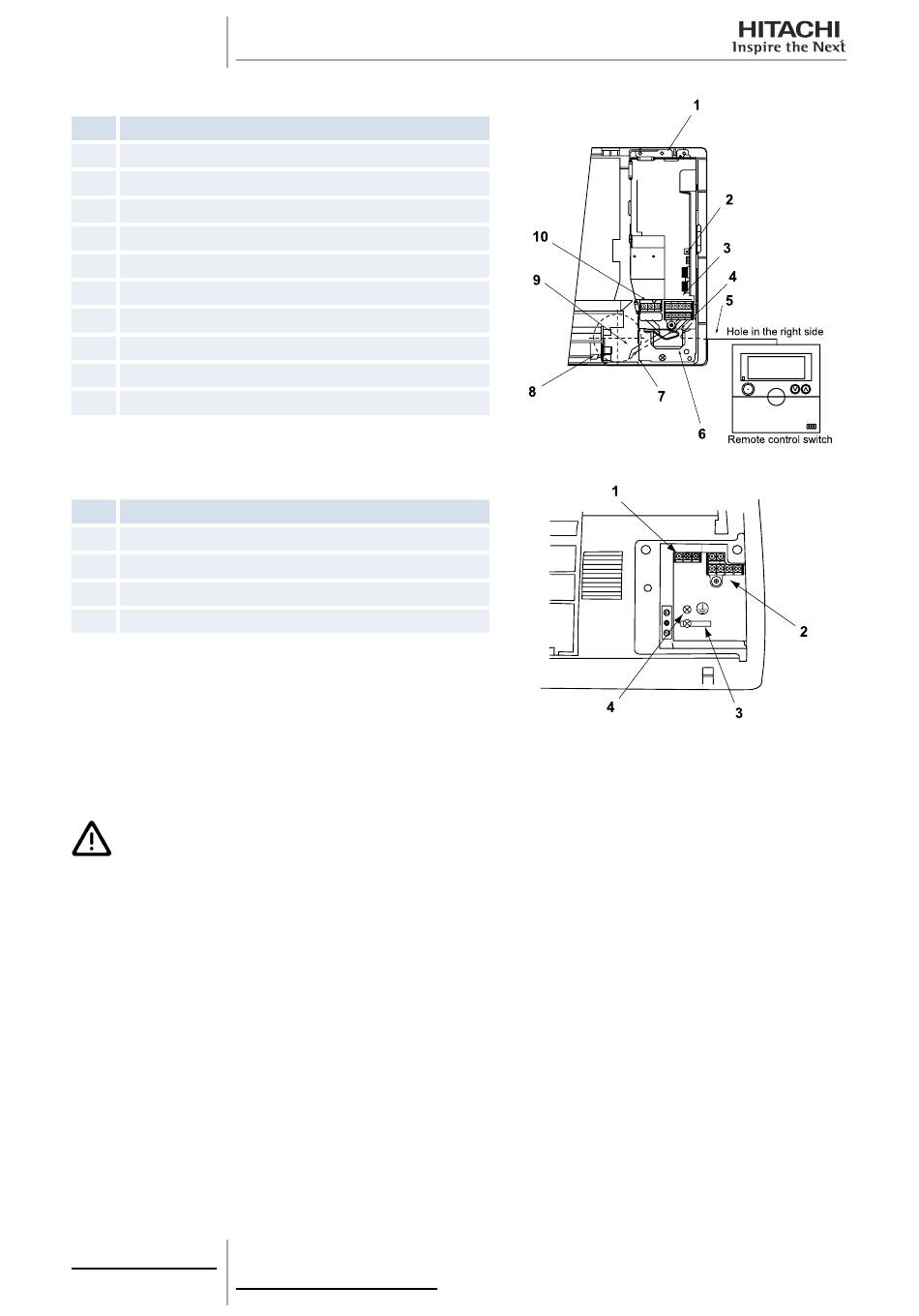

RPK-2.0FSN2M terminal board connections
Nº
1 Electrical box
2 Connector (CN13)
3 Remote control wiring
4 Terminal strip (TB2)
5 Cable secured with the tie
6 Hole for the electrical box
7 Operating line
8 Hole for gas pipe and wiring installation
9 Electricity supply line
10 Terminal strip (TB1)
RPK-(2.5-4.0)FSN2M terminal board connections
Nº
1 Terminal strip (TB1)
2 Terminal strip (TB2)
3 Cable secured with the tie
4 Earthing screw
Test runs
C A U T I O N
• Be careful during the test runs, as some of the safety functions remain disabled: the units operate for two hours
without switching off via the thermostat. The three-minute compressor protection is not enabled during the
test.
• Secure the rubber bushes to the panel using adhesive when the outdoor unit ducts are not used.
• The compressor remains at a standstill during forced stoppage.
