2 Unit installation
Then lift the panel slightly to release the combined parts (four) from
the top of the front panel.
Fitting the front panel
2
First fit the top of the front panel (three parts). Then secure the hook
on the bottom central part.
Check that there are no gaps between the front panel and the unit
casing.
N O T E
There are several spacer stops inside the front panel.

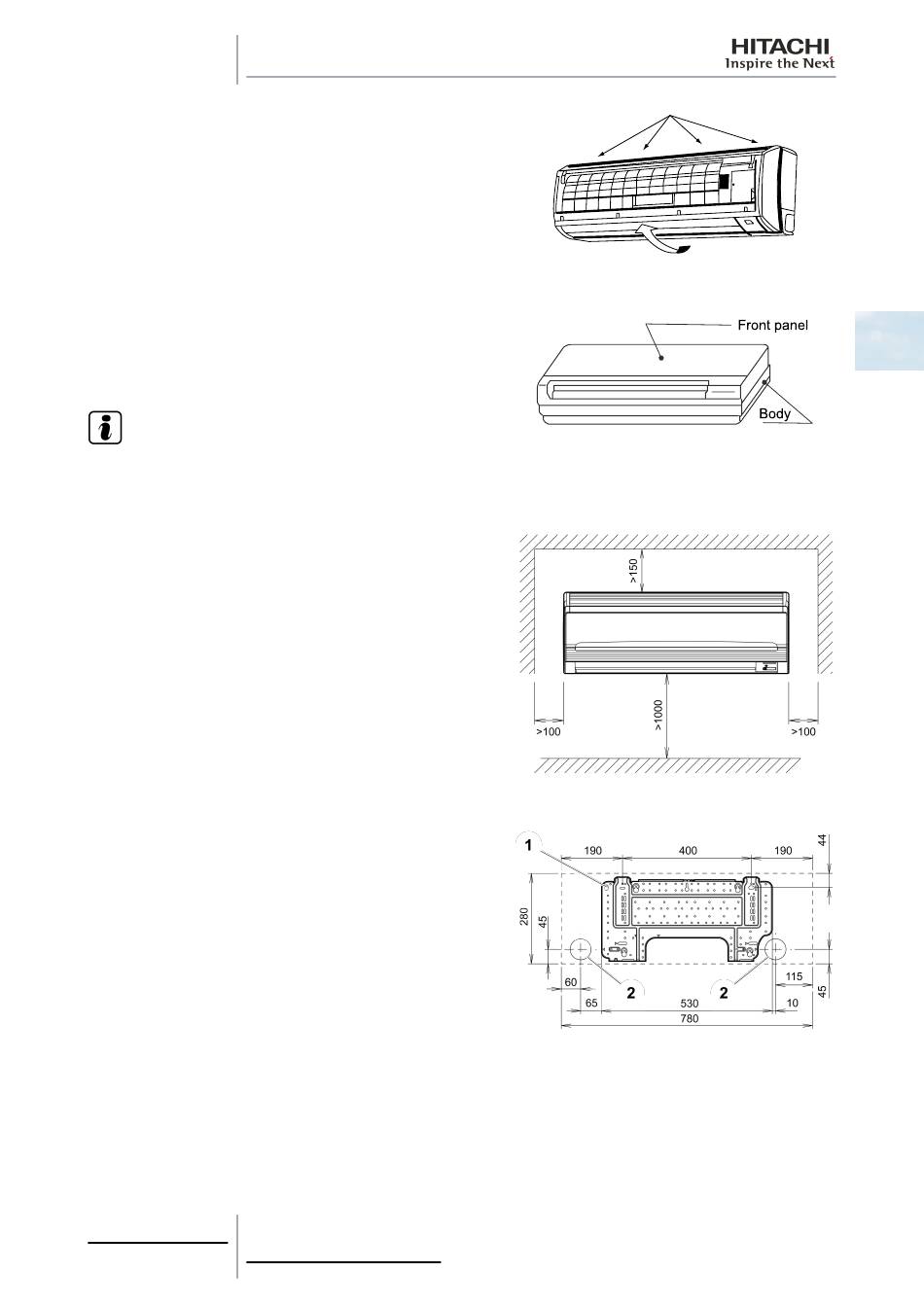

2.7.3 Mounting bracket dimensions

RPK - (1.0/1.5)FSN(H)2M unit suspension bracket
1. Outer contour of the unit.
2. Hole for gas pipes and connections (depending on the pipe outlet
direction).
The RPK - (1.0-1.5)FSN(H)2M models (with the expansion valve
on the outside of the unit) may cause gas refrigerant circulation
noise. Install the pipe outlet from the rear right instead of from the
rear left wherever possible.
55
SMGB0063 rev. 1 - 10/2010
